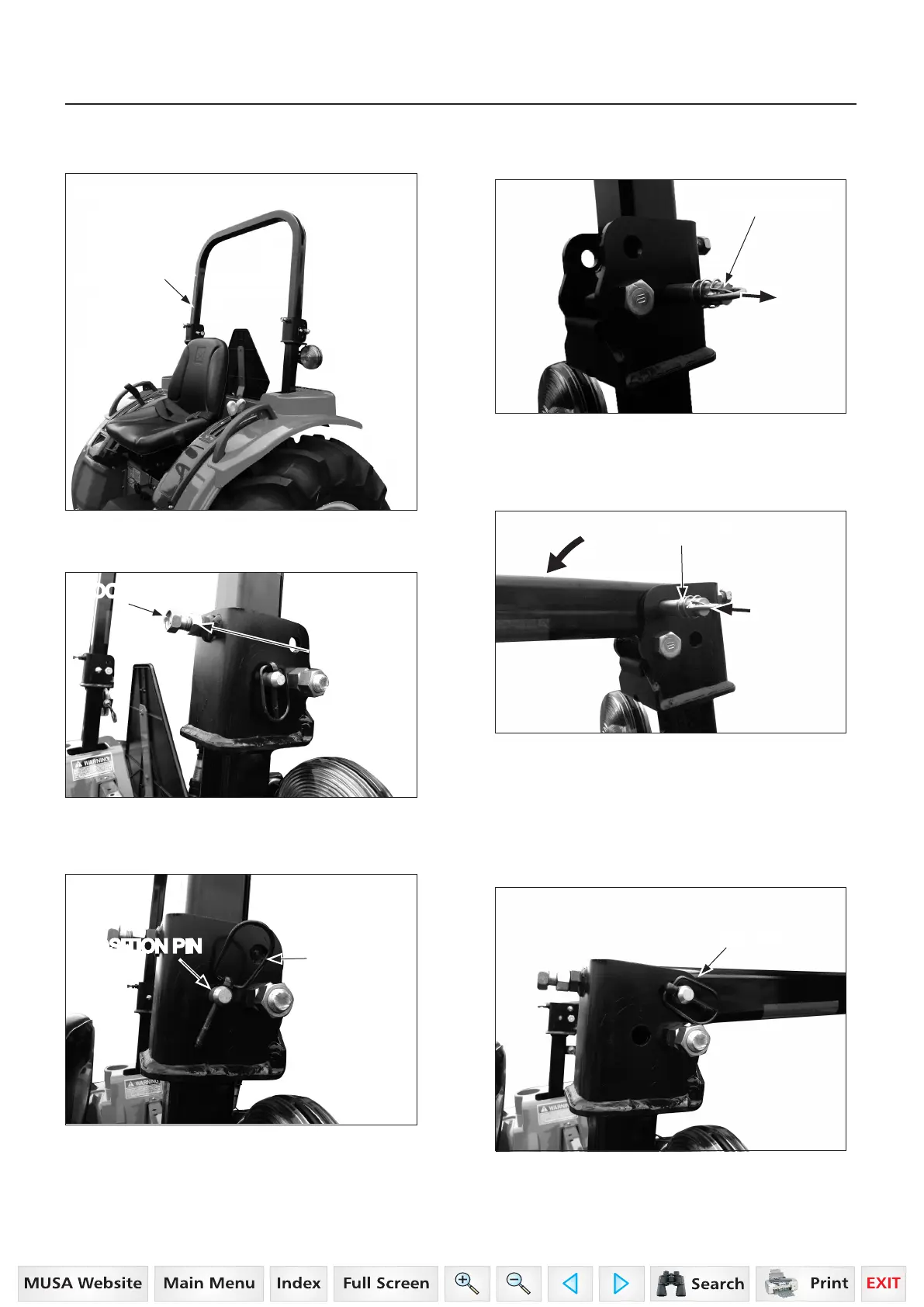

SAFETY/DECALS
13
While holding the ROPS bar CAREFULLY
remove the position pins.
Holding and Adjustment
Remove the lock pin from the position pin.
Loosen the lock nut and the lock bolt.
LOCK NUT
LOCK BOLT
POSITION PIN
POSITION PIN
LOCK PIN
Down the ROPS bar slowly for the second
position.
While holding the ROPS bar carefully install
the position pins.
REGULAR POSITION
Install the lock pin to the position pin.
ROPS BAR
STEP1
STEP2
STEP4
STEP3
STEP5
POSITION PIN
LOCK PIN
