ADJUSTMENTS
FRONTTOBACKADJUSTMENT
For best cutting results, the cutter deck should be
parallel to the ground. To check parallel adjustment,
measure the distance from the bottom edge of the
deck in both the front and rear of the deck. This
adjustment is best done while the tow vehicle and
mowerareattachedtogether.

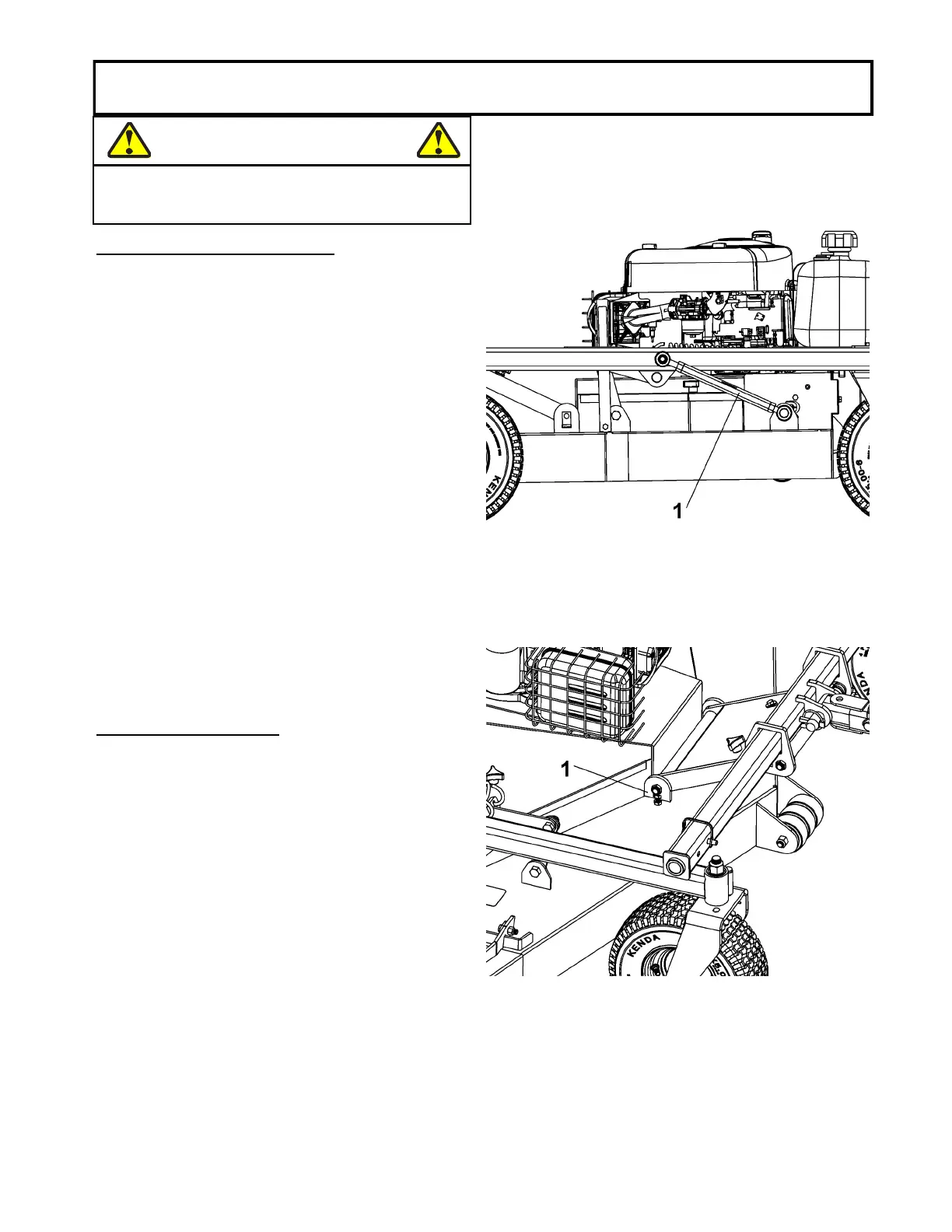

Adjust as needed by turning the rod end assembly
(item1).
Make sure to have the same adjustment on both
sidesofthemower.
LATERALADJUSTMENT
Themowermustcutevenlyontherightandleftside.
If this is not the case, adjust the position of the
actuatortoadjustthis.
Ifthemowerislowerontherightsidethanontheleft
side,adjustthearmsupport(item1)withthetopand
bottomnut..
WARNING
STOP THE ENGINE AND DISCONNECT THE
SPARK PLUG CABLE BEFORE DOING ANY
ADJUSTMENTSONTHEMOWER
