■ THE PTO MONITOR LAMP
On the dash panel indicates the state of the PTO shaft.
1. If the monitor glows: The PTO is rotating.
2. If the monitor is off: The PTO is off.

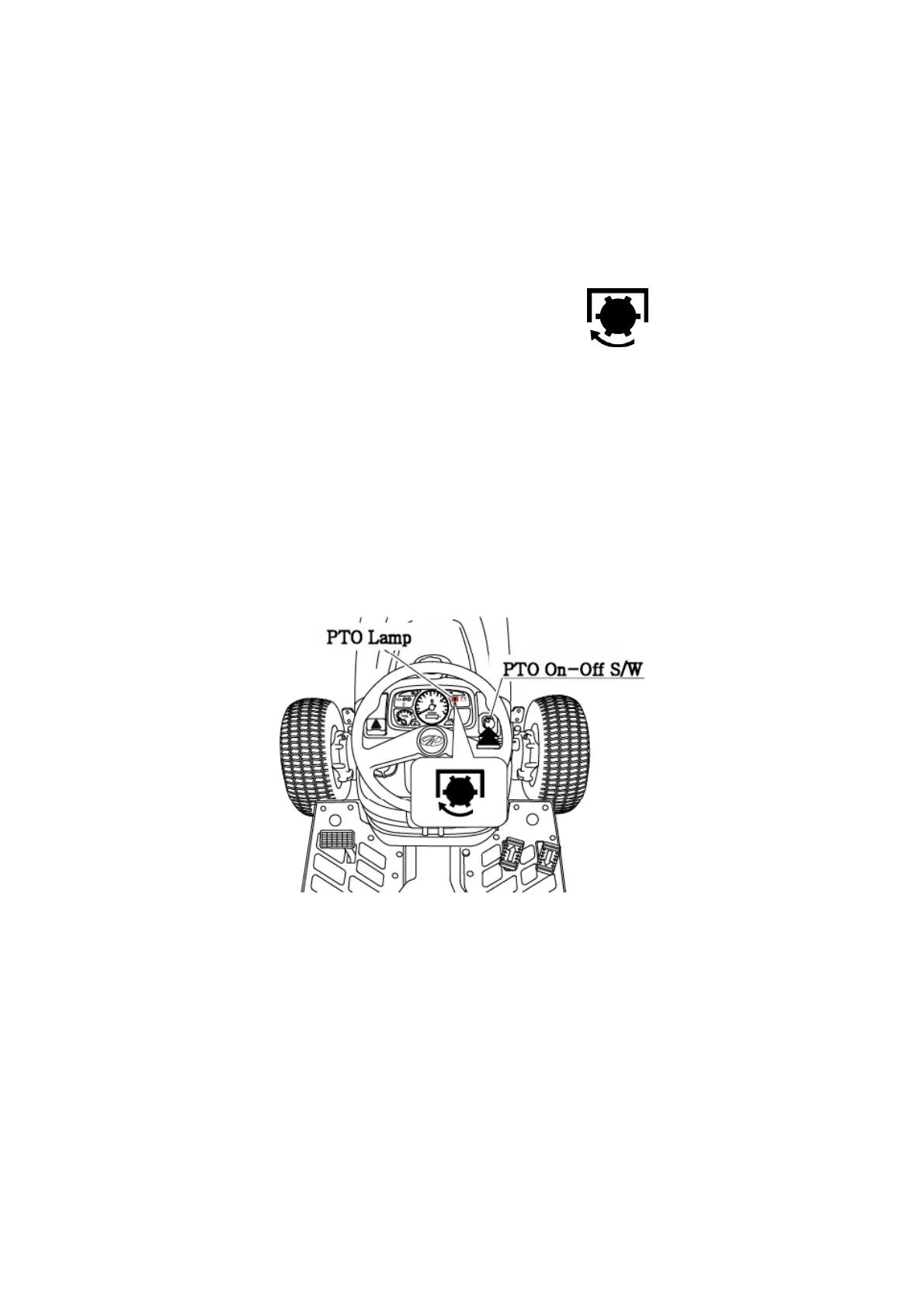

PTO monitor Lamp
■ PTO ON/OFF Switch
PTO ON/OFF switch is situated on the right hand side on the instrument panel and can
be identified easily with its built in yellow colored indicator.
When the switch is pushed down to start the PTO indicator glows to indicate that the
switch and the PTO are in ON position.
If the switch is pushed down and turn counter clock wise the indicator goes off signaling
The PTO shaft will not rotate if switch is in OFF position. The PTO shaft will not
rotate if clutch pedal is pressed.
that the PTO is OFF.
32
