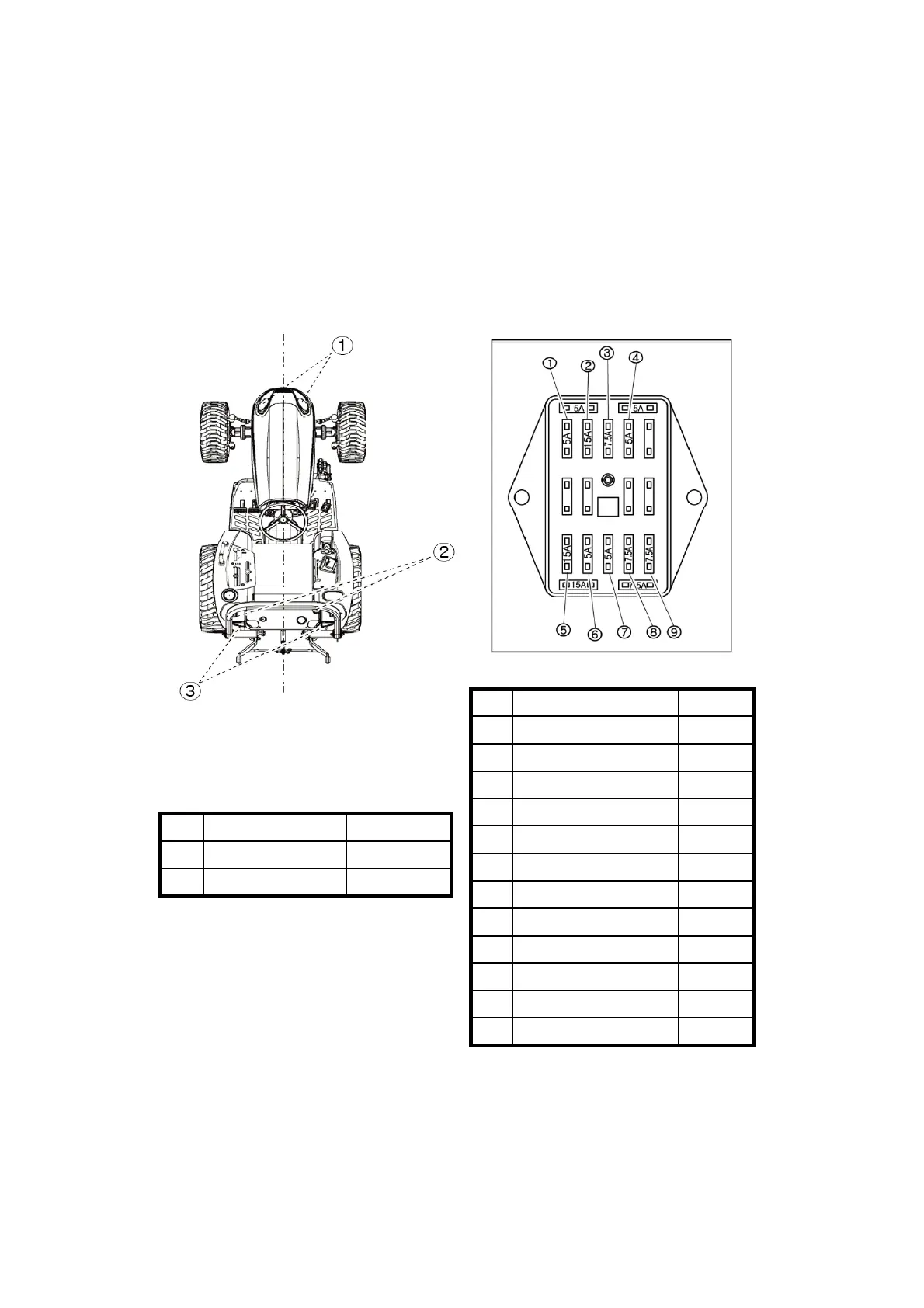

► Drawing for fixing position of the fuse
► Wiring diagram of the electric instrument
* Main Fuse
1
HAZARD 5A
2
COUPLER 15A
3
EG STOP, PTO 7.5A
4
GLOW TIMER 5A
5
LIGHT, HORN 15A
6
PANEL 5A
7
TURN SIGNAL 5A
8
WORKING LIGHT 7.5A
9
STOP LAMP , CRUISE 7.5A
10
①
Head Lamp
12V/ 55W
②
Combination Lamp
12V/ 21W/ 5W
③
Stop Lamp
12V/ 21W/ 5W
10
11
12
13
83
