Mahindra ROXOR User Manual

13 Electrical Distribution
Main Power Distribution Center
Fuse/
Relay
Circuit
Fuse/
Relay
Circuit
F1 Main PDC Fuse (60A) F16 Empty
F2 Starter Solenoid (30A) F17 Empty
F3 ECU Auto Shut Down (30A) F18 Empty
F4 IP PDC MINI Fuse (40A) F19 Empty
F5 IP Accessories (40A) F20 Empty
F6 Empty F21 Empty
F7 ECU Power (20A) F22 Empty
F8 Engine Accessories (15A) R1 Engine Auto Shut Down
F9 Brake Pedal (10A) R2 Starter Solenoid
F10 Empty R3 Fuel Feed Pump
F11 High Beams (20A) R4 High Beams
F12 Front LED Lights (20A) * R5 Empty
F13 Reverse Lights (5A) R6 Empty
F14 Front Fender LEDs (5A) * R7 Front LED Lights *
F15 FuelFeed Pump (15A) R8 See IP-PDC
* Indicates a circuit dedicated for a factory installed option.

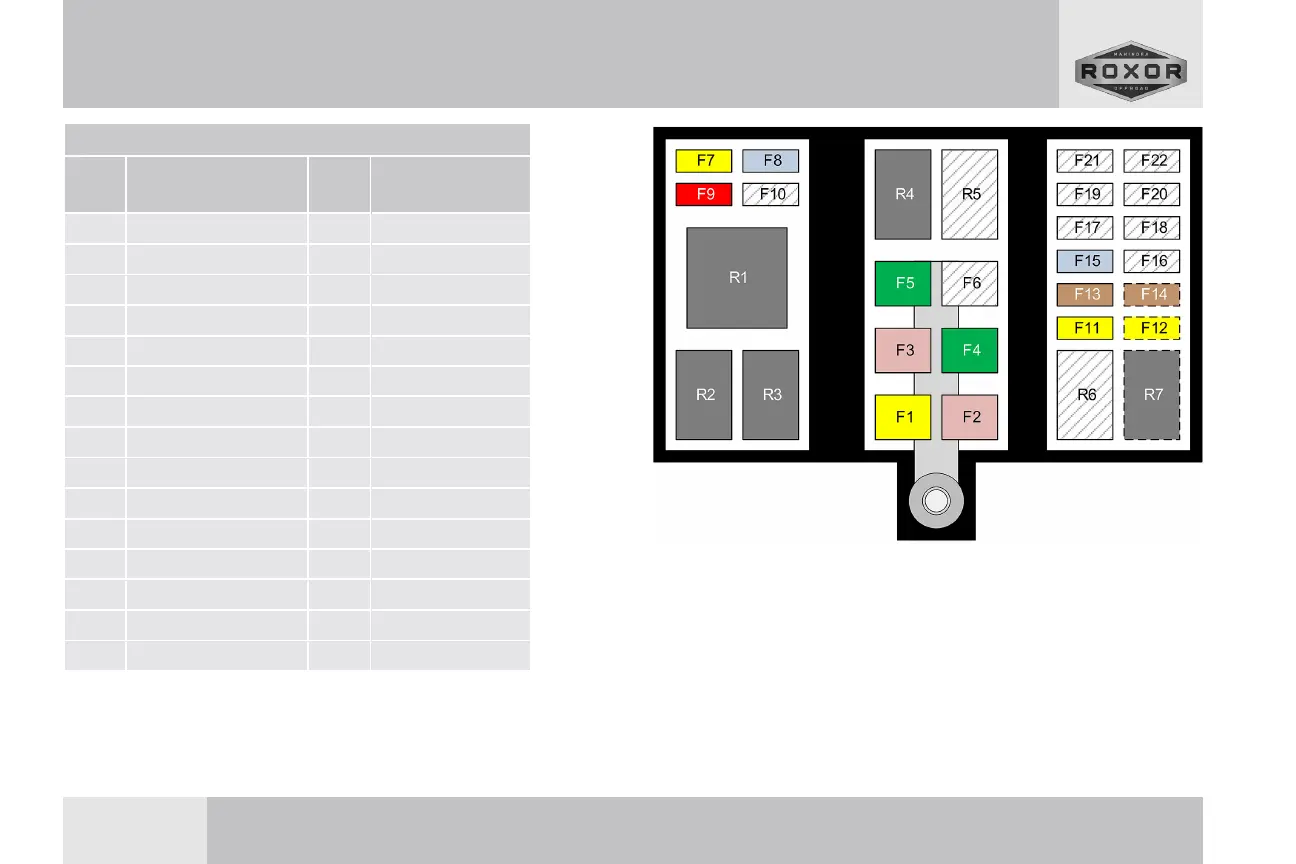

Figure 2. Main Power Distribution Center
