23 Maintenance Procedures
Check Transfer Case Oil Level & Leak Check
Before checking the transfer case oil, it should be warmed up by driv-
ing the ROXOR for 10-15 minutes.
Only perform when the ROXOR is on level ground or support. Do not
use an impact wrench to remove the transfer case oil level plugs.
This may damage the threads in the transfer case resulting in a
leak.
Maintenance Interval – Check regularly, replace every 300 hours, 36
months, 9,000 miles (15,000 Km)
Fluid Spec. – GL-4 SAE 80W90
Capacity – 1.7 Quarts (1.6 Liters)
1. Clean the transfer case oil level plug and surrounding area.
(see Figure 15)
2. Remove the transfer case oil level plug and check whether
oil is dripping out.
3. If oil is not dripping out, oil level must be below the required
level.
4. Add specified oil to bring it up to the level that it starts drip-
ping out.
5. Install and tighten the oil level plug.

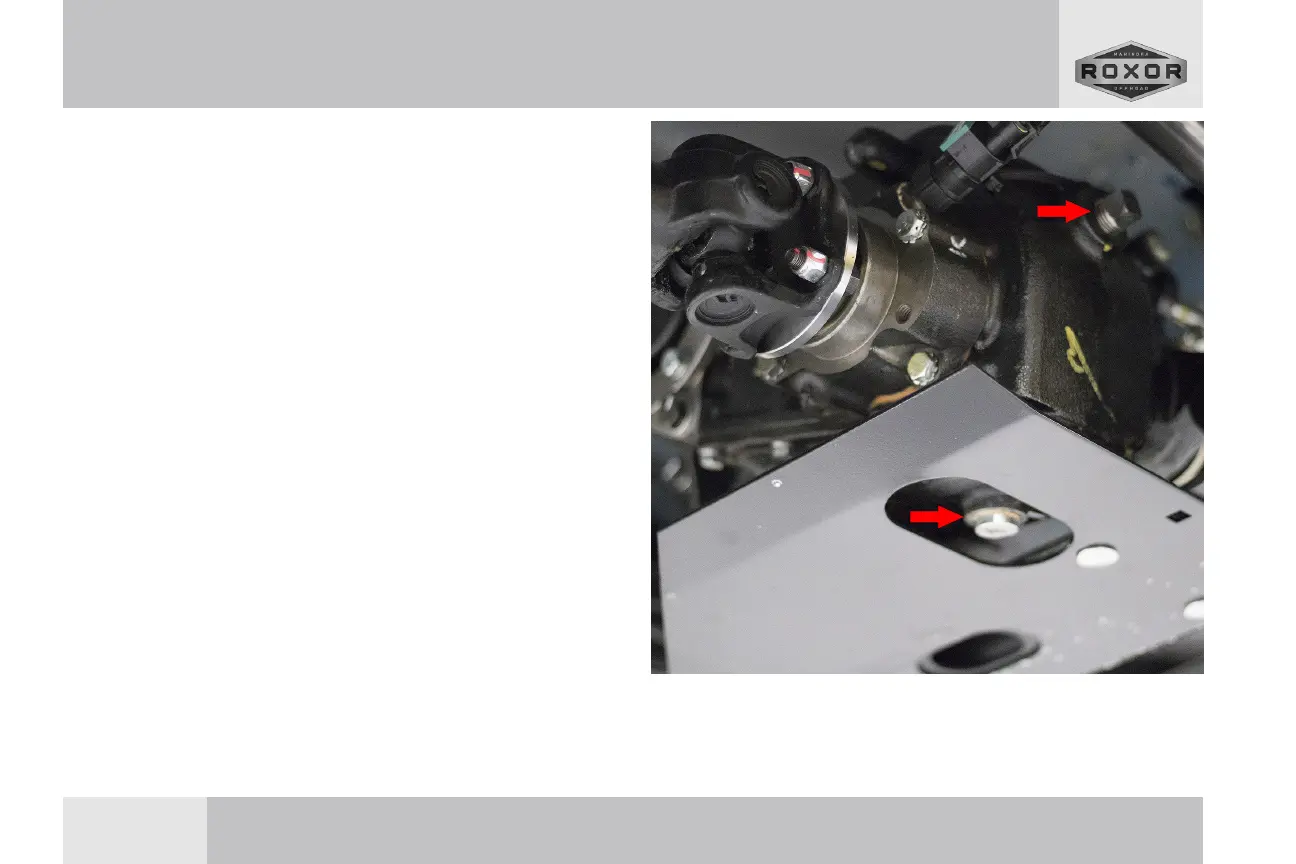

Figure 15. Transfer Case Oil Level Plug
64 © 2018 Mahindra Vehicle Sales and Service, Inc. All Rights Reserved.
