1.3 Using the measuring module
!
Measuring module N 1700 is not included with delivery of the C 1202.
A measuring module is required to operate the C 1202.
– Slide measuring module N 1700 with
bus termination module onto the rail
as far as the stop.
– Push the two red slide catches down
so that the measuring module and
the bus termination module cannot
come out accidentally.
Measuring module N1700 is re-
moved in the reverse order.
Compatible N 1700 measuring modules:
5331120 Millimar N 1702 M Module for 2 inductive probes
5331121 Millimar N 1702 T Module for 2 inductive probes
5331122 Millimar N 1702 U Module for 2 inductive probes
5331125 Millimar N 1702 M-HR Module for 2 inductive probes
5331161 Millimar N 1702 Vss Module for 2 incremental probes
5331150 Millimar N 1701 PM-2500 Module for 1 pneumatic measuring instrument
5331151 Millimar N 1701 PM-5000 Module for 1 pneumatic measuring instrument
5331152 Millimar N 1701 PM-10000 Module for 1 pneumatic measuring instrument
5331155 Millimar N 1701 PF-2500/5000 Module for 1 pneumatic measuring instrument
5331156 Millimar N 1701 PF-PF25./50. 4-J Module for 1 pneumatic measuring instrument
5331157 Millimar N 1701 PF-10000 Module for 1 pneumatic measuring instrument
Up to two N 1701 PM and N 1701 PF measuring modules can be used at the same time.

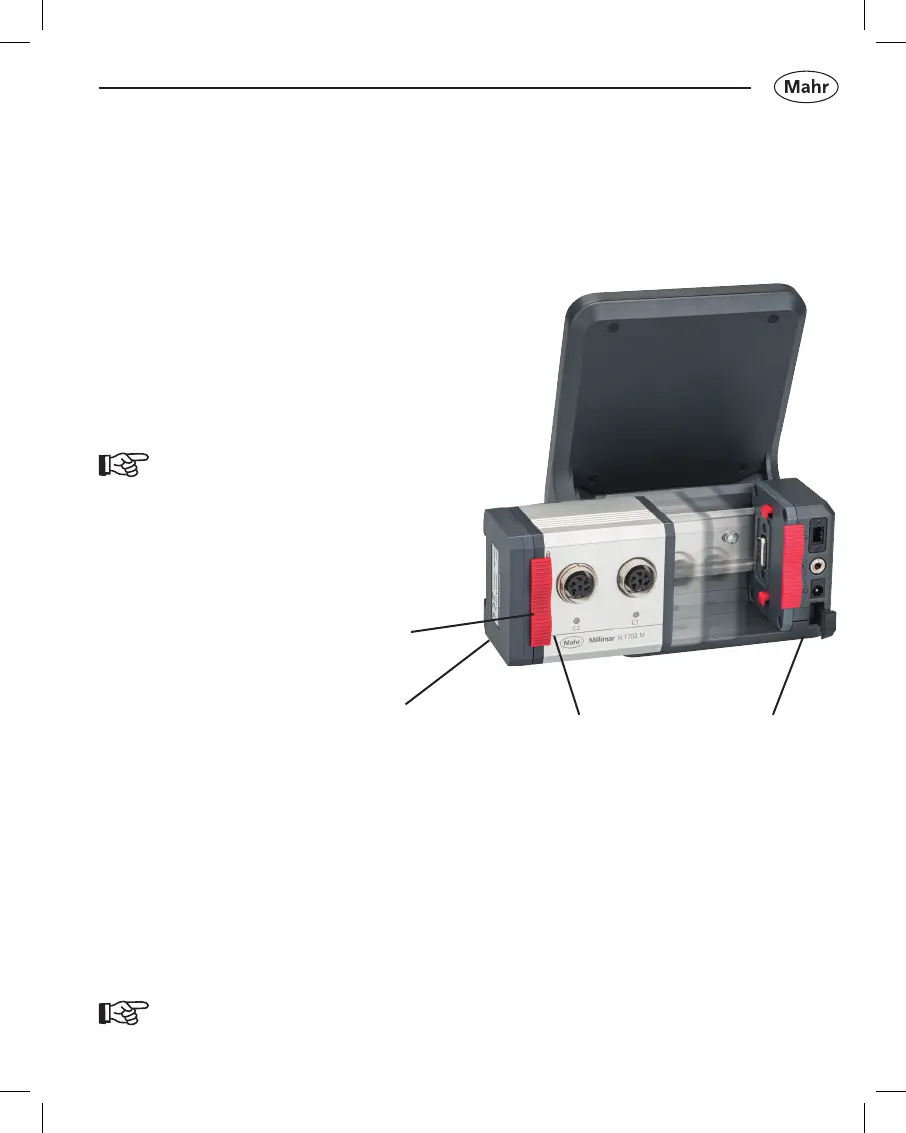

Bus termination module
N 1700 module C 1202
Slide catch
