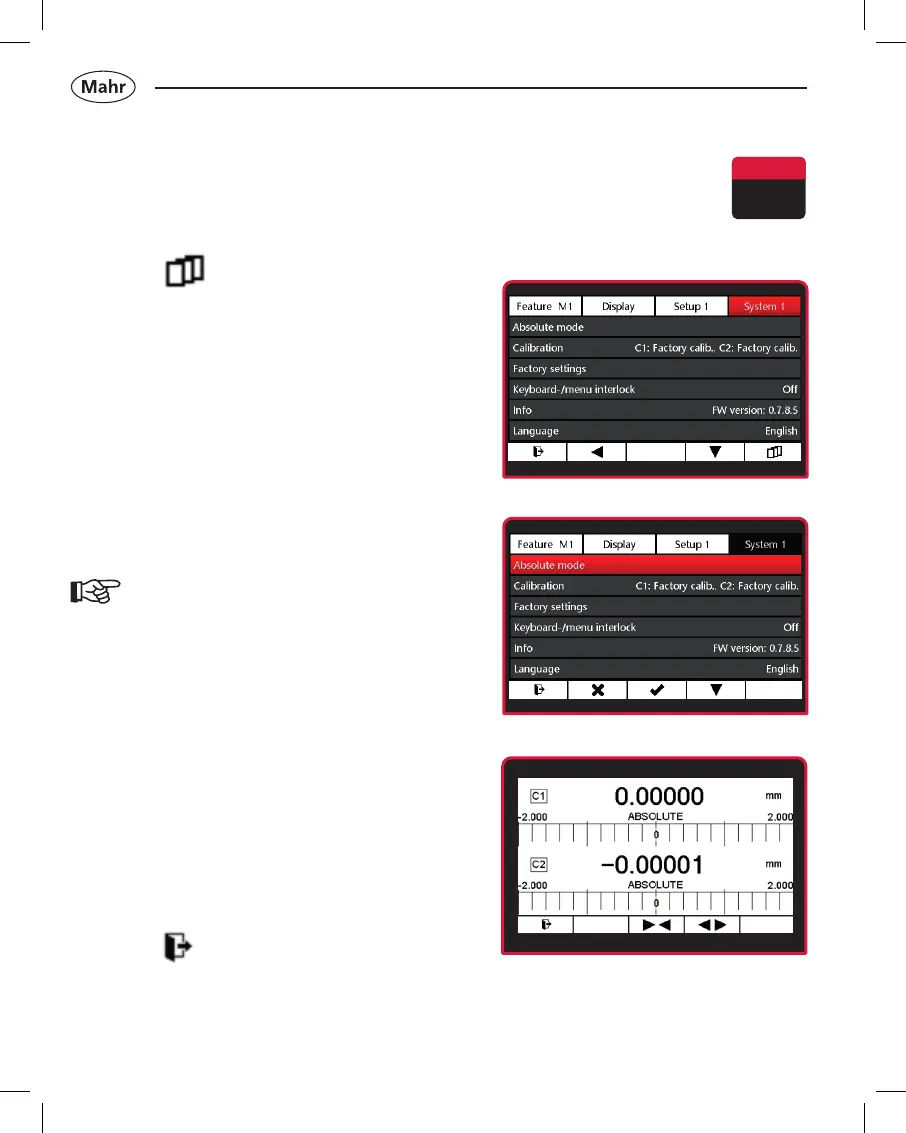

2.6 Setting up the probe
– Press the ON/OFF key
=> Menu appears
– Select System 1 with
▼
or
▼
and
– Select Absolute mode submenu
with▼
– Conrm entry with 4 key or exit sub-
menu with Ó key
One or two measuring channels will
appear. Depends on N 1700 module
used. The value displayed is the
direct value from the measuring
sensor.
– Adjust measuring probe mechanical-
ly close to “0”
– The scaling can be adjusted with the
▼
▼
or
▼
▼
key
– Exit the settings menu by pressing
the
key.
