Tool Bar: A row of icons that activate key functions when selected. Some buttons in
the toolbar will be ghosted when not useable. These buttons will change based on test
or setting screen visible.

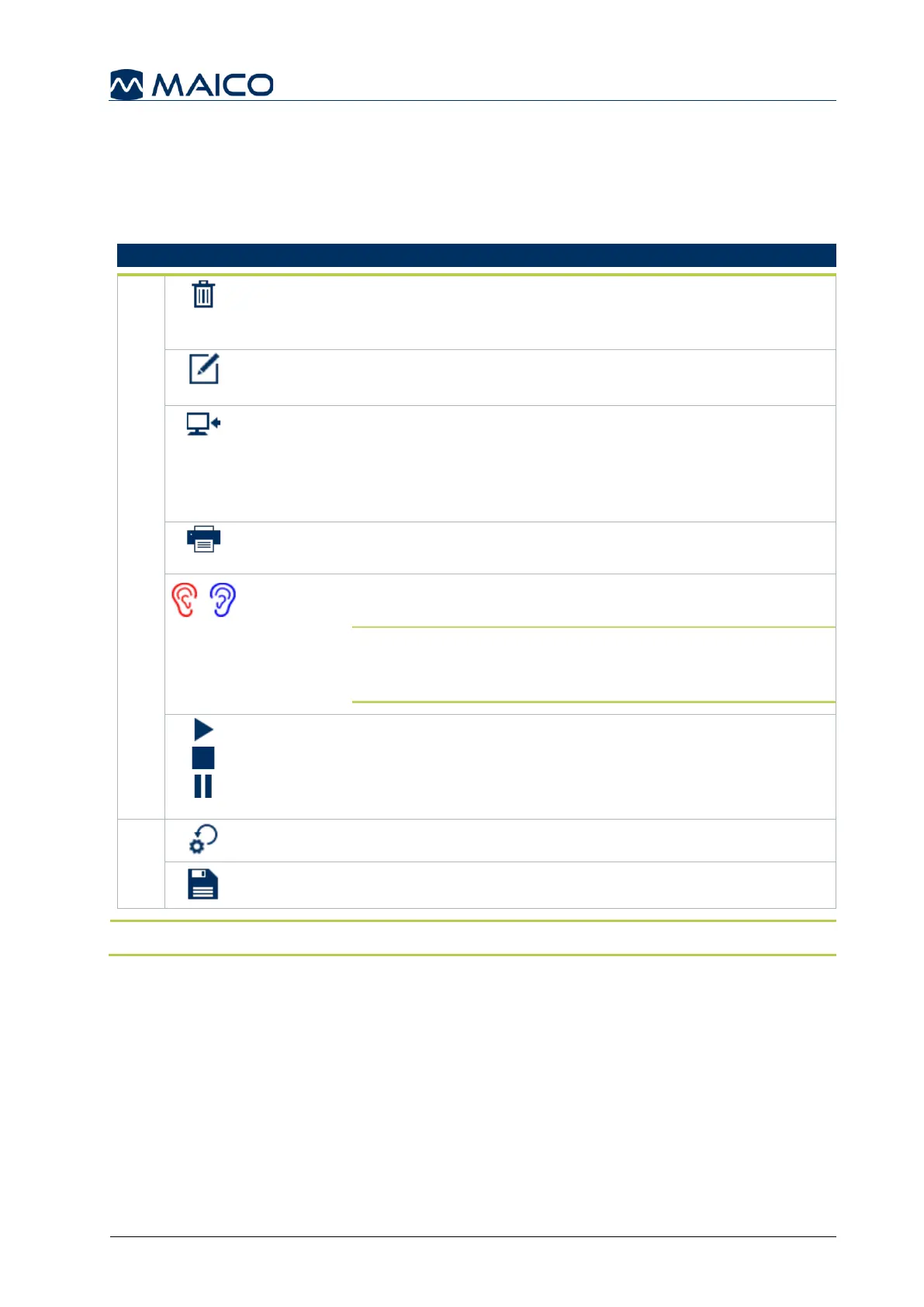

The available icons for the Tool Bar include (Table 9):
Table 9 Icons in the Tool Bar
Delete: to delete the stored measurements. Select the
button and a message box will appear to confirm which test
modules to delete or select all.
Edit: to edit reflex results. Select the button to enter the edit
reflex screen.
Transfer to PC: to transfer the currently measured data.
Dependent on the measurement (right, left or both ears) all
data of the measurement completed will be transferred.
Only the test results of the currently selected probe tone will
be transferred.
Print: to print the results of all completed tests and of all
probe tones.
Ear: to select an ear for testing or repeating the measurement
on the same ear (Blue = Left Ear, Red = Right Ear).
NOTE: The ear can be selected in different ways. Use the
ear buttons on the screen or the Probe button to change
the ear. Also, you can touch the left or right diagram.
Start, Stop, Pause: to start, stop or pause a measurement.
Icon will show only when applicable to the test method.
Default: to set the device back to factory settings.
Save: to save current selection.
NOTE: An active button is displayed in blue.
Main Screen Display: The middle or blue section displays the test configuration and
results when in the test mode. For a detailed explanation of the different test screens
see section 5.4.4.
