Figure 72

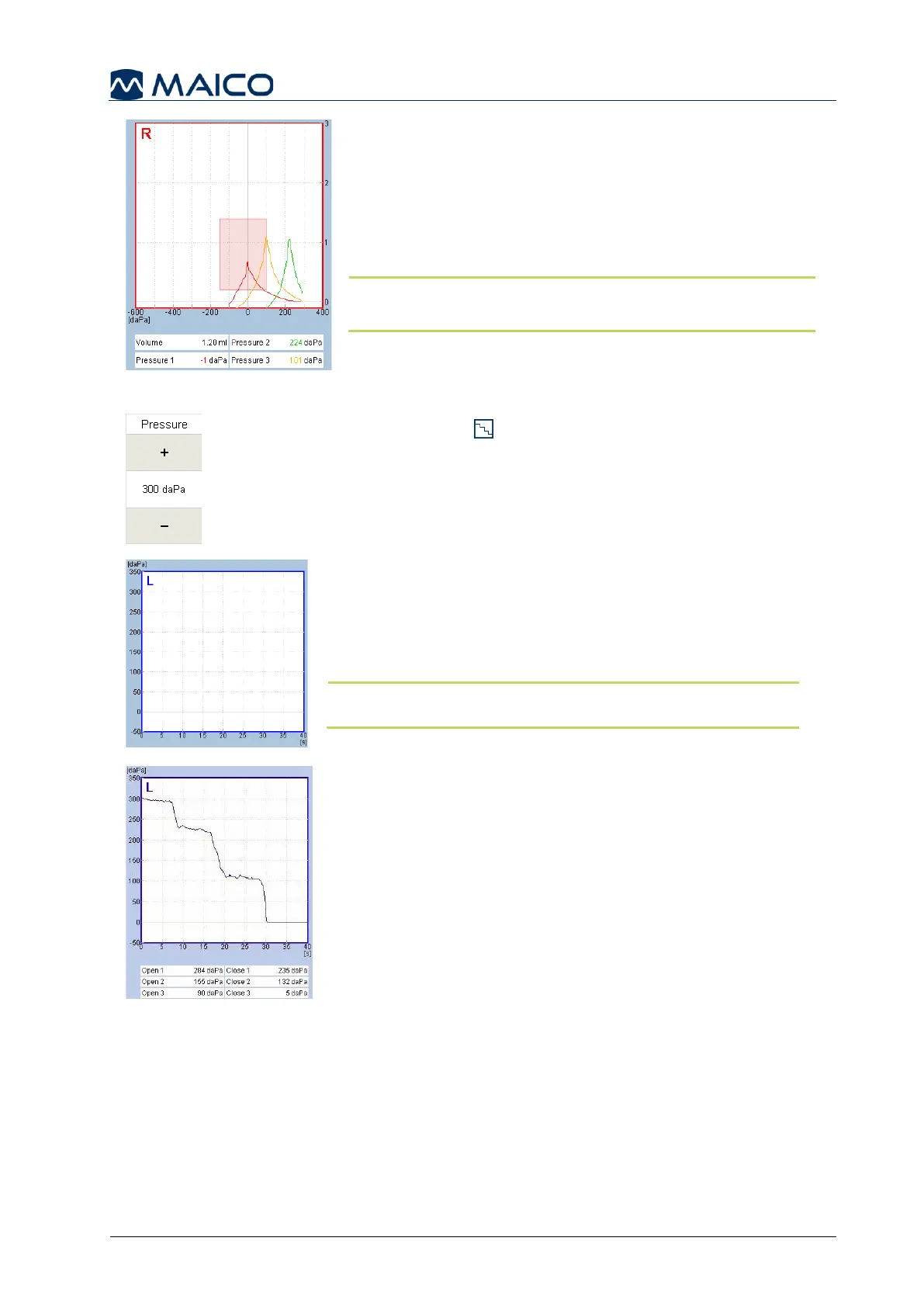

Compare the single tympanograms in the multilayered
tympanogram (Figure 72). Tympanograms displayed
include:
• Red or Blue: represents test ear
• Orange: represents “Swallow”
• Green: represents “Valsalva maneuver”
NOTE: The order of instructions displayed can be
configured in the Settings, see section 5.6.13).
Performing an ETF Perforated Measurement
Figure 73
ETF Perforated determines if the patient can open
his/her Eustachian tube when the TM is perforated or an
open PE-tube is in place. ETF Perforated will put the
middle ear under a certain Start pressure based on the
default setting, but can be modified in 25 daPa steps by the
on screen pressure setting (Figure 73).
Figure 74
The graph displays the vertical axis as pressure, and the
horizontal axis as time (Figure 74).
Instruct the patient not to move or talk until the test is over.
When a seal is obtained, the device displays a message to
swallow as many times during the test duration.
NOTE: Automatic and manual mode are operated the same
for this ETF Perforated test as a start operation is required.
Figure 75
Pressure will increase to the predetermined setting.
Let the pressure run a few seconds at peak pressure to
verify a successful seal. Once the peak pressure has been
obtained ask the patient to swallow as many times as they
can while the test is running.
If the Eustachian tube opens, a drop in pressure will be
recorded. Repeated attempts to swallow will display a
downward stair step effect, or a complete drop to 0 daPa
(Figure 75).
Numerical results of the test are displayed below the graph.
Each time the device detects opening and closing of the
Eustachian tube, the results are recorded. An open and
close result is displayed up to three values.
The test will stop after the allotted time (i.e. 30 seconds) as
defined in the settings or the examiner manually stops the test.
