Starting Regulations
Always check that any imminently dangerous conditions have been eliminated before using the machine. Ensure all
guarding is present & the operator is fully aware of the operations of the machine
Always ensure the pins lock the PTO shaft yoke ends onto the spline shafts on both the tractor and the
implement. An unlocked shaft could slip out of position, causing notable mechanical damage and serious
injury to both operator and bystanders.
Hitching to the Tractor
ALWAYS OPERATE ON LEVEL GROUND WHEN HITCHING/UNHITCHING THE IMPLEMENT. THIS WILL
PREVENT DANGEROUS MOVEMENT. NEVER ALLOW ANYONE TO STAND BETWEEN THE TRACTOR
AND THE ROLLERMOWER.

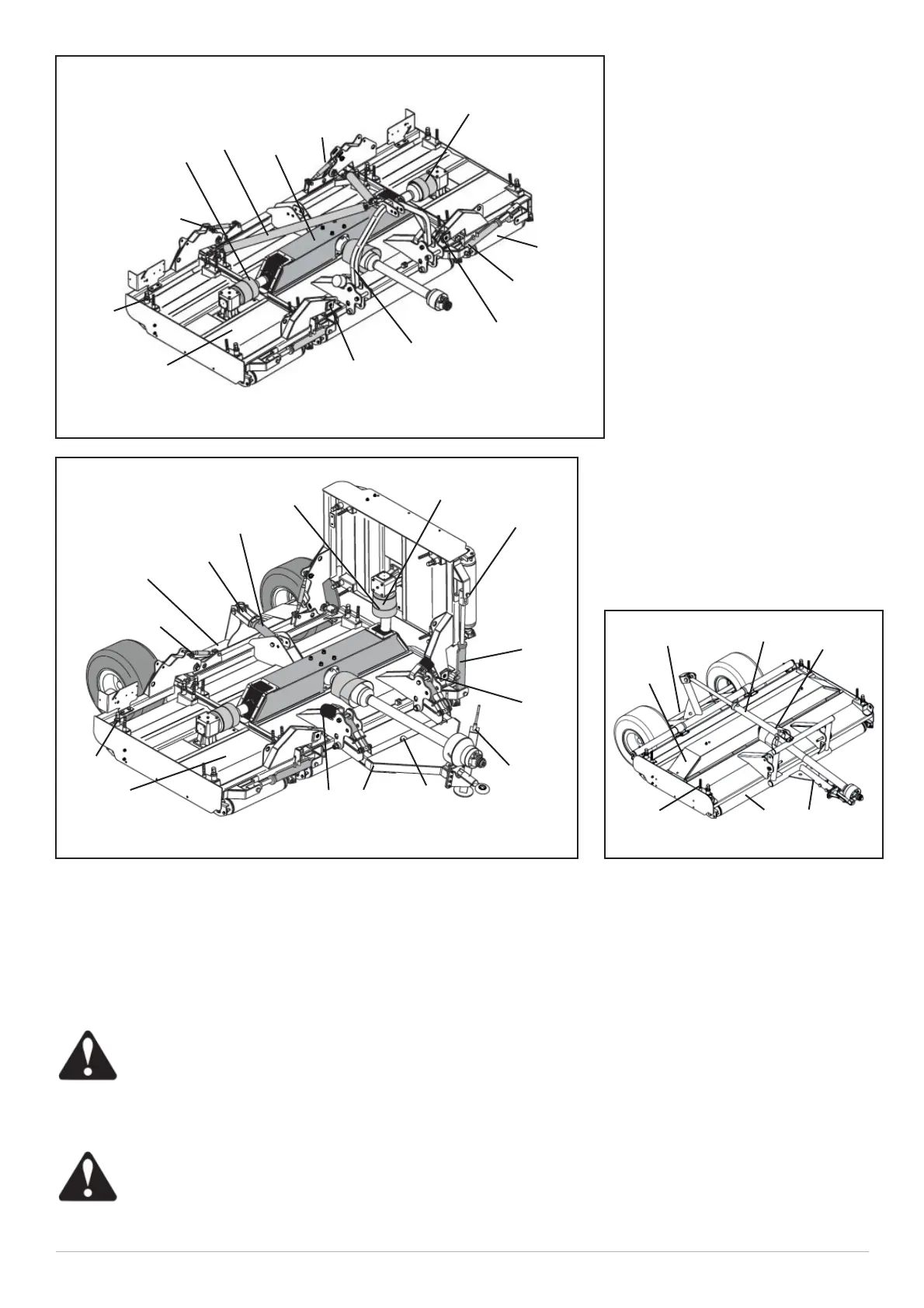

No Name
1 Drawbar
2 Jack- Transport Position
3 Jack- Parking Position
4 Roller
5 Wing Ram
6 Wing
7 Hinge
8 Axle
9 Axle Ram
10 Axle Ram Stopper
11 Wing PTO Shaft
12 Gearbox cover
13 Roller Adjuster & Guide
14 Wing Transport Locking Bar
15 Drawbar Ram Stopper
16 A-Frame
17 Strap
18 PTO Cover
12GM3PL
12000GR & 18000GR
6300 and 8400 Trailed Models
13
14
11
17
12
14
18
4
5
7
7
16
6
6
13
14
8
10
9
11
4
9
13
12
8
18
1
4
18
5
7
3
21
15
