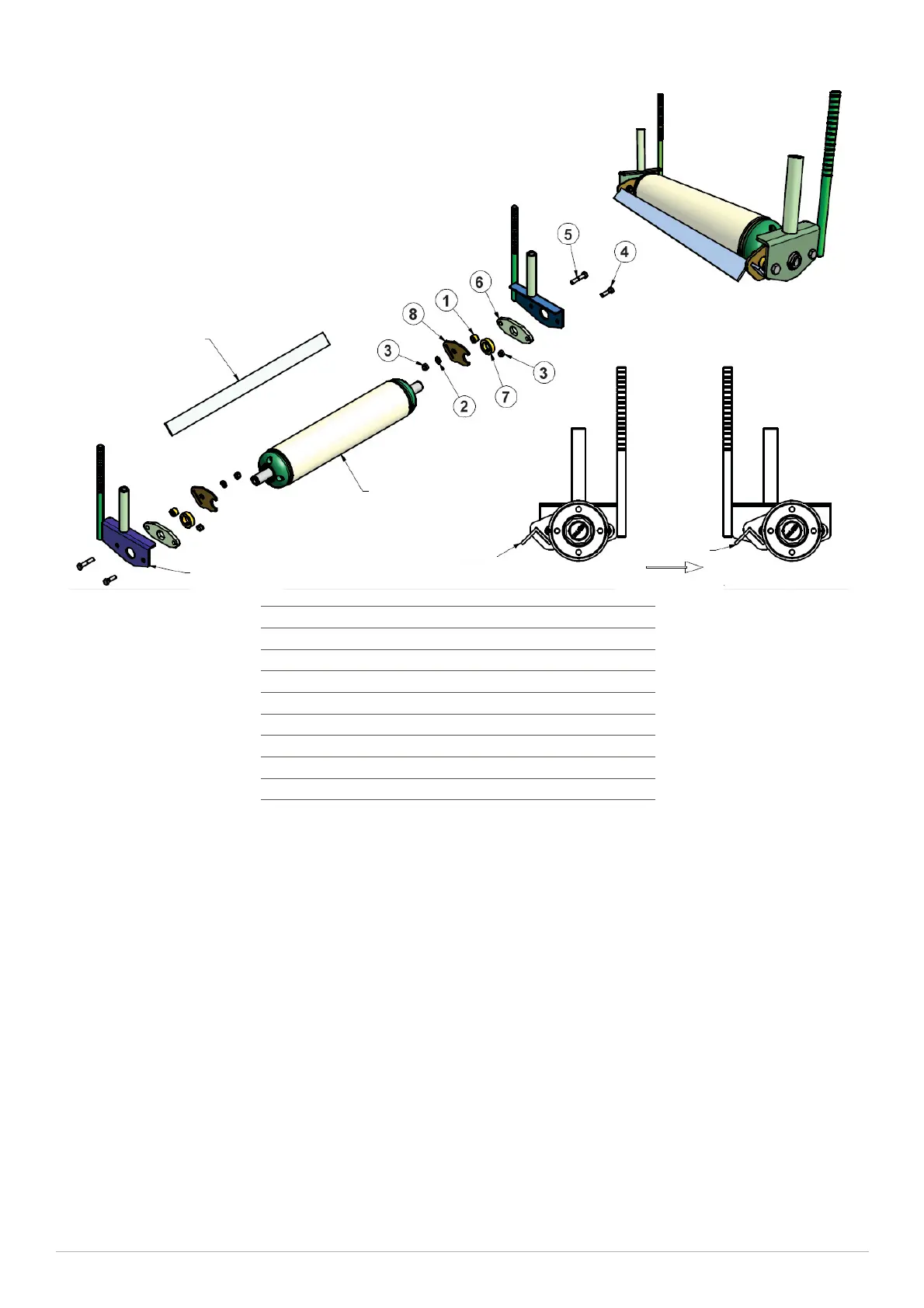

Scraper Bar Set Up
Item Part No Description Qty
1 12T-BBS BLADE BACK SPACER 2
2 FWM12 M12 FLAT WASHER 2
3 M12 M12 NYLOC NUT 4
4 M12x40BZP M12x40 BOLT 2
5 M12x60BZP M12x60 BOLT 2
6 RM-RSN2 ROLLER MOUNT 2
7 RM-RSN3 SHAFT COLLAR DIA 35 2
8 RM-RSN4 SCRAPER MOUNT 2
Scraper Bar (as
per machine)
Roller (as per
machine)
Front & rear
hangers
Rear Hanger Front Hanger
Scraper
Scraper
Direction of travel
