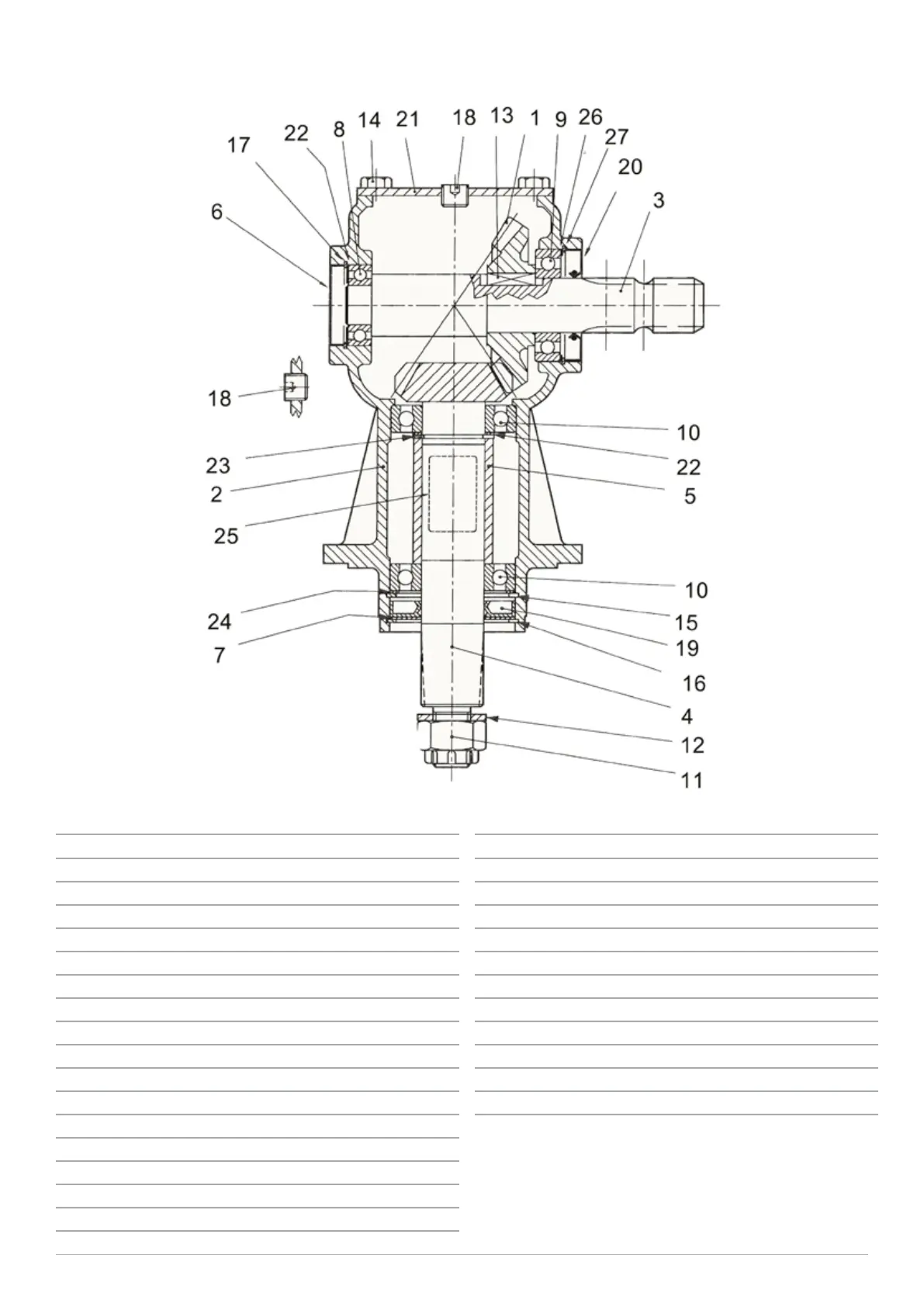

Major 601SL - LF205 Gearbox Breakdown

LF205 - 205.871 - 1.47
Item Part No Description Qty
1 LF135/17 0.131.5000.00 Crown Gear 22T Std box 1
2 LF205/12 0.135.0301.00 Gearbox Casing 1
3 LF135/18 0.135.2001.00 Input Shaft 1
4 LF135/11 0.135.6000.00 Pinion Shaft 1
5 LF135/10 0.135.7101.00 Spacer 1
6 52x7 0.135.1301.00 Oil Cap (Cover) 1
7 LF135/4 Protective Washer 1
8 LF135/21 8.0.1.00000 Bearing 6007 (35x62x14) 1
9 LF135/15 8.0.1.00870 Bearing 6207 1
10 LF135/9 8.0.1.00871 Bearing 6208 2
11 LF135/1 8.2.2.00515 Castle Nut 1
12 LF135/2 8.3.2.00409 Washer 1
13 LF135/19 8.4.1.00993 Key 1
14 M10x20SZP 8.11.00054 Bolt 1
15 LF135/6 8.5.1.00030 Snap Ring 1
16 LF135/3 8.5.3.00955 Snap Ring 1
Item Part No Description Qty
17 85200648 Circlip 1
18 LF135/13 8.6.6.00201 Plug 2
19 40X80X12V 8.7.1.01171 Double Lip Seal 1
20 T4A/1 (8.7.3.00055) 8.7.3.01172 Double Lip Seal 1
21 LF135/26 (LF205EP) 0.141.1300.00 Cover 1
22 LF135/8 0.244.7500.00 Shim 1
23 LF135/3 (02677500) 8.5.3.00955 Snap Ring 1
24 0.6.775.000 0.6.775.000 Shim 1
25 0.2.0.571.000 Name Plate 1
26 0.248.7500.00 0.2.4.8750000 Shim 1
27 85200131 8.5.2.00131 Circlip 1
