UDD-SD-116/ Release Date: 31.12.2014/Rev No: 1/Rev. Date: 27.04.2015 13

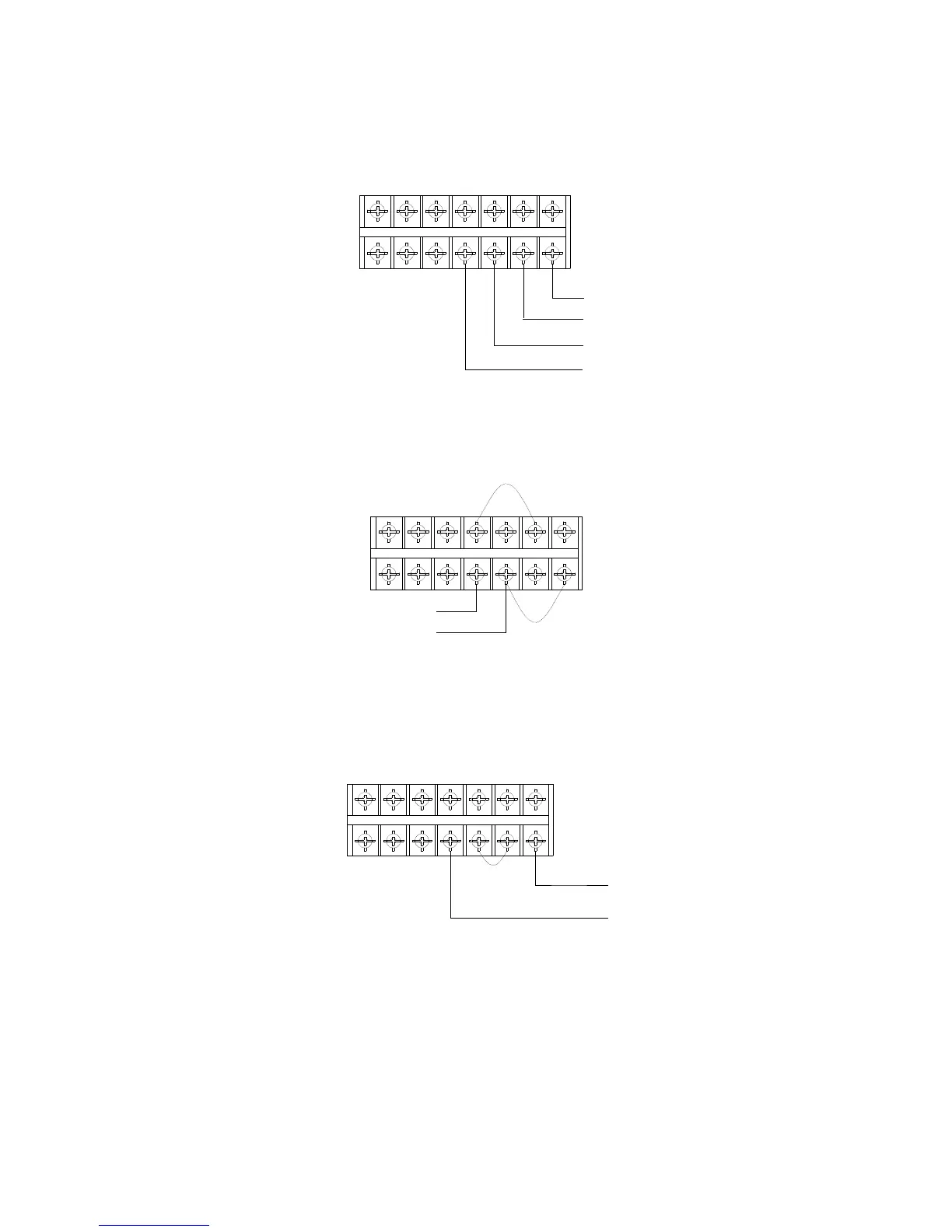

Output Configuration
★Option 1:
GND L1N1L2N2
To Load2
To Load1
L2
L1
There are 2 sets of low-voltage output (100V/110V/115V/120V) with L1-N1 and L2-N2. Each of
them is able to provide 50% of UPS rating power. Connect one load to L1-N1 and the other load
to L2-N2.
★ Option 2:
GND L1 N1 L2 N2
To Load
L2
L1
After connecting L1&L2 and N1&N2, it becomes one low-voltage output
(100V/110V/115V/120V) at L1-N1 for 100% of UPS rating power. Connect load to L1-N1 or L2-
N2.
★ Option3:
GND L1 N1 L2 N2
To Load
L2
L1
After connecting N1& L2, it becomes one low-voltage output (208V/220V/230V/240V) at L1-N2
for 100% of UPS rating power. Connect load to L2-N1
