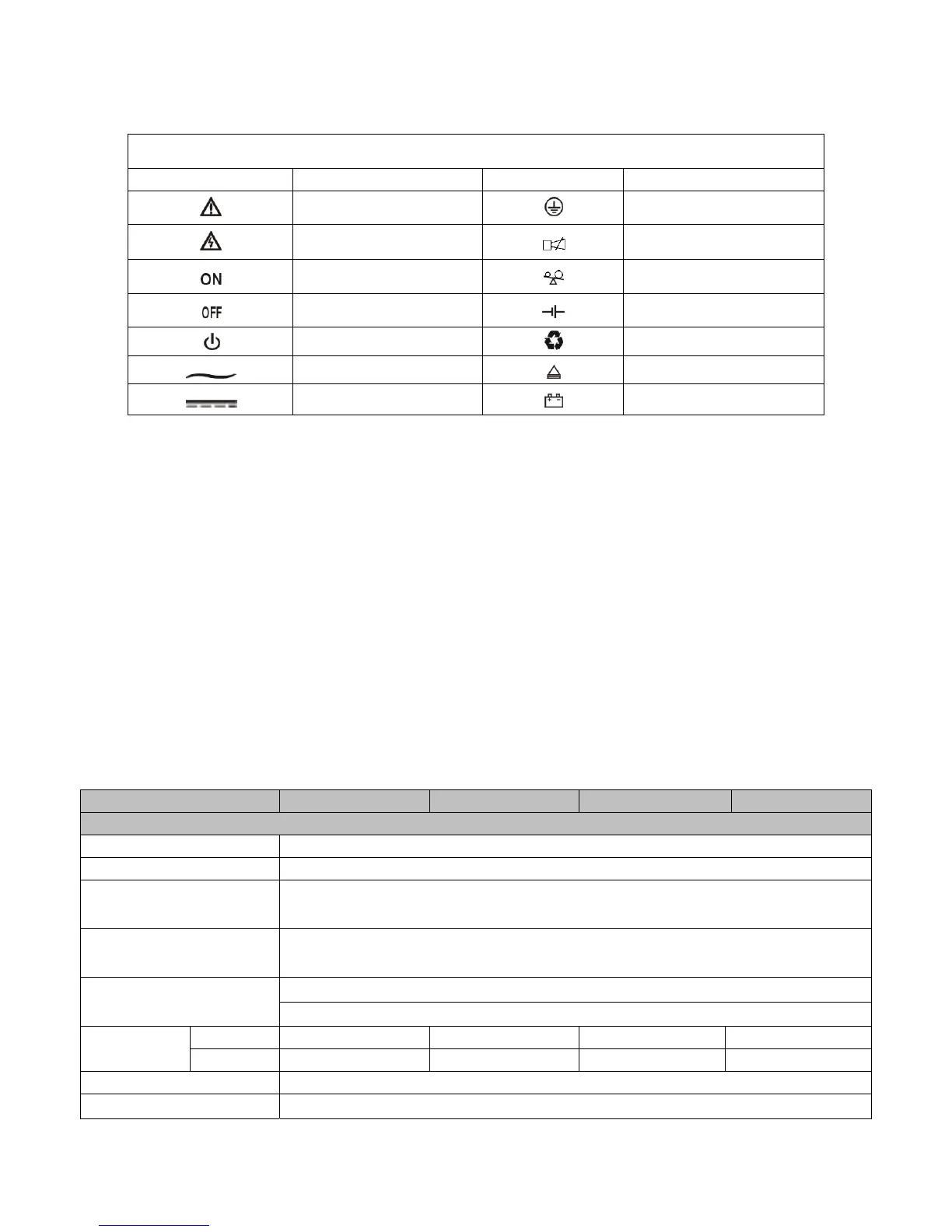

Appendix 2: Symbol instructions:
Symbols and significations
Symbol Significations Symbol Significations
Caution
Protect grounding
Danger! High Voltage!
Alarm cancel
Turn on
Overload
Turn off
Battery inspection
Standby or Shutdown
Repeat
AC
Display screen repeat key
DC
Battery
Appendix 3: Specification Sheet (1-3KVA)
Rated Capacity 1KVA 1.5KVA 2KVA 3KVA
Input
Rated input voltage 220V or 120V
Rated input frequency 50Hz/60Hz auto-adaptive
Input voltage range
(the type of 220V)
(115～295)±5VAC (half load)
(145～295)±5VAC(full load)
Input voltage range
(the type of 120V)
(55～145) ±5VAC(60% LOAD); (65～145) ±5VAC(70% LOAD)
(75～145) ±5VAC(80% LOAD); (85～145) ±5VAC(100% LOAD)
Input frequency range
45-55Hz+/-0.5% 50Hz type
55-65Hz+/-0.5% 60Hz type
Input current
220V 8A max 12A max 15A max 23A max
120V 14A max 21A max 27A max 40A max
PFC ≥0.98
THDI
﹤
6%
