Makita DUC256PG2 Repair Manual

3 / 32
2 CAUTION
Repair the machine in accordance with "Instruction manual" or "Safety instructions".
Follow the instructions described below in advance before repairing:
 Wear gloves.
 In order to avoid wrong reassembly, draw or write down where and how the parts are assembled, and what the parts are.
It is also recommended to have boxes ready to keep disassembled parts by group.
 Handle the disassembled parts carefully. Clean and wash them properly.
 Remove Batteries, except when they are necessary to check the operation of the machine.
3 NECESSARY REPAIRING TOOLS
Code No.
Description
Use for
1R003
Retaining ring pliers ST-2N
assembling Compression spring 7
1R026
Pipe 8-16-50
press-fitting Ball bearing 696ZZ
1R030
Pipe 17-25-50
press-fitting Ball bearing 6000DDW
1R033
Ring 10-60-15
press-fitting Ball bearing 696ZZ
1R242
Round bar 13-100
removing Ball bearing 6000DDW
1R269
Bearing puller small
removing Ball bearing 696ZZ
1R311
Retaining ring pliers L
removing/ assembling Retaining ring R-26
1R411
Push bar for lead wires
fixing Lead wires
4 LUBRICANT AND ADHESIVE APPLICATION
Description
Amount
Makita grease FA No.2
Apply a little unless specified in the figure.
Loctite 243 or ThreeBond 1342 (H)

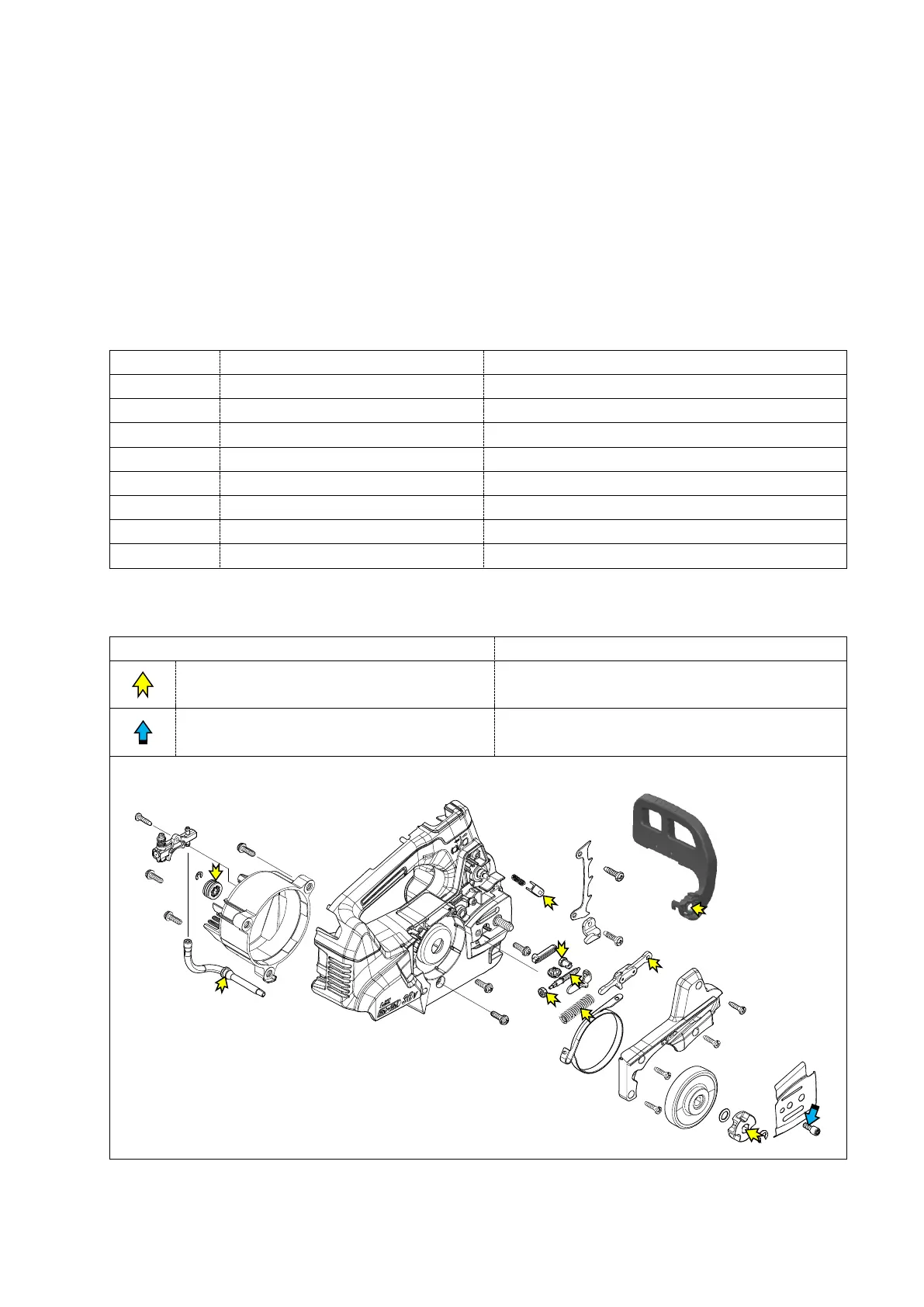

Fig. 1
