Makita DUC256PG2 Repair Manual

7 / 32
6-2 Chain tension/ Chain Brake section
6-2-1 Disassembling

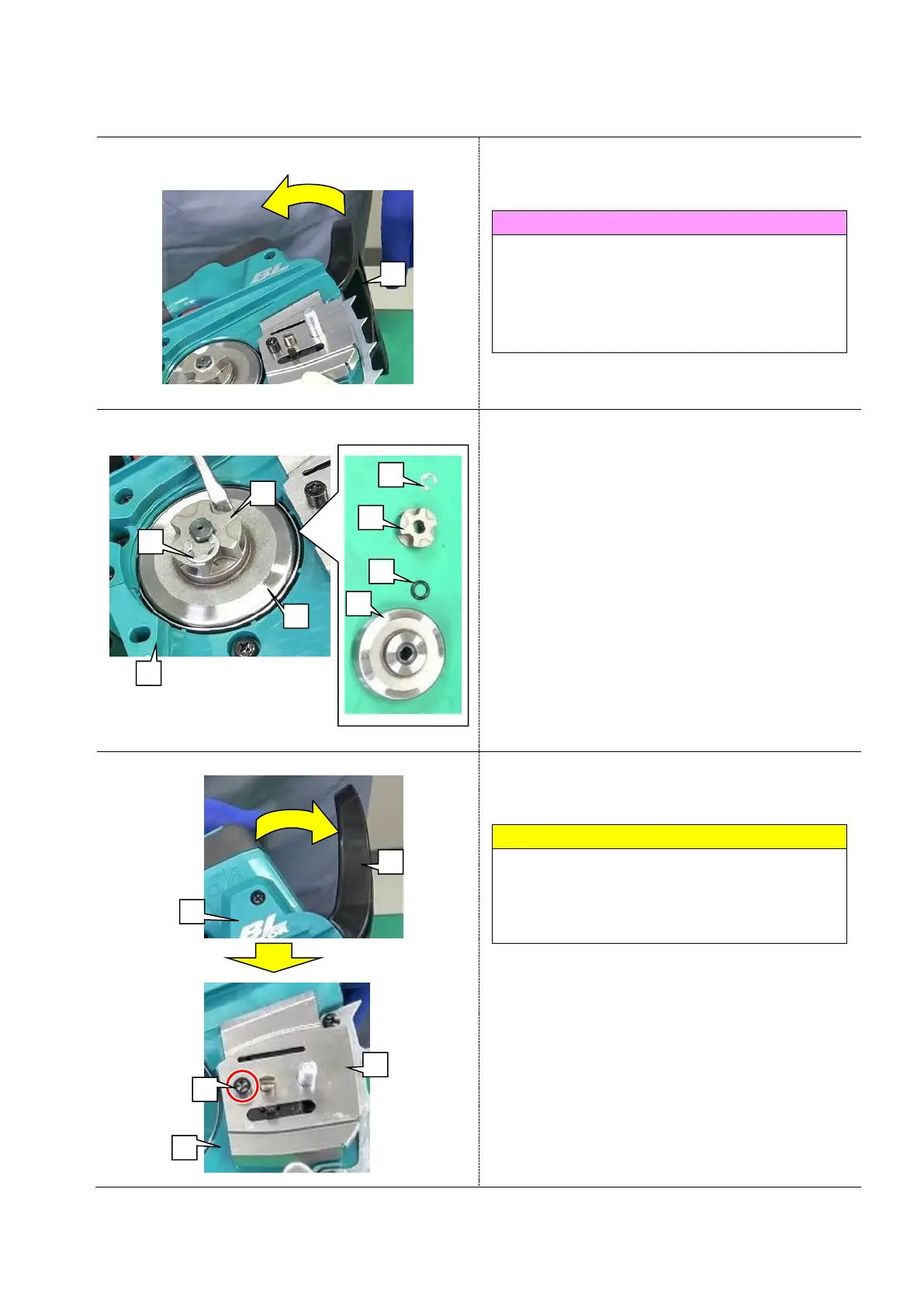

Fig. 8
1 Pull Front hand guard complete [1] to release the
brake.
Tips
 Brake drum cannot be removed unless the brake is
released and Brake band complete is widened.
 The brake section and Motor section cannot be
disassembled unless Brake drum complete is
removed.
Fig. 9
2 Remove the following parts from Housing set [1].
 Stop ring E-7 [2]
 Sprocket 6 or Sprocket 9 [3]
 O ring 10 [4]
 Brake drum complete [5]
Fig. 10
3 Push Front hand guard complete [1] forward to
activate the brake.
Note
The brake operation after removing Housing R cover
[5] may cause the damage, therefore, be sure to
activate the brake to stretch Compression spring 7
before removing Housing R cover [5].
4 Remove M5x12 H. L. socket head bolt [3], then
remove Guide plate L [4] from Housing set [2].
[1]
[4]
[2]
[3]
[5]
[2]
[3]
[4]
[5]
[1]
[5]
[3]
[2]
[1]
