6 / 32

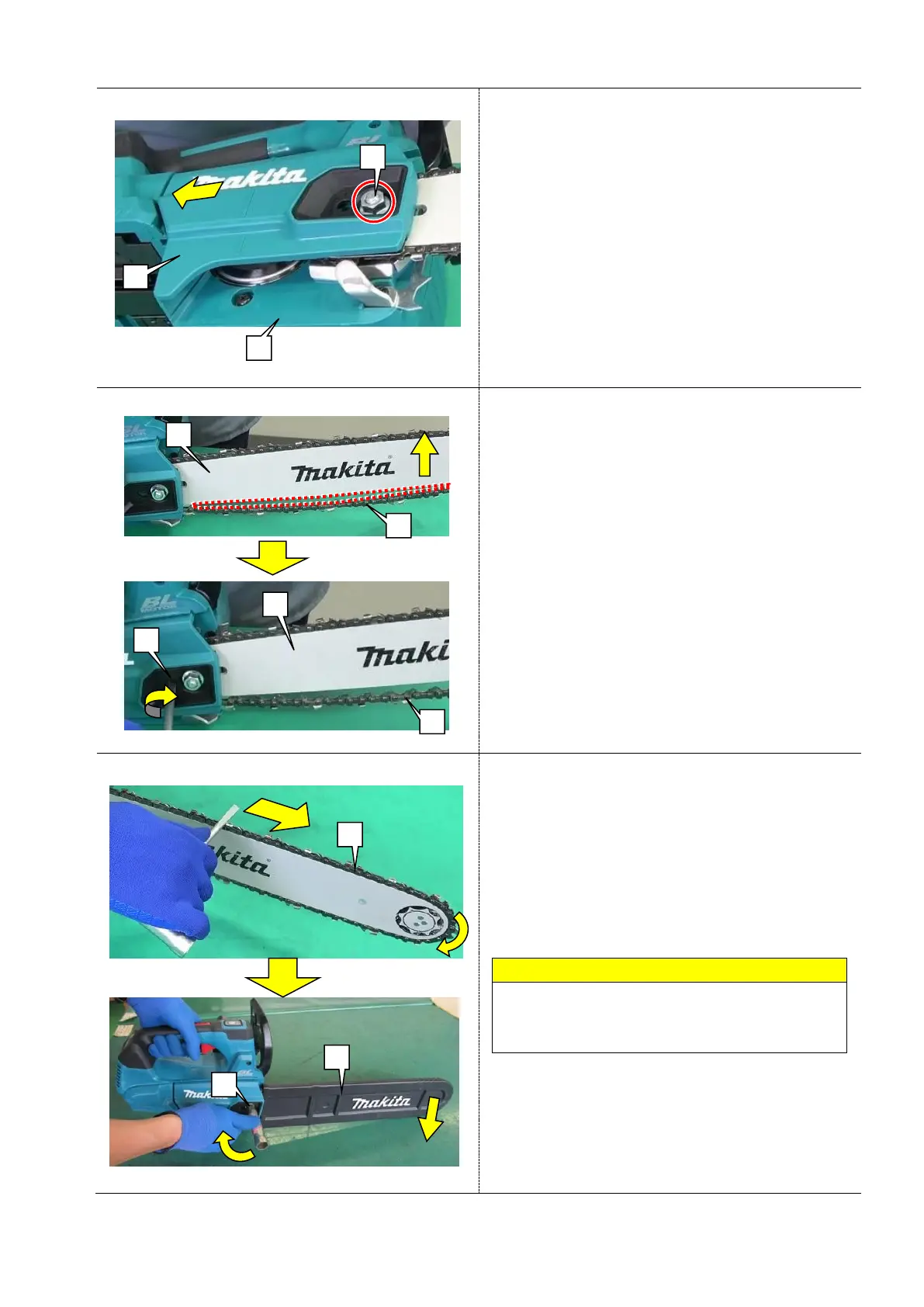

Fig. 5

2 Assemble Sprocket cover ass’y [2] to Housing set

[1] and tighten Flange nut complete [3] lightly.

Fig. 6

3 Adjust Drive gear [2] until Saw chain [3] fit tightly

to Guide bar [1] while lifting Guide bar [1].

Fig. 7

4 Release the brake and use a screwdriver or the like

to check that the tension of Saw chain [1] is not

loose. If Saw chain does not fit securely into

Sprocket, it may loosen. And so, do tension

adjustment again.

5 Assemble Guide bar case [3] in place and tighten

Flange nut complete [2].

Note

Tighten Flange nut [2] while pushing the top of Guide

bar case [3] to the workbench and lifting up the

machine body.

[1]

[3]

[2]

[3]

[1]

[3]

[1]

[2]

[3]

[1]
