9 / 32

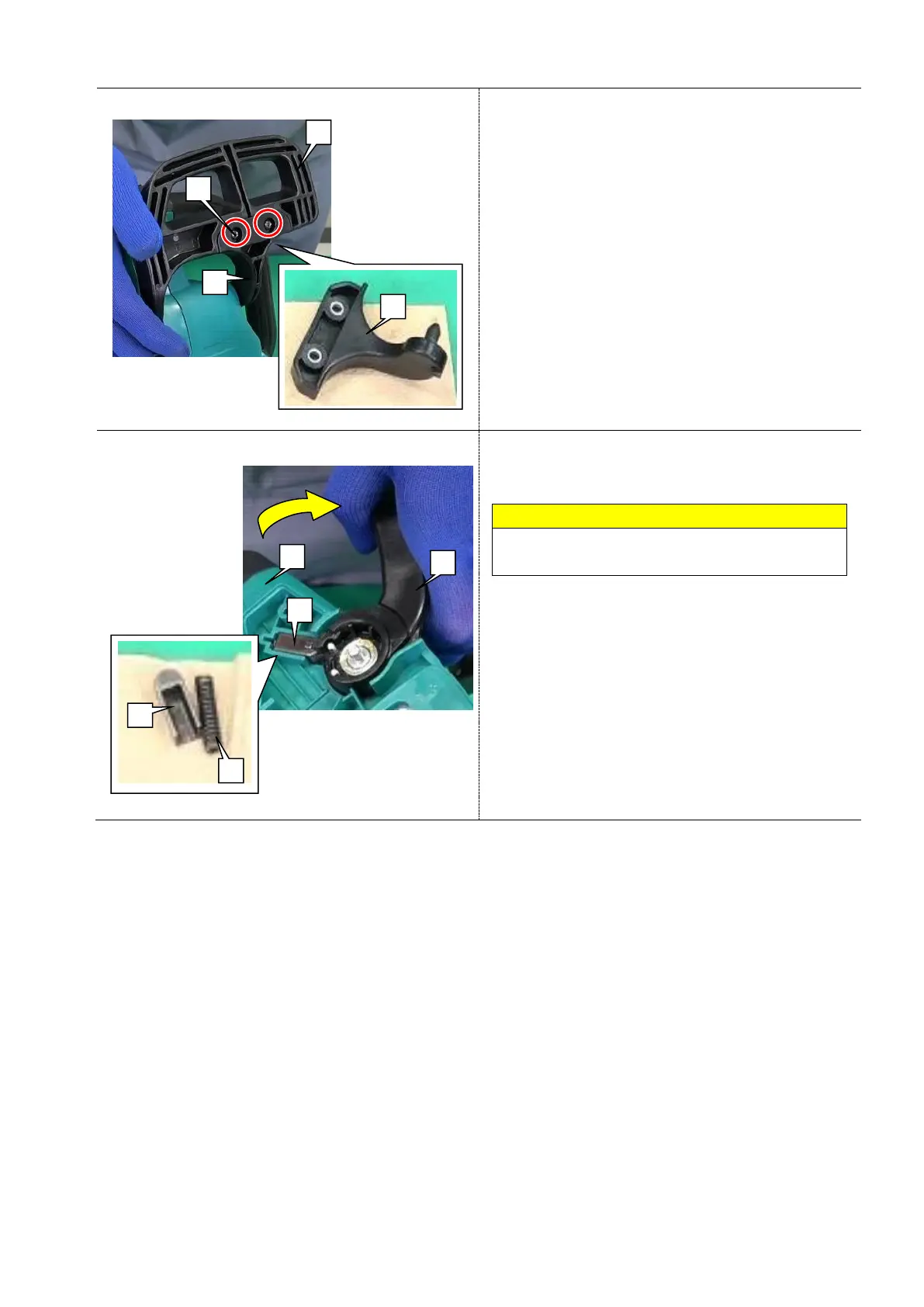

Fig. 14

8 Remove M4x12 Pan head screws [2] (2 pcs) from

Front hand guard complete [1], then remove Front

hand guard retainer [3].

Fig. 15

9 Push Front hand guard retainer [1] forward and

remove it while pulling it toward your side.

Note

Remove Compression springs 3 [2] and Hand guard

guide [3] while holding them so as not to pop out.

10 Remove Hand guard guide [3] and Compression

spring 3 [2] from Housing set [4].

[1]

[3]

[2]

[3]

[4]

[1]

[2]

[3]
