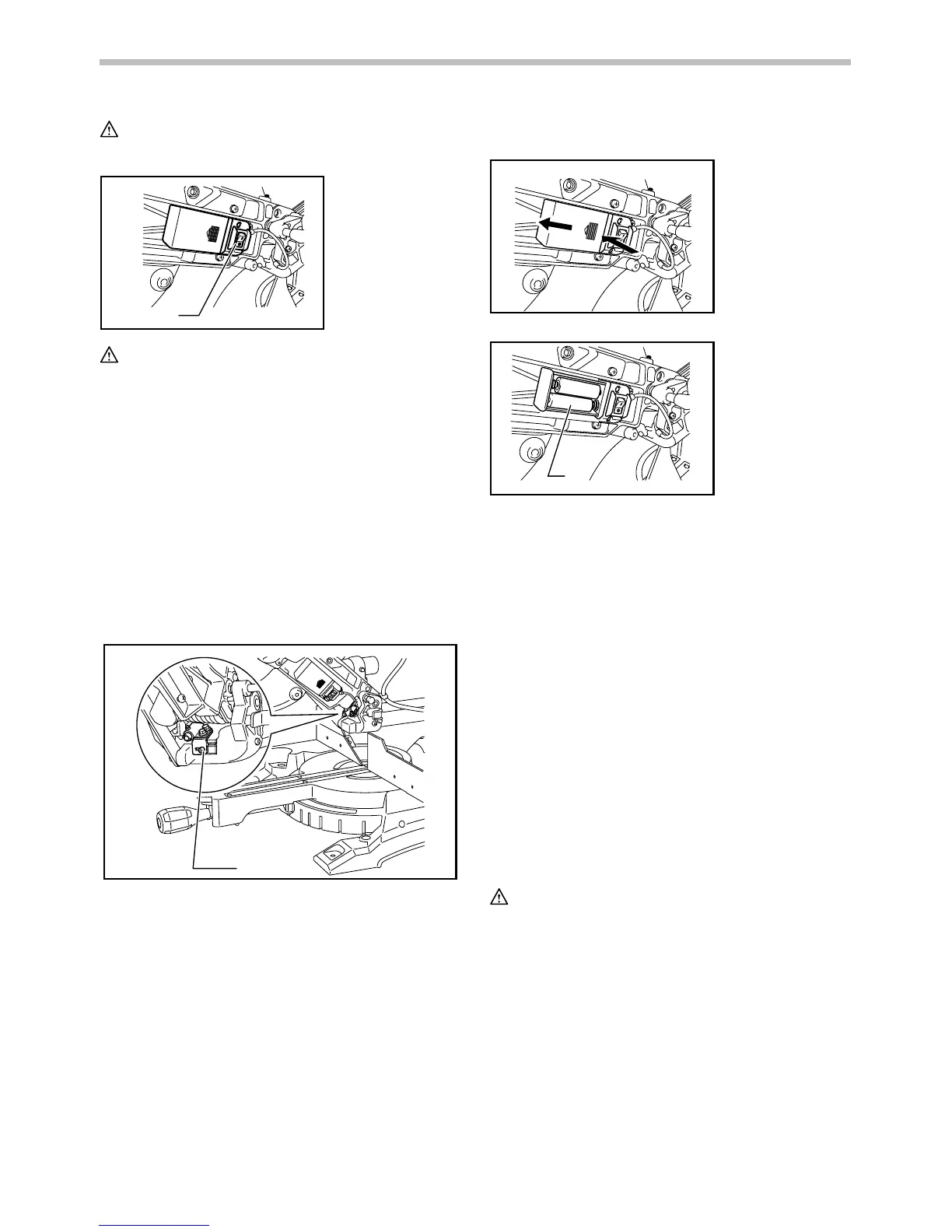

10
CAUTION:
When not in use, be sure to turn off the laser
1
010257
CAUTION:
Never look into the laser beam. Direct laser beam
may injure your eyes.
LASER RADIATION, DO NOT STARE INTO THE
BEAM, CLASS 2 LASER PRODUCT.
Before shifting the laser line or performing
maintenance adjustment, be sure to unplug the
tool.
To tur n o n the l as e r bea m, p ress t he up pe r pos i ti on ( I) of
the switch. To turn off the laser beam, press the lower
position (0) of the switch.
Laser line can be shifted to either the left or right side of
the saw blade by loosening the screw holding the laser
unit box and shifting it in the desired direction. After
shifting, be sure to tighten the screw.
1
010389
Laser line is factory adjusted so that it is positioned
within 1 mm from the side surface of the blade (cutting
position).
NOTE:
When laser line appears dim and hard to see
because of direct sunlight, relocate the work area to
a place where there is less direct sunlight.
Replacing the dry cells for laser unit
010399
1
010259
Remove the lid for the dry cells for laser unit by sliding
while pressing it. Take out the old dry cells and put the
new ones as shown in the figure. After replacing, return
the lid to cover it.
Cleaning of the lens for the laser light
If the lens for the laser light becomes dirty, or sawdust
adheres to it in such a way that the laser line is no longer
easily visible, unplug the saw and remove and clean the
lens for the laser light carefully with a damp, soft cloth.
Do not use solvents or any petroleum-based cleaners on
the lens.
NOTE:
When laser line is dim and almost or entirely
invisible because of the direct sunlight in the indoor
or outdoor window-by work, relocate the work area
to a place not exposed to the direct sunlight.
ASSEMBLY
WARNING:
Always be sure that the tool is switched off and
unplugged before working on the tool. Failure to
switch off and unplug the tool may result in serious
personal injury.
1. Dry cell
1. Screw holding the laser unit bo
x
1. Switch for laser
