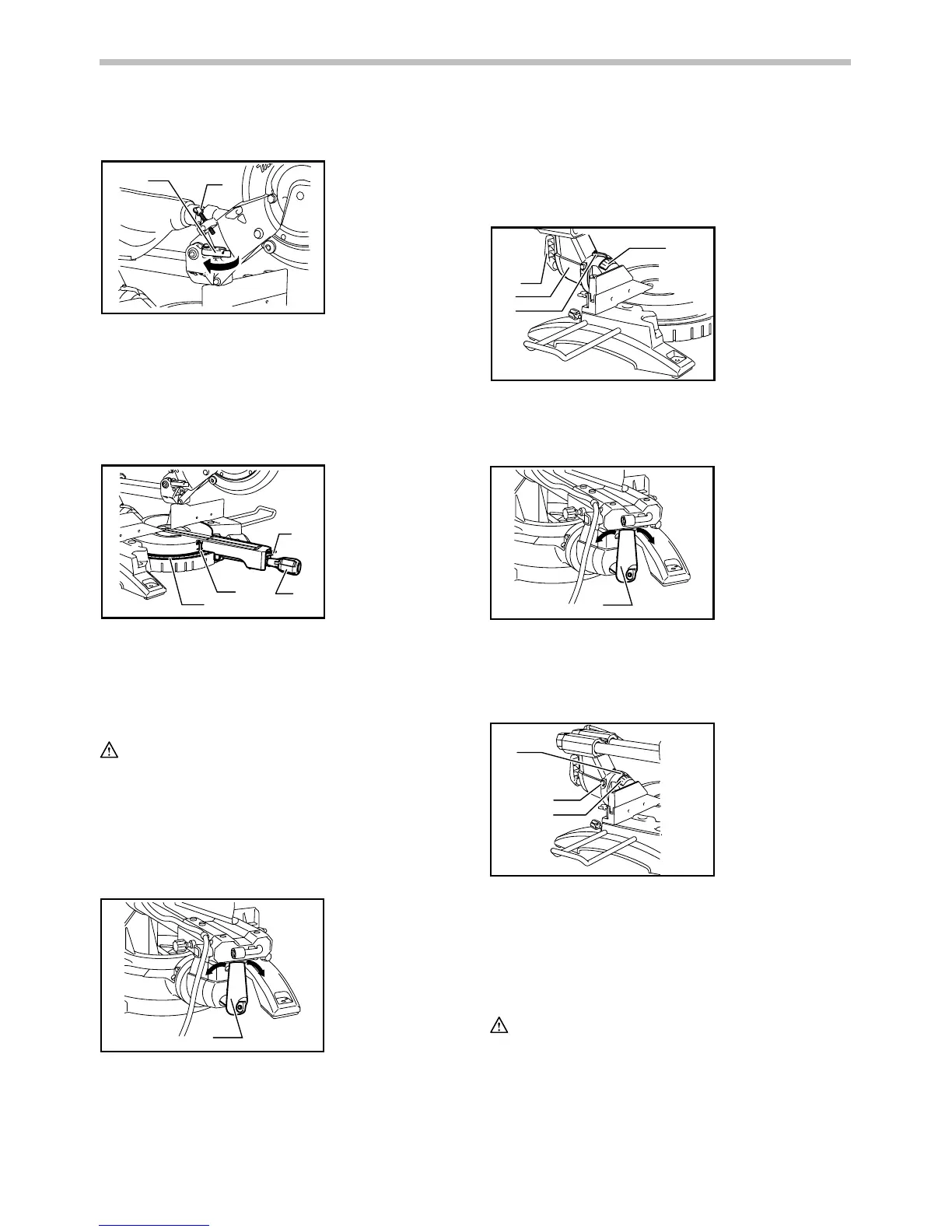

Stopper arm
1
2
010233
The lower limit position of the blade can be easily
adjusted with the stopper arm. To adjust it, move the
stopper arm in the direction of the arrow as shown in the
figure. Adjust the adjusting screw so that the blade stops
at the desired position when lowering the handle fully.
Adjusting the miter angle
1
2
3
4
010234
Loosen the grip by turning counterclockwise. Turn the
turn base while pressing down the lock lever. When you
have moved the grip to the position where the pointer
points to the desired angle on the miter scale, securely
tighten the grip clockwise.
CAUTION:
• After changing the miter angle, always secure the
turn base by tightening the grip firmly.
NOTICE:
• When turning the turn base, be sure to raise the
handle fully.
Adjusting the bevel angle
1
011337
To ad ju st the b e ve l an g le, loo s en th e leve r at the re ar of
the tool counterclockwise. Unlock the arm by pushing the
handle somewhat strongly in the direction that you intend
to tilt the saw blade.
NOTE:
• Lever can be adjusted to a different lever angle by
removing the screw holding the lever and securing
the lever at a desired angle.
1
2
3
4
011336
Tilt the saw blade until the pointer points to the desired
angle on the bevel scale. Then tighten the lever
clockwise firmly to secure the arm.
1
011337
When tilting the carriage to the right, tilt the carriage to
the left slightly after loosening the lever and press the
releasing button. With the releasing button being pressed,
tilt the carriage to the right.
1
2
3
011353
Tilt the saw blade until the pointer points to the desired
angle on the bevel scale. Then tighten the lever
clockwise firmly to secure the arm.
• When changing bevel angles, be sure to position
the kerf boards appropriately as explained in the
"Positioning kerf boards" section.
CAUTION:
• After changing the bevel angle, always secure the
arm by tightening the lever clockwise.
NOTICE:
• When tilting the saw blade be sure the handle is
fully raised.
1. Pointer
2. Release button
3. Bevel scale
1. Lever
1. Lever
2. Arm
3. Pointer
4. Bevel scale
1. Lever
1. Miter scale
2. Pointer
3. Lock lever
4. Grip
1. Stopper arm
2. Adjusting screw

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
