Makita LS1018L Technical Information

P 13/ 45
Repair

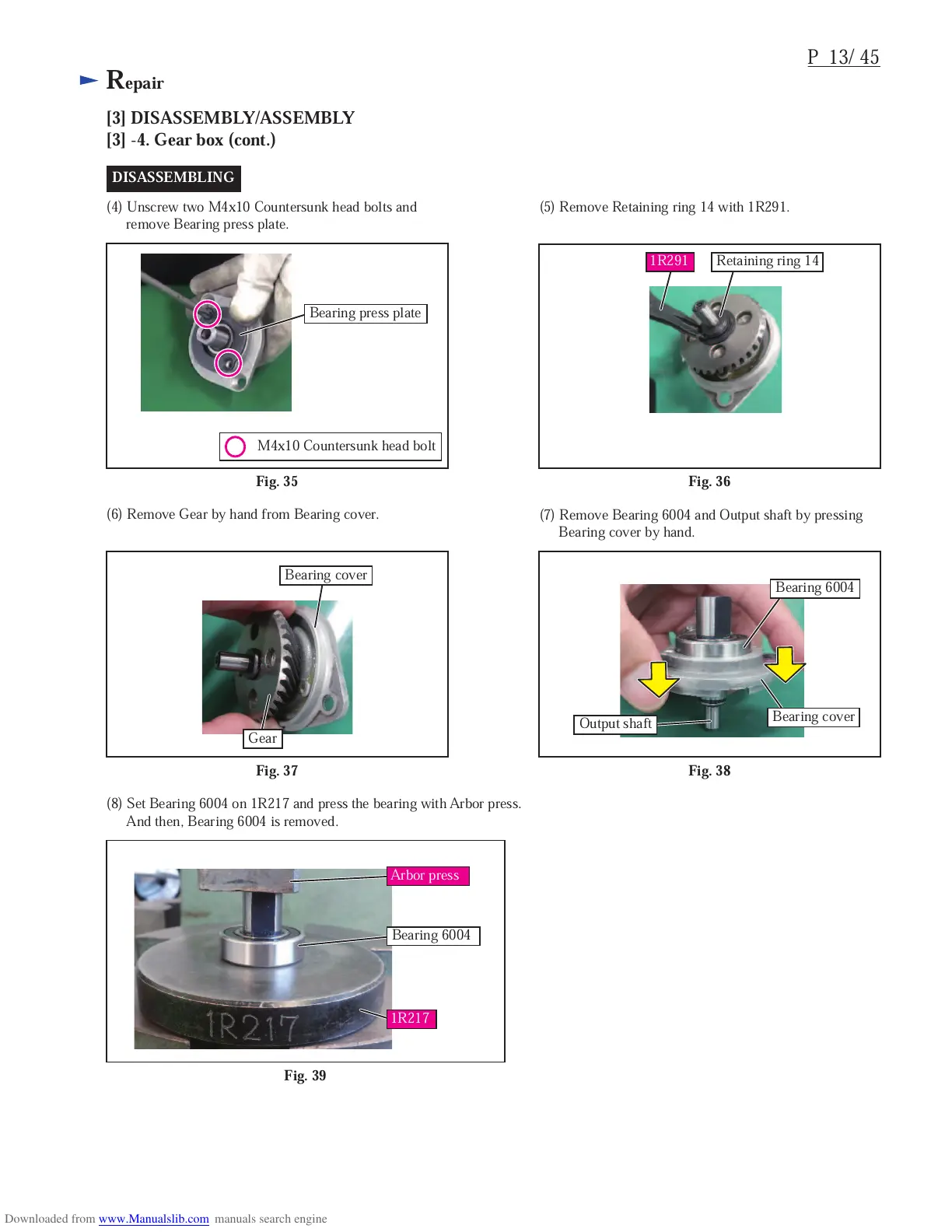

[3] DISASSEMBLY/ASSEMBLY
[3] -4. Gear box (cont.)
DISASSEMBLING
M4x10 Countersunk head bolt
Bearing cover
Bearing cover
Output shaft
Bearing 6004
1R291
Bearing 6004
Arbor press
1R217
Fig. 36
(5) Remove Retaining ring 14 with 1R291.
Fig. 35
(4) Unscrew two M4x10 Countersunk head bolts and
remove Bearing press plate.
(7) Remove Bearing 6004 and Output shaft by pressing
Bearing cover by hand.
Bearing press plate
Retaining ring 14
Gear
Fig. 38
(8) Set Bearing 6004 on 1R217 and press the bearing with Arbor press.
And then, Bearing 6004 is removed.
Fig. 39
Fig. 37
(6) Remove Gear by hand from Bearing cover.

Makita LS1018L Specifications

General

Input power	1430 W
Power source	AC
Blade bore	30 mm
Blade diameter	260 mm
Dust bag included	JM23100501
Saw blade included	Yes
Idle speed (max)	4300 RPM

Weight and Dimensions

Depth	536 mm
Width	825 mm
Height	633 mm
Weight	19800 g
