Makita LS1018L Technical Information

Fig. 147
P 41/ 45
Repair
[5] Circuit diagram, Wiring diagram
[5] -2. 110V area where Radio Interference Suppression is required
[5] -2. 2. Wiring diagram

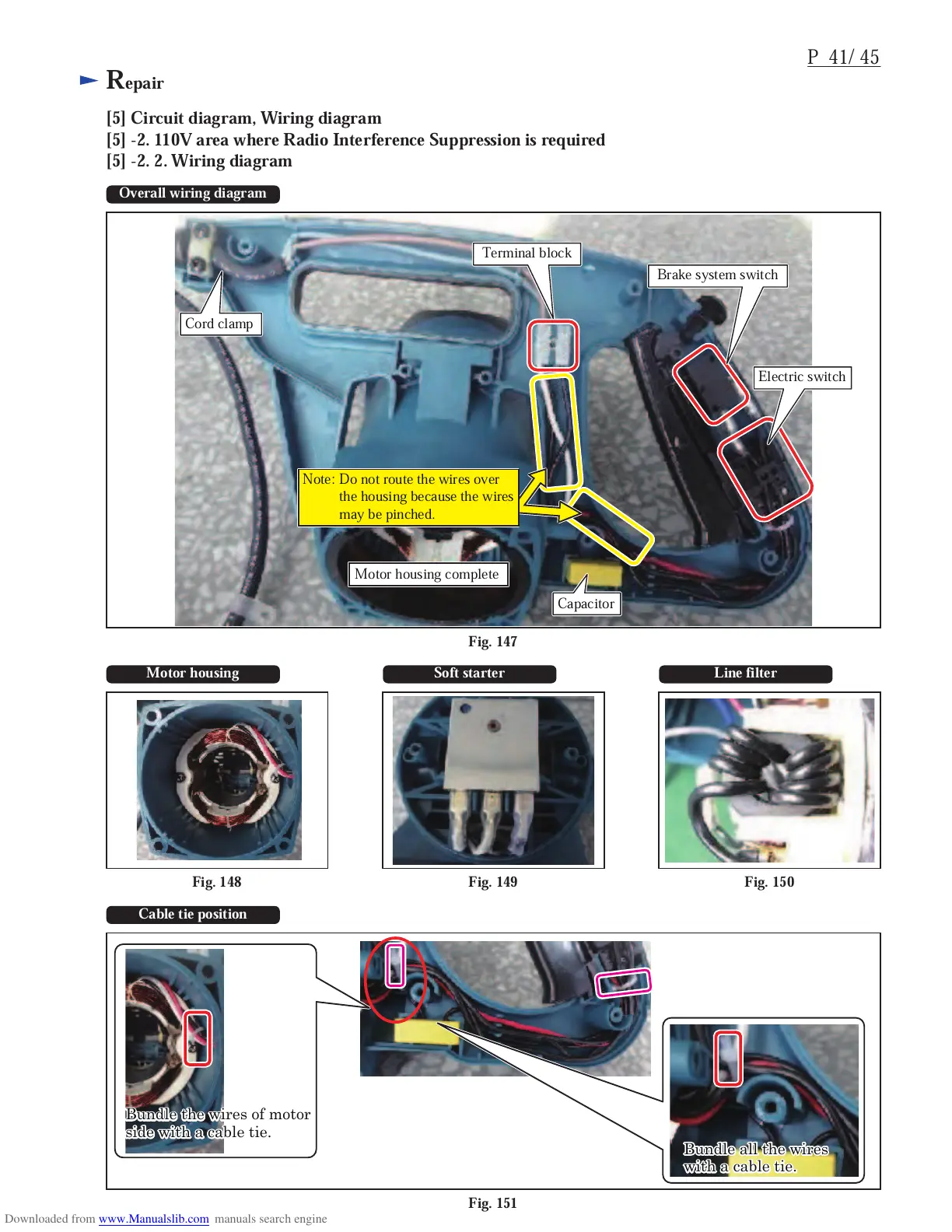

Overall wiring diagram
Fig. 151
Cable tie position
Motor housing Soft starter Line filter
Motor housing complete
Note: Do not route the wires over
the housing because the wires
may be pinched.
Cord clamp
Capacitor
Terminal block
Brake system switch
Electric switch
Fig. 148 Fig. 149 Fig. 150
Bundle the wires of motor
side with a cable tie.
Bundle the wires of motor
side with a cable tie.
Bundle all the wires
with a cable tie.
Bundle all the wires
with a cable tie.

Makita LS1018L Specifications

General

Input power	1430 W
Power source	AC
Blade bore	30 mm
Blade diameter	260 mm
Dust bag included	JM23100501
Saw blade included	Yes
Idle speed (max)	4300 RPM

Weight and Dimensions

Depth	536 mm
Width	825 mm
Height	633 mm
Weight	19800 g
