Makita LS1018L Technical Information

P 18/ 45
Repair

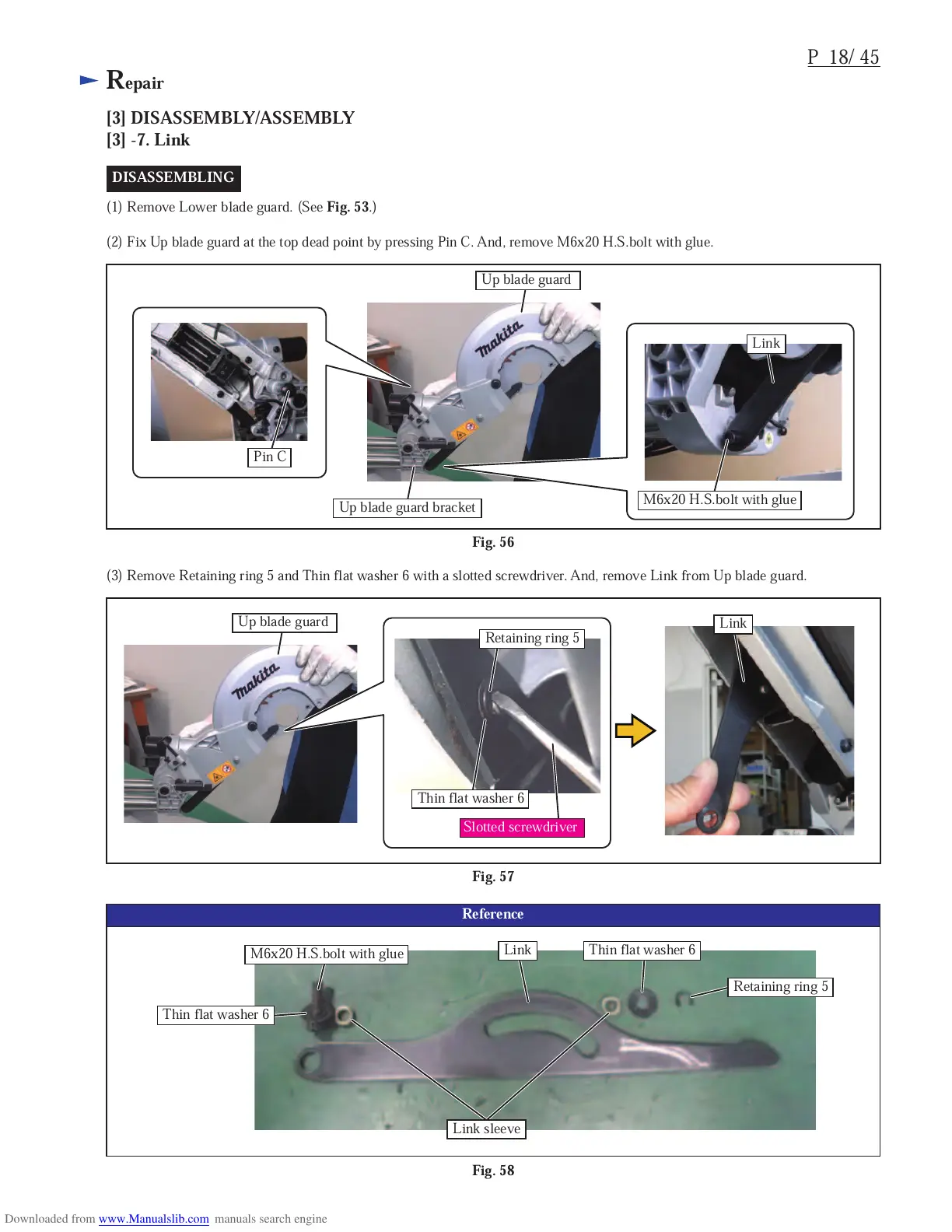

[3] DISASSEMBLY/ASSEMBLY
[3] -7. Link
Fig. 56
(1) Remove Lower blade guard. (See Fig. 53 .)
(2) Fix Up blade guard at the top dead point by pressing Pin C. And, remove M6x20 H.S.bolt with glue.
Fig. 57
(3) Remove Retaining ring 5 and Thin flat washer 6 with a slotted screwdriver. And, remove Link from Up blade guard.
DISASSEMBLING
Pin C
M6x20 H.S.bolt with glue
M6x20 H.S.bolt with glue
Up blade guard
Up blade guard
Up blade guard bracket
Link
Link
Link
Link sleeve
Fig. 58
Reference
Retaining ring 5
Retaining ring 5
Thin flat washer 6
Thin flat washer 6
Thin flat washer 6
Slotted screwdriver

Makita LS1018L Specifications

General

Input power	1430 W
Power source	AC
Blade bore	30 mm
Blade diameter	260 mm
Dust bag included	JM23100501
Saw blade included	Yes
Idle speed (max)	4300 RPM

Weight and Dimensions

Depth	536 mm
Width	825 mm
Height	633 mm
Weight	19800 g
