Makita LS1018L Technical Information

Gear box
P 2/ 45
Repair
[1] NECESSARY REPAIRING TOOLS
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
[2] LUBRICATION
Apply lubricant to the portions designated with the following arrows to protect parts and product from unusual abrasion.
Code No. Description Use for
1R034
1R036
1R080
Bearing Setting Plate 12.2 press-fitting Bearing 6001 to Rotor
assembling Bearing 6004 to Output shaft
1R173 Retaining Ring R Pliers connecting/disconnecting Terminal connected to Carbon brush house
press-fitting Bearing
Bearing Setting Plate 17.2
Arbor Press

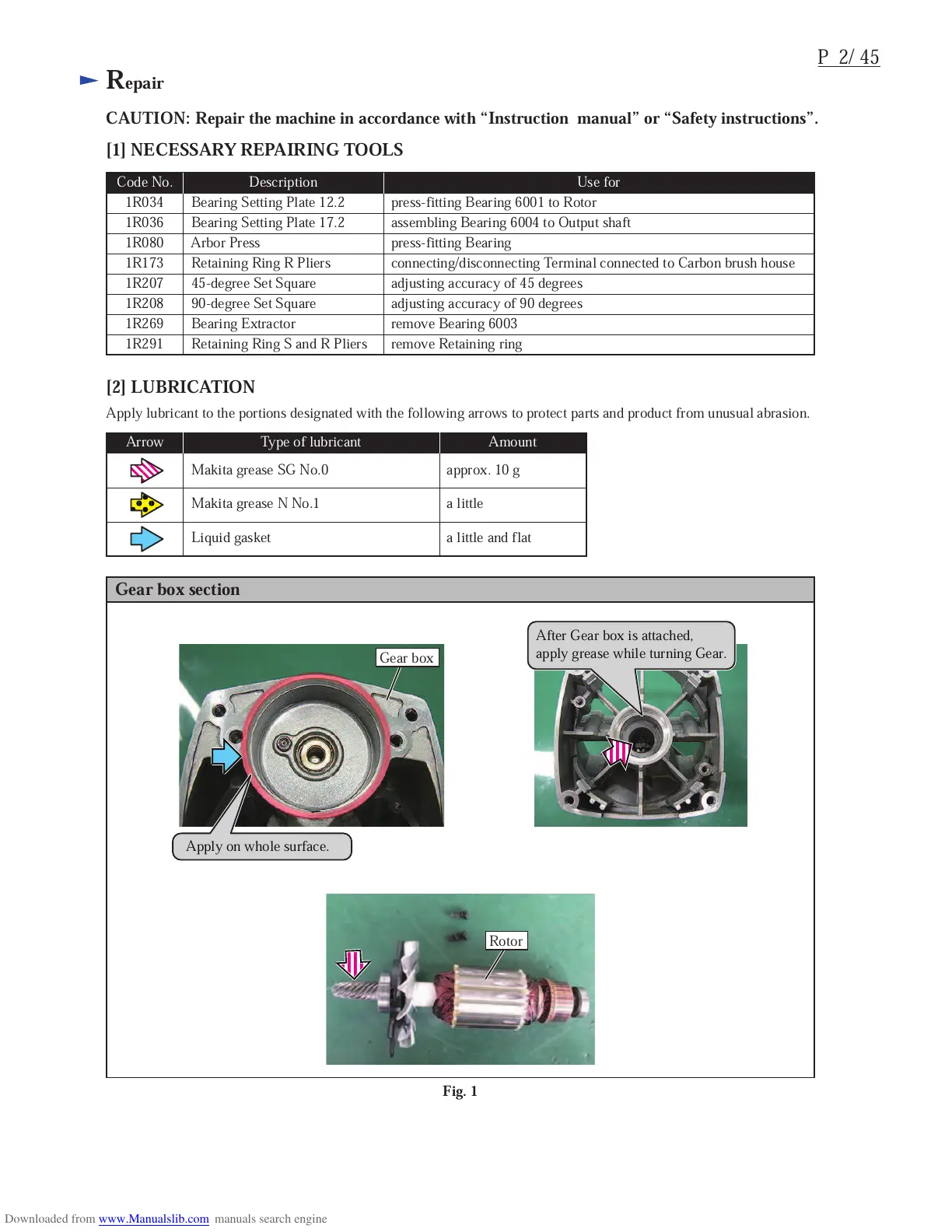

Fig. 1
Gear box section
1R207 45-degree Set Square adjusting accuracy of 45 degrees
1R208 90-degree Set Square adjusting accuracy of 90 degrees
1R269 Bearing Extractor remove Bearing 6003
1R291 Retaining Ring S and R Pliers remove Retaining ring
Arrow Type of lubricant Amount
Makita grease SG No.0 approx. 10 g
Makita grease N No.1 a little
Liquid gasket a little and flat
Rotor
After Gear box is attached,
apply grease while turning Gear.
Apply on whole surface.

Makita LS1018L Specifications

General

Input power	1430 W
Power source	AC
Blade bore	30 mm
Blade diameter	260 mm
Dust bag included	JM23100501
Saw blade included	Yes
Idle speed (max)	4300 RPM

Weight and Dimensions

Depth	536 mm
Width	825 mm
Height	633 mm
Weight	19800 g
