Makita LS1018L - Area Where Radio Interference Suppression Is Required

Stator Assembly
<View from the Carbon brush side>
Fig. 146
P 40/ 45
Repair

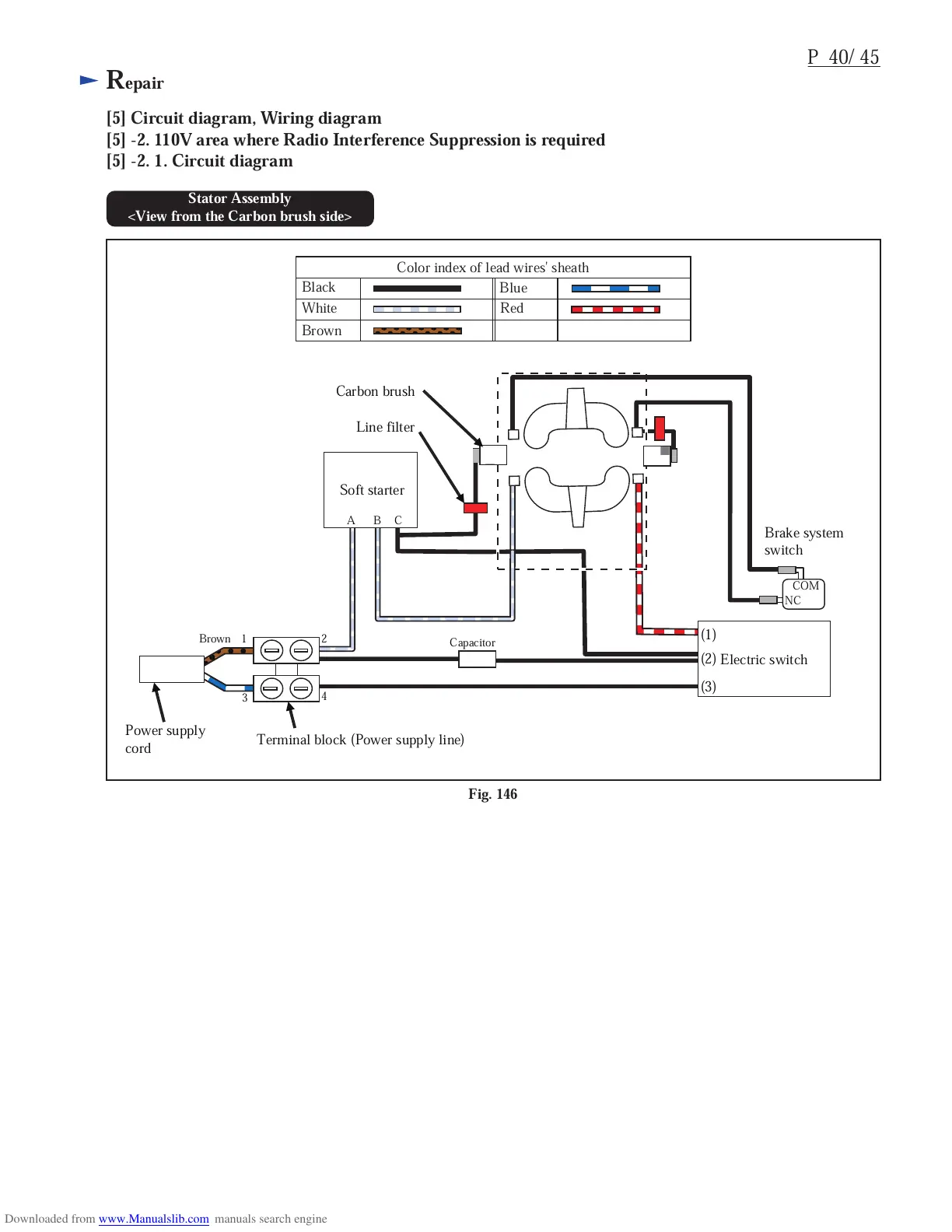

[5] Circuit diagram, Wiring diagram
[5] -2. 110V area where Radio Interference Suppression is required
[5] -2. 1. Circuit diagram
Brown
Blue
White
Color index of lead wires' sheath
Black
Red
Brake system
switch
Brown
NC
COM
1 2
3
4
Power supply
cord
Carbon brush
Capacitor
Terminal block (Power supply line)
Line filter
A C
B
Soft starter
(3)
(1)
(2)
Electric switch
