P 16/ 45
Repair

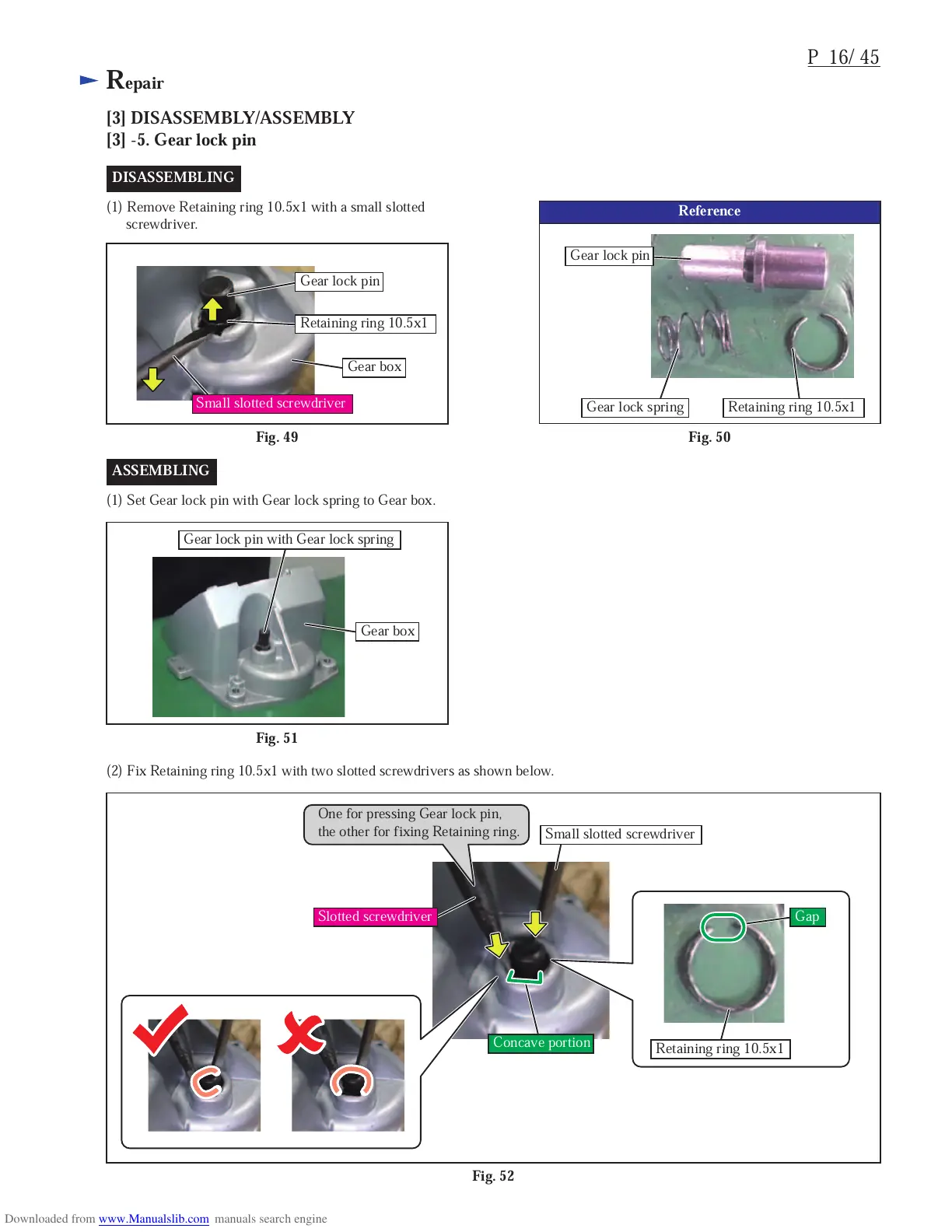

[3] DISASSEMBLY/ASSEMBLY
[3] -5. Gear lock pin
Fig. 49
(1) Remove Retaining ring 10.5x1 with a small slotted
screwdriver.
(2) Fix Retaining ring 10.5x1 with two slotted screwdrivers as shown below.
Fig. 50
DISASSEMBLING
Gear lock pin
Gear box
Retaining ring 10.5x1
Small slotted screwdriver
Reference
Gear lock pin
Gear lock spring Retaining ring 10.5x1
Fig. 51
(1) Set Gear lock pin with Gear lock spring to Gear box.
ASSEMBLING
Fig. 52
One for pressing Gear lock pin,
the other for fixing Retaining ring.
Gear box
Gear lock pin with Gear lock spring
Small slotted screwdriver
Retaining ring 10.5x1
Concave portion
Gap
Slotted screwdriver
