Makita LS1018L Technical Information

P 15/ 45
Repair

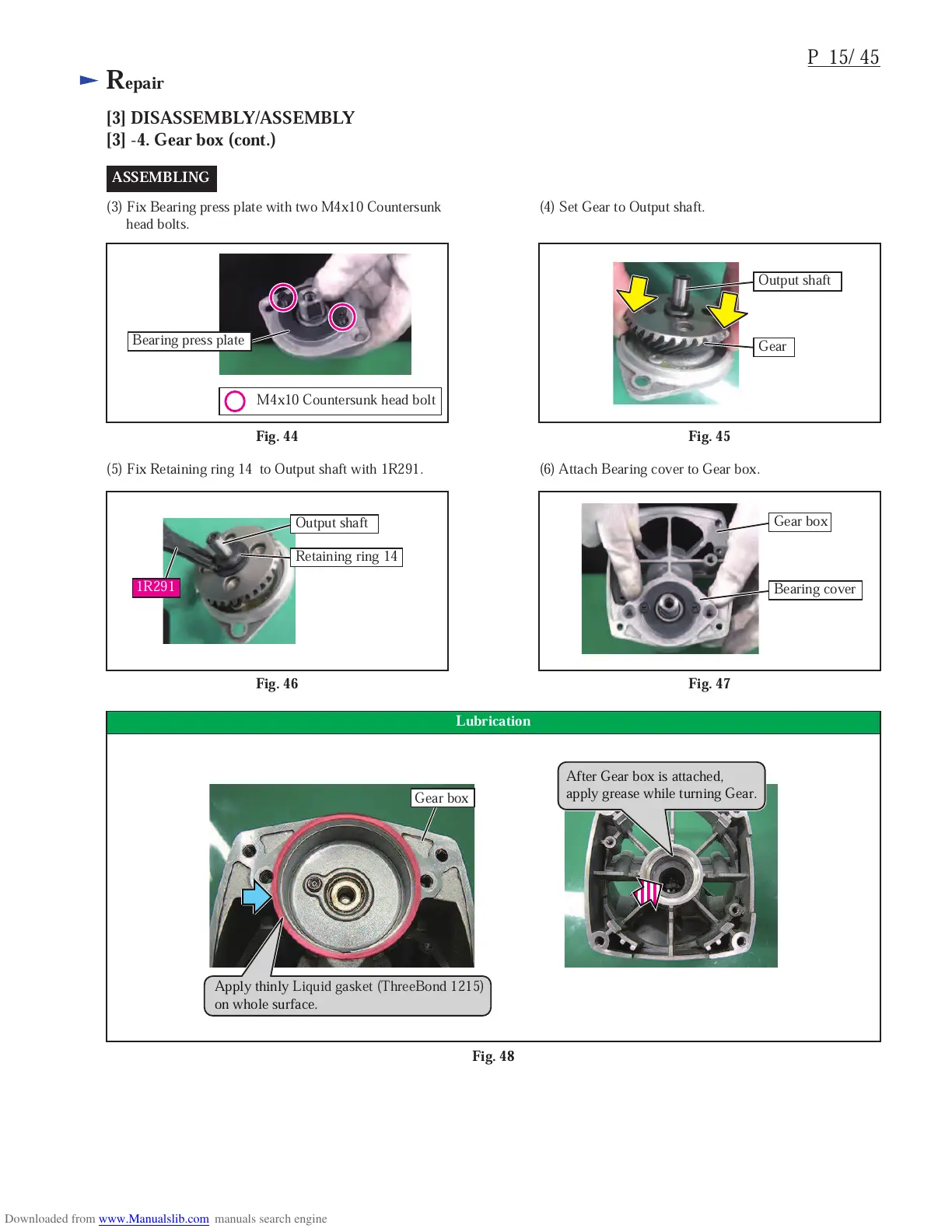

[3] DISASSEMBLY/ASSEMBLY
[3] -4. Gear box (cont.)
Fig. 44
(3) Fix Bearing press plate with two M4x10 Countersunk
head bolts.
Fig. 45
(4) Set Gear to Output shaft.
Fig. 46
(5) Fix Retaining ring 14 to Output shaft with 1R291.
Fig. 47
(6) Attach Bearing cover to Gear box.
M4x10 Countersunk head bolt
ASSEMBLING
Output shaft
Gear box
Bearing cover
Gear
Bearing press plate
Fig. 48
Lubrication
Output shaft
Retaining ring 14
1R291
After Gear box is attached,
apply grease while turning Gear.
Apply thinly Liquid gasket (ThreeBond 1215)
on whole surface.
Gear box

Makita LS1018L Specifications

General

Input power	1430 W
Power source	AC
Blade bore	30 mm
Blade diameter	260 mm
Dust bag included	JM23100501
Saw blade included	Yes
Idle speed (max)	4300 RPM

Weight and Dimensions

Depth	536 mm
Width	825 mm
Height	633 mm
Weight	19800 g
