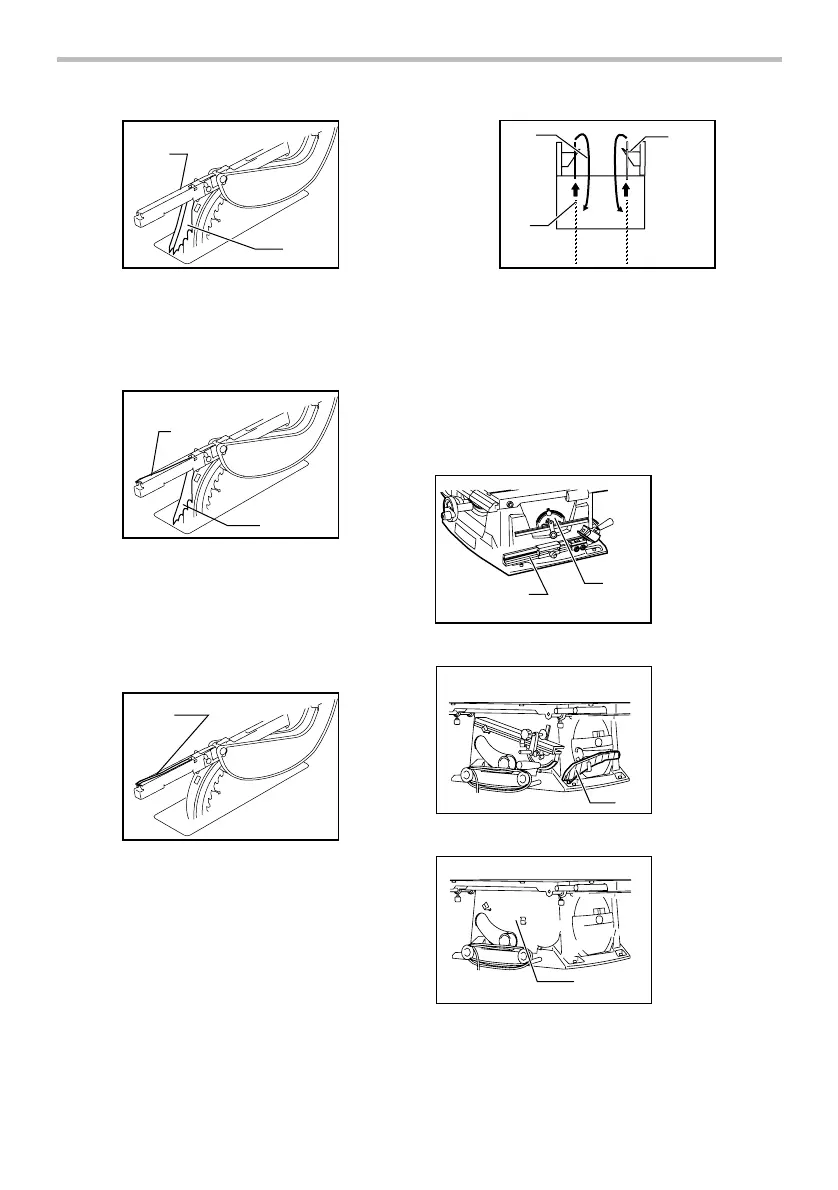

Makita MLT100 User Manual

11
1
2
Fig.1
008936
1
2
Fig.2
008937
1
Fig.3
008938
1
2
3
Fig.4
008939
Storage of Blade Guards and Accessories
1
2
008759
1
009696
1
009913
1. Table saw blade
gurad assembly
and side gurd
storage
1. Push stick
1. Rip fence
(Guide rule)
2. Miter gauge
1. The blade guard assembly item 1 is provided with two
on board antikickback pawls item 2. The pawls are
located on either side of the blade and can be stored
or put into operation independently for ease of
operation
1. Item 1 illustrates the antikickback pawl on the right
side of the blade being lifted and placed into the pawl
holder located at the back of the blade guard
assembly.
2. In addition item2 illustrates the antikickback pawl on
the left side of the blade remaining in the operational
position.
1. Item 1 demonstarates both antikickback pawls being
lifted and placed into the pawl holders located at the
back of the blade guard assembly for storage
1. Item 1 indicates the location of the antikickback pawl
holders located at the back of the blade guard
assembly
2. Item 2 points to the arrow direction which should be
followed when taking the pawls out of the storage
position and placing them into operation
3. Item 3 indicates the direction of which the pawls
should be lifted when storing and placing them into
the antikickback pawl holders

Makita MLT100 Specifications

General

Input power	1500 W
Idle speed (max)	4300 RPM
Cutting depth (45º)	64 mm
Cutting depth (90º)	93 mm
Saw blade included	-
Product color	Blue, Silver

Weight and Dimensions

Depth	726 mm
Width	984 mm
Height	333 mm
Weight	34100 g
Blade diameter	260 mm
Blade diameter (min)	30 mm
