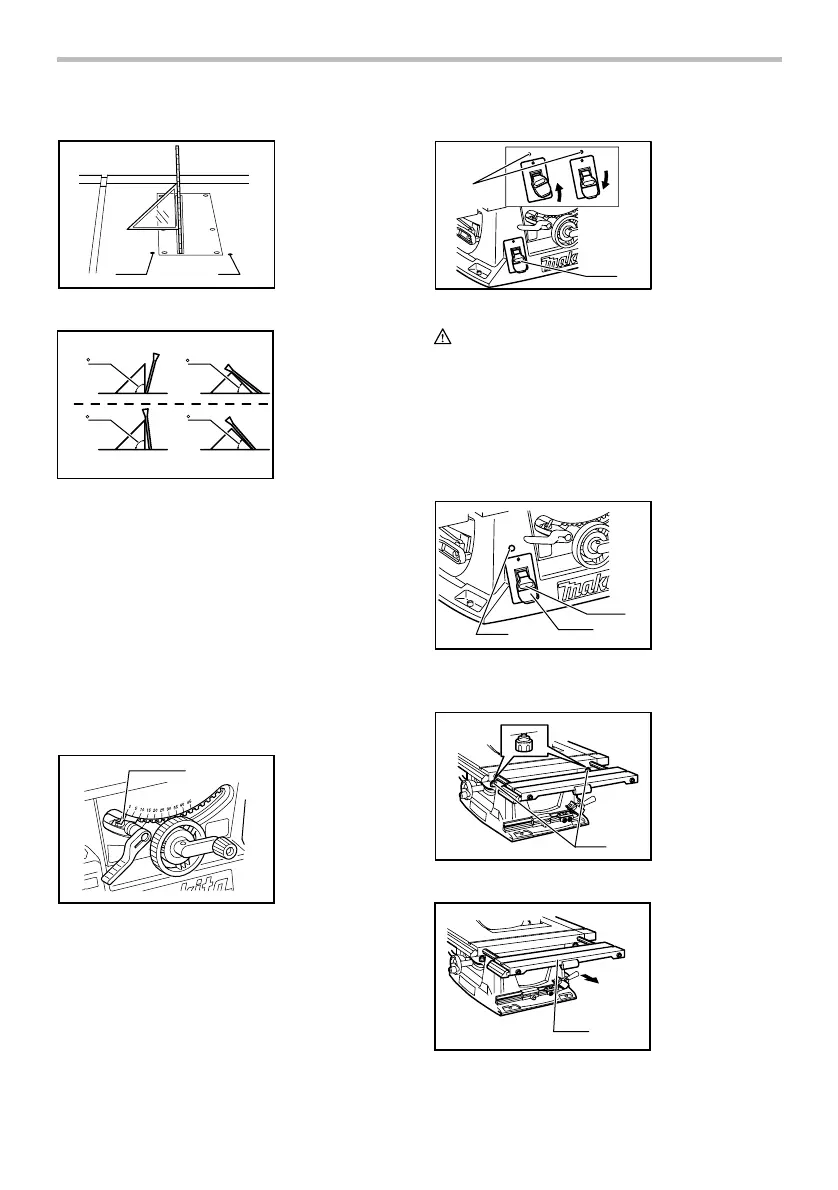

Adjusting positive stops
12
008762
(A)
(B)
90
90
45
45
006157
The tool is equipped with positive stops at 90° and 45° to
the table surface. To check and adjust the positive stops,
proceed as follows:
Move the handwheel as far as possible by turning it.
Place a triangular rule on the table and check to see if
the blade is at 90° or 45° to the table surface. If the blade
is at an angle shown in Fig. A, turn the adjusting screws
clockwise; if it is at an angle shown in Fig. B, turn the
adjusting screws counterclockwise to adjust the positive
stops.
After adjusting the positive stops, set the blade at 90° to
the table surface. Then adjust the arrow pointer so that
its right edge is aligned to the 0° graduation.
1
008763
Switch action
ON
OFF
1
2
009028
CAUTION:
• Before plugging in the tool, always be sure that the
tool is switched off.
• Switch off the tool and then press in the restart
button.
To start the tool, raise the switch lever. To stop it, lower
the switch lever.
Removing the upper yellow part of the switch allows the
tool not to start.
1
2
3
009046
Sub table (R)
1
008765
1
008766
1. Sub table (R)
1. Screws
1. Switch
2. Restart button
3. Upper yellow
part of the
switch
1. Switch
2. Restart button
1. Arrow pointer
1. 90 ﾟ adjusting
screw
2. 45 ﾟ adjusting
screw

Makita MLT100 Specifications

General

Input power	1500 W
Idle speed (max)	4300 RPM
Cutting depth (45º)	64 mm
Cutting depth (90º)	93 mm
Saw blade included	-
Product color	Blue, Silver

Weight and Dimensions

Depth	726 mm
Width	984 mm
Height	333 mm
Weight	34100 g
Blade diameter	260 mm
Blade diameter (min)	30 mm
