Makita MLT100 User Manual

7

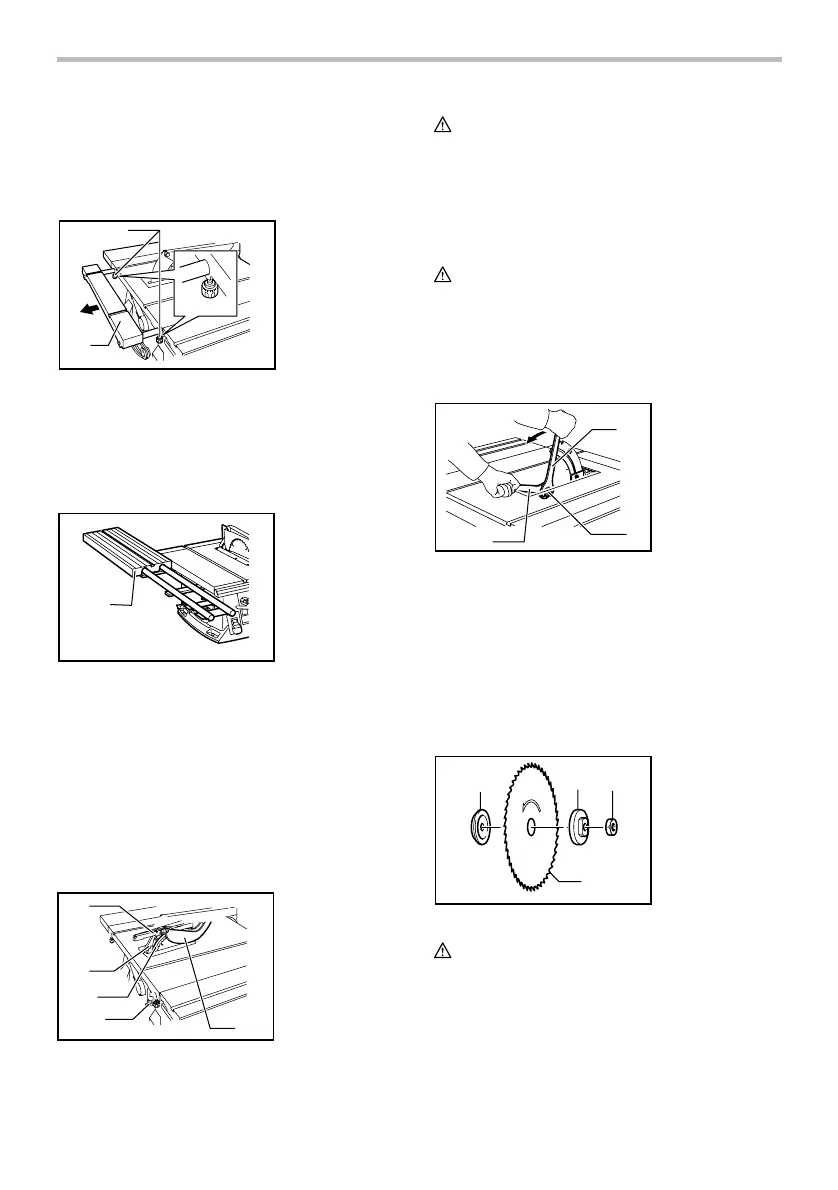

This tool is provided with the sub table (R) on the right
side of the main table. To use the sub table (R), loosen
two screws on the right side counterclockwaise, pull out
the table (R) fully and then tighten the two screws.
Sub table (back)
1
2
008768
To use the sub table (back), loosen the screws on the left
and right hand sides under the table and pull it out
backwards to the desired length. At the desired length,
tighten the screw securely.
Slide table
1
009707
This tool is provided with the slide table on the left side.
The slide table slides back and forth.
Hold workpiece firmly with the miter gauge using a
clamp on the miter gauge and slide the workpiece
together with the slide table at the time of cutting
operation.
ASSEMBLY
Overview of Table Saw Blade Guarding
System
1
2
3
4
5
009912
WARNING:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
The saw blade and blade guard are not installed on the
tool when it is shipped from the factory.
Installing or removing saw blade
WARNING:
• Always be sure that the tool is switched off and
unplugged before installing or removing the blade.
• Use only the Makita socket wrench provided to
install or remove the blade. Failure to do so may
result in overtightening or insufficient tightening of
the hex bolt. This could cause an injury.
1
2
3
009892
Remove the table insert on the table. Hold the outer
flange with the wrench and loosen the hex nut
counterclockwise with the wrench. Then remove the
outer flange.
Assemble the inner flange, blade, outer flange and hex
nut onto the arbor, making sure that the teeth of the
blade are pointing down at the front of the table. Always
install the hex nut with its recessed side facing the outer
flange.
12
3
4
006136
CAUTION:
• Keep the flange surface clean of dirt or other
adhering matter; it could cause blade slippage. Be
sure that the blade is installed so that the teeth are
aligned in the cutting (turning) direction.
1. Inner flange
2. Outer flange
3. Saw blade
4. Hex nut
1. Wrench
2. Hex nut
3. Wrench
1. Table saw blade
guard assembly
2.
Antikickback pawls
3. Riving knife / spreader
4. Riving knife /
spreader release
lever location
5. Table saw blade
side guards
1. Slide table
1. Screws
2. Sub table (back)

Makita MLT100 Specifications

General

Input power	1500 W
Idle speed (max)	4300 RPM
Cutting depth (45º)	64 mm
Cutting depth (90º)	93 mm
Saw blade included	-
Product color	Blue, Silver

Weight and Dimensions

Depth	726 mm
Width	984 mm
Height	333 mm
Weight	34100 g
Blade diameter	260 mm
Blade diameter (min)	30 mm
