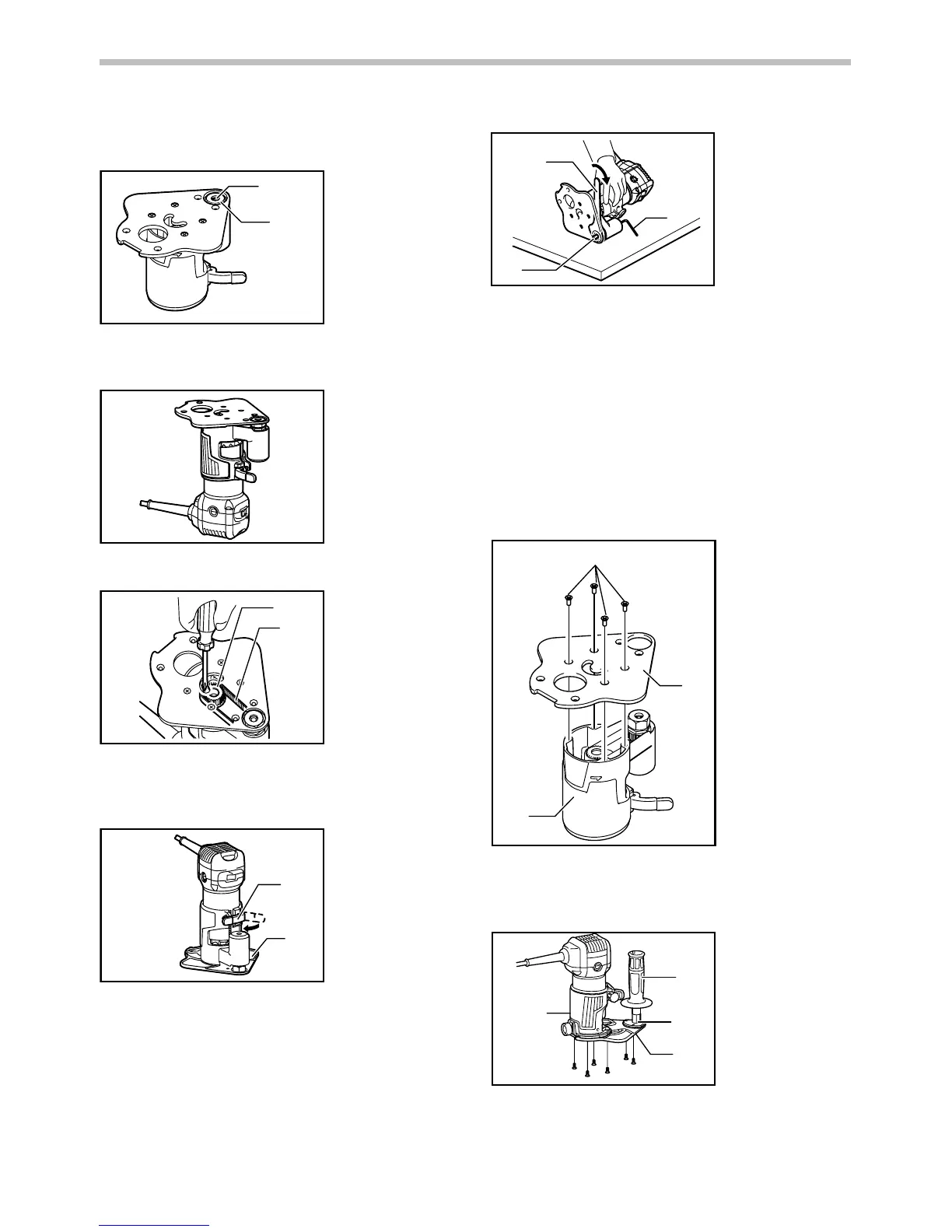

Install the pulley on the tool by pressing the shaft lock
and firmly tightening the pulley with a wrench.
1
2
011859
Place the collet cone and screw the collet nut on the
offset base as shown in the figure.
011860
Mount the tool on the offset base
1
2
011861
Put an end of the belt over the pulley using a screwdriver
and make sure that its entire belt width fits over the
pulley completely.
1
2
011862
Secure it with a locking lever on the offset base.
1
2
3
011992
To install the bit, fall the tool with the offset base on its side.
Insert the hex wrench into the hole in the offset base.
With the hex wrench held in that position, insert the bit
into the collet cone on the shaft of the offset base from
the opposite side and tighten the collet nut firmly with a
wrench.
To remove the bit at replacement, follow the installation
procedure in reverse.
(2) Offset base (optional accessory) can also be
used with a trimmer base and a grip
attachment (optional accessory) for more
stability.
1
2
3
011934
Loosen the screws and remove the upper section from
the offset base. Put aside the upper section of the offset
base.
1
2
3
4
011935
1.
Bar type grip
(optional accessory)
2.
Grip attachment
(optional accessory)
3.
Offset base plate
4.
Trimmer base
assembly (optional
accessory)
1. Screws
2. Offset base
plate
3. Upper section o
f
the offset base
1. Wrench
2. Hex wrench
3. Bit
1. Locking lever
2. Offset base
1. Pulley
2. Belt
1. Collet nut
2. Collet cone

Makita RT0700C Specifications

General

Power Input	710W
No Load Speed	10, 000 - 30, 000 RPM
Power Source	Corded
Voltage	230V
Collet Capacity	6mm
Overall Length	200mm
Net Weight	1.8 kg
