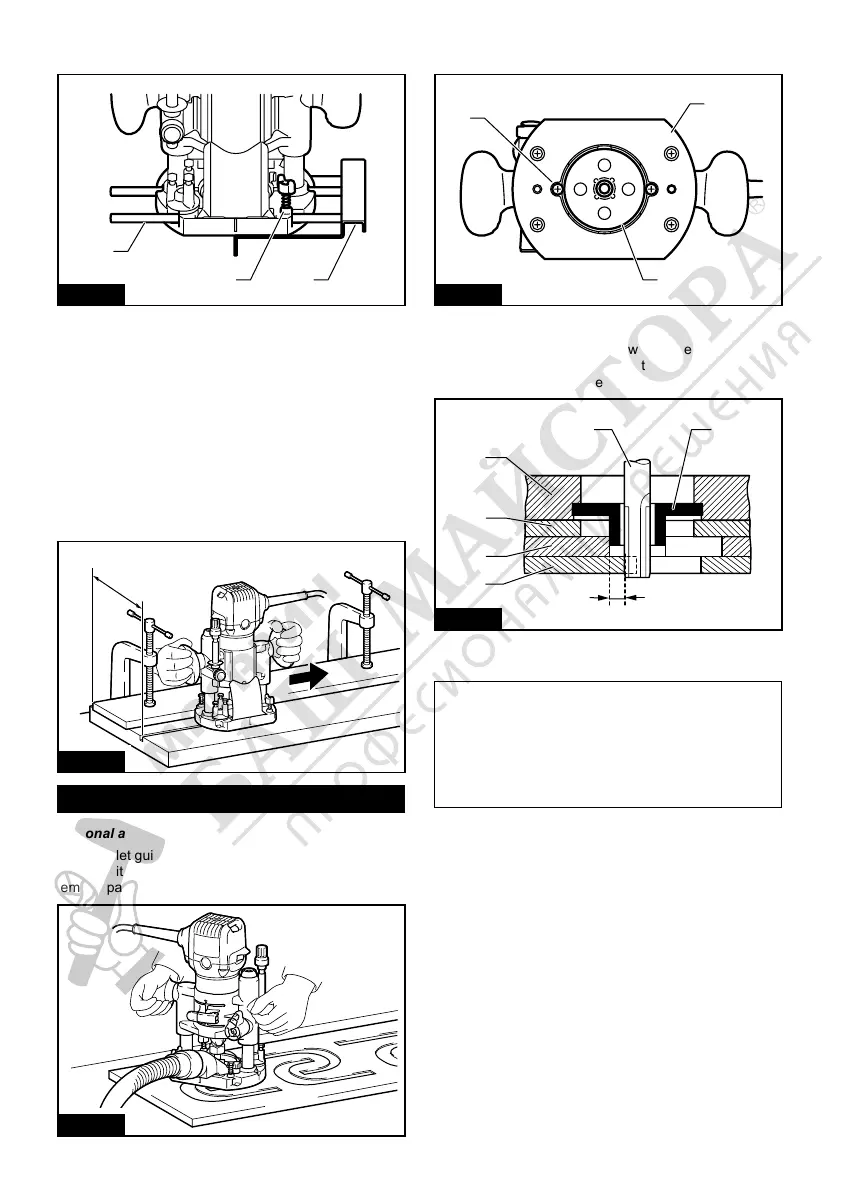

1. Insert the guide bars into the holes in the plunge
base.
1
2
3
Fig.48
► 1. Guide bar 2. Wing nut 3. Straight guide
2. Adjust the distance between the trimmer bit and
the straight guide. At the desired distance, tighten the
wing nuts to secure the straight guide in place.
3. When cutting, move the tool with the straight guide
ush with the side of the workpiece.
If the distance between the side of the workpiece and the
cutting position is too wide for the straight guide, or if the
side of the workpiece is not straight, the straight guide
cannot be used. In this case, rmly clamp a straight board
to the workpiece and use it as a guide against the router
base. Feed the tool in the direction of the arrow.
Fig.49
Templet guide
Optional accessory
The templet guide provides a sleeve through which the
trimmer bit passes, allowing use of the trimmer with
templet patterns.
Fig.50
1. Loosen the screws on the tool base, insert the
templet guide and then tighten the screws.
1
2
3
Fig.51
► 1. Screw 2. Base 3. Templet guide
2. Secure the templet to the workpiece. Place the
tool on the templet and move the tool with the templet
guide sliding along the side of the templet.
1
2
3
5
6
4
(X)
Fig.52
► 1. Trimmer bit 2. Base 3. Base protector 4. Templet
5. Workpiece 6. Templet guide
NOTE: The workpiece will be cut a slightly dierent
size from the templet. Allow for the distance (X)
between the trimmer bit and the outside of the templet
guide. The distance (X) can be calculated by using
the following equation:
Distance (X) = (outside diameter of the templet
guide - trimmer bit diameter) / 2
