17 ENGLISH

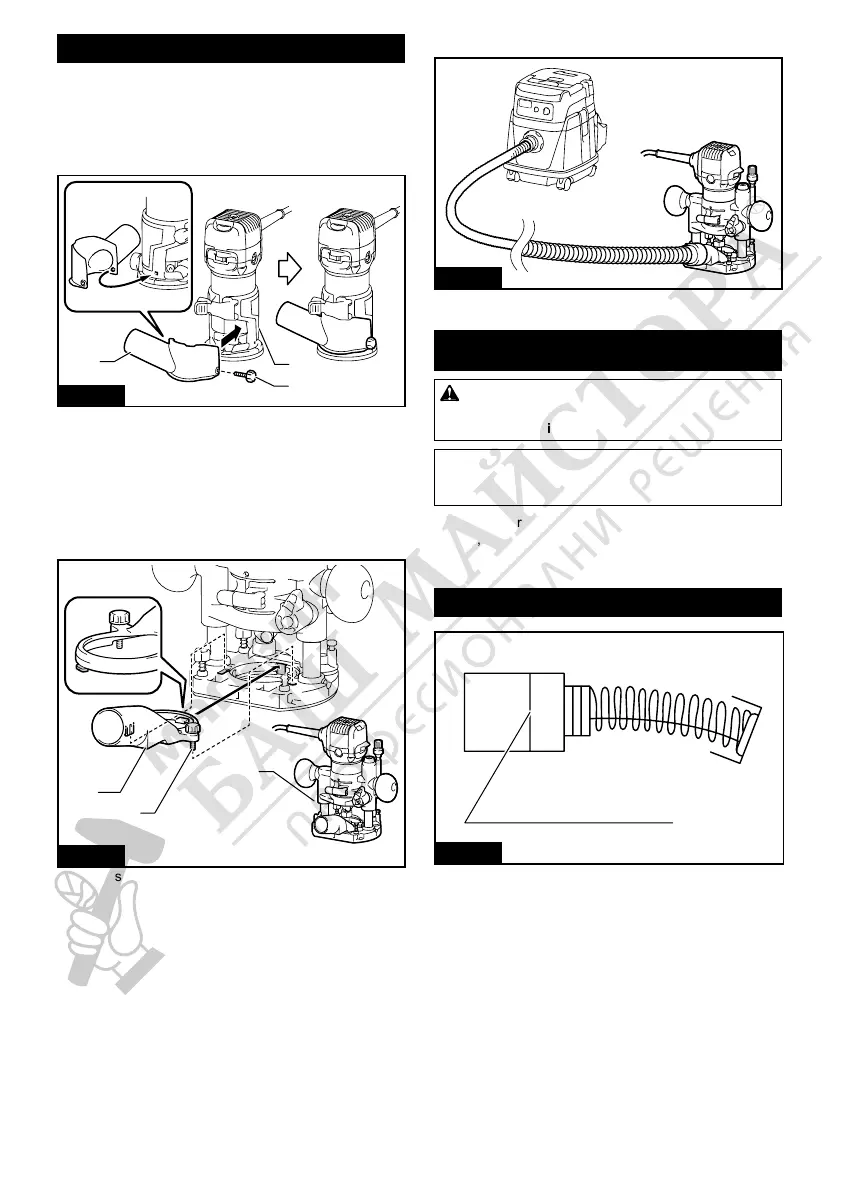

Dust nozzle sets
Use the dust nozzle for dust extraction.
For the base
Install the dust nozzle on the tool base using the thumb
screw.
1
2
3
Fig.53
► 1. Dust nozzle 2. Thumb screw 3. Base
For the plunge base
Optional accessory
1. Install the dust nozzle on the plunge base using
the thumb screw so that protrusion on the dust nozzle t
to the notch in the plunge base.
1
2
3
Fig.54
► 1. Dust nozzle 2. Thumb screw 3. Plunge base
2. Connect a vacuum cleaner to the dust nozzle.
Fig.55
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o and unplugged before attempting to
perform inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
Replacing carbon brushes
1
Fig.56
► 1. Limit mark
Check the carbon brushes regularly.
Replace them when they wear down to the limit mark.
Keep the carbon brushes clean and free to slip in the
holders. Both carbon brushes should be replaced at the
same time. Use only identical carbon brushes.
1. Use a screwdriver to remove the brush holder
caps.
