41 03/09
125 - 160 cc
BlogBlog
BlogBlog
Blog
F. 8 3
F. 8 5
H
P
I

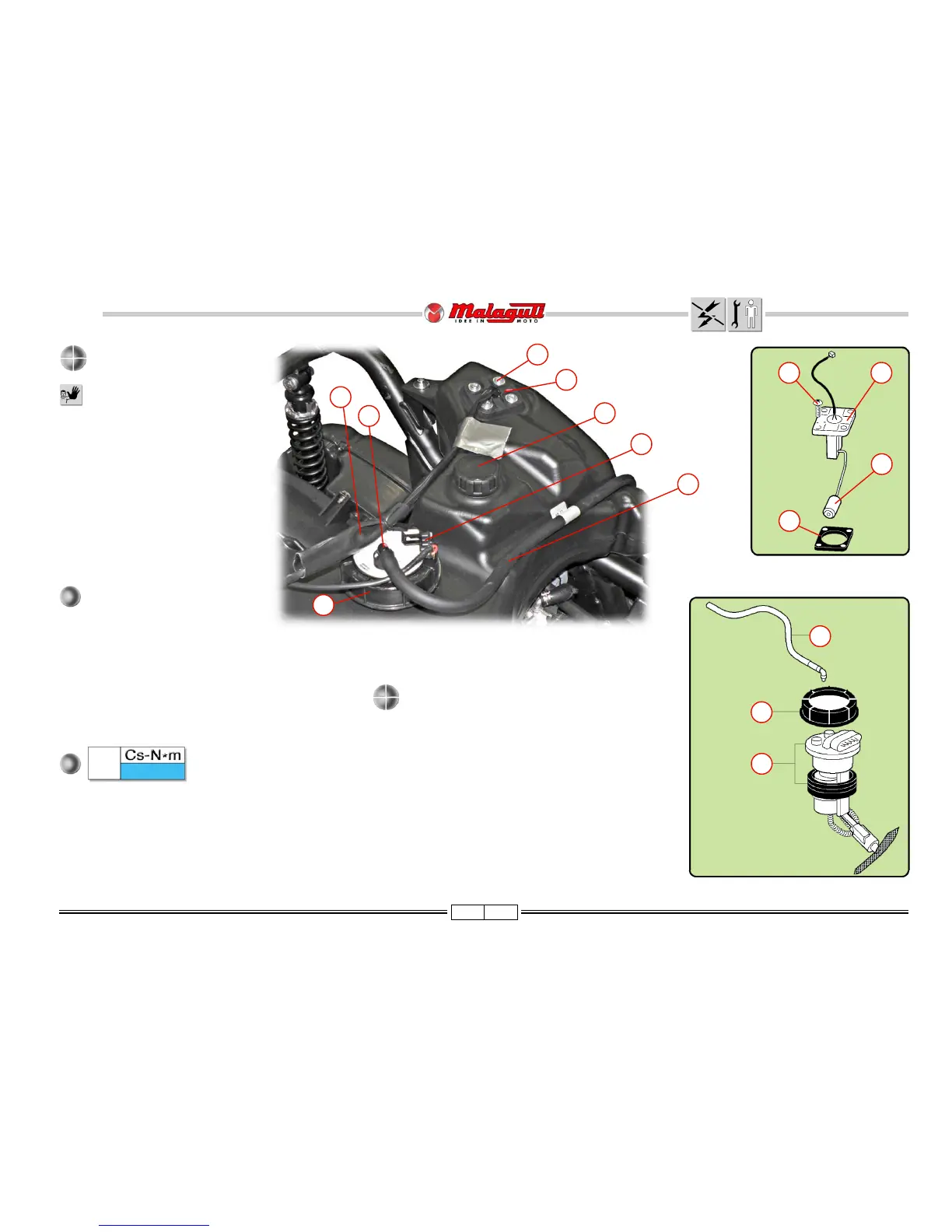

FUEL LEVEL
SENSOR
Do not smoke or use open flames,
during operations on the fuel tank.
• During operations, screw the tank cap
(A), to avoid that any foreign matter
falls inside.
• Remove the sheaths (B) and disconnect
the connector located below.
• V4.
• Remove the sensor (D).
V4
2 ± 10%
F. 8 4
D
E
F
FUEL PUMP
• Disconnect the connector (G).
• Disconnect the gas hose (H), pressing on the fitting
with one finger (R). Keep a rag close by to swab up any
leaking fuel.
• Unscrew the ring nut (I).
• Take out the pump (P).
V4
V4
When reassembling, insert the
floater (E) so that the base (D)
remains as it was originally. It is
advisable to mark the correct
position before removal. Check the
condition of the gaskets (F) and
replace them if necessary.
A
B
H
R
D
G
I
