5.2 Operating Mode
This operator has a floor level hoist engagement lever to:
– disconnect the door from the electrical motor
– release the brake
– engage the manual hoist mechanism, see Figure 12
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information

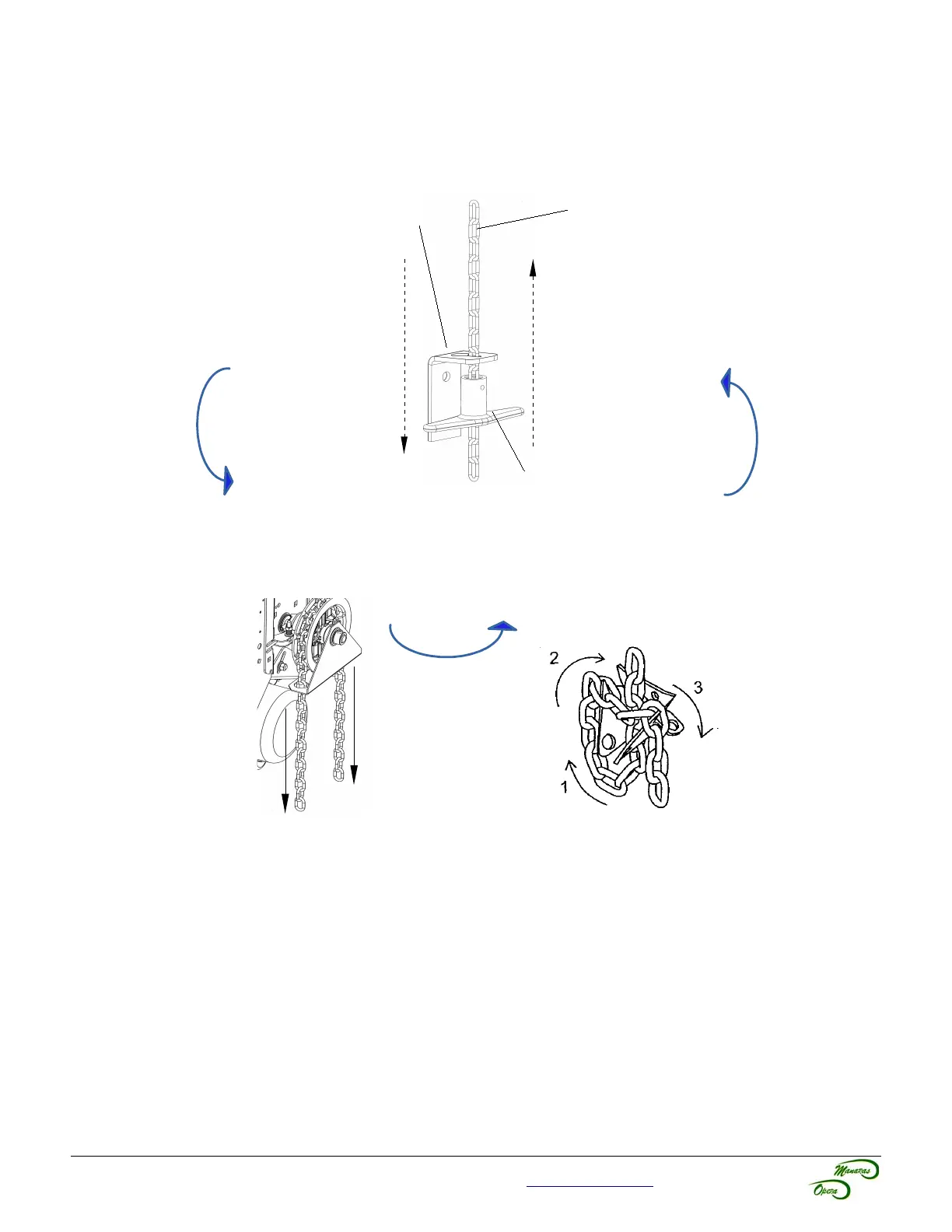

Figure 12 - Hoist Engagement and Hoist Operation
Pull the handle and
attach the disconnect
chain to the chain
keeper for manual
operation.
Release the tension from
the disconnect chain to
return to electrical mode.
Chain Keeper
Disconnect Chain
Handle
2. Manual Mode 3. Storage
PULL
PULL
STORE
STORE
Pull chain on either side
to operate door.
Follow the 3 steps shown below to
attach the chain (when not in use)
to the chain keeper.
1. Engagement 4. Return to Electrical Mode
