41
3 Electrical Drawings

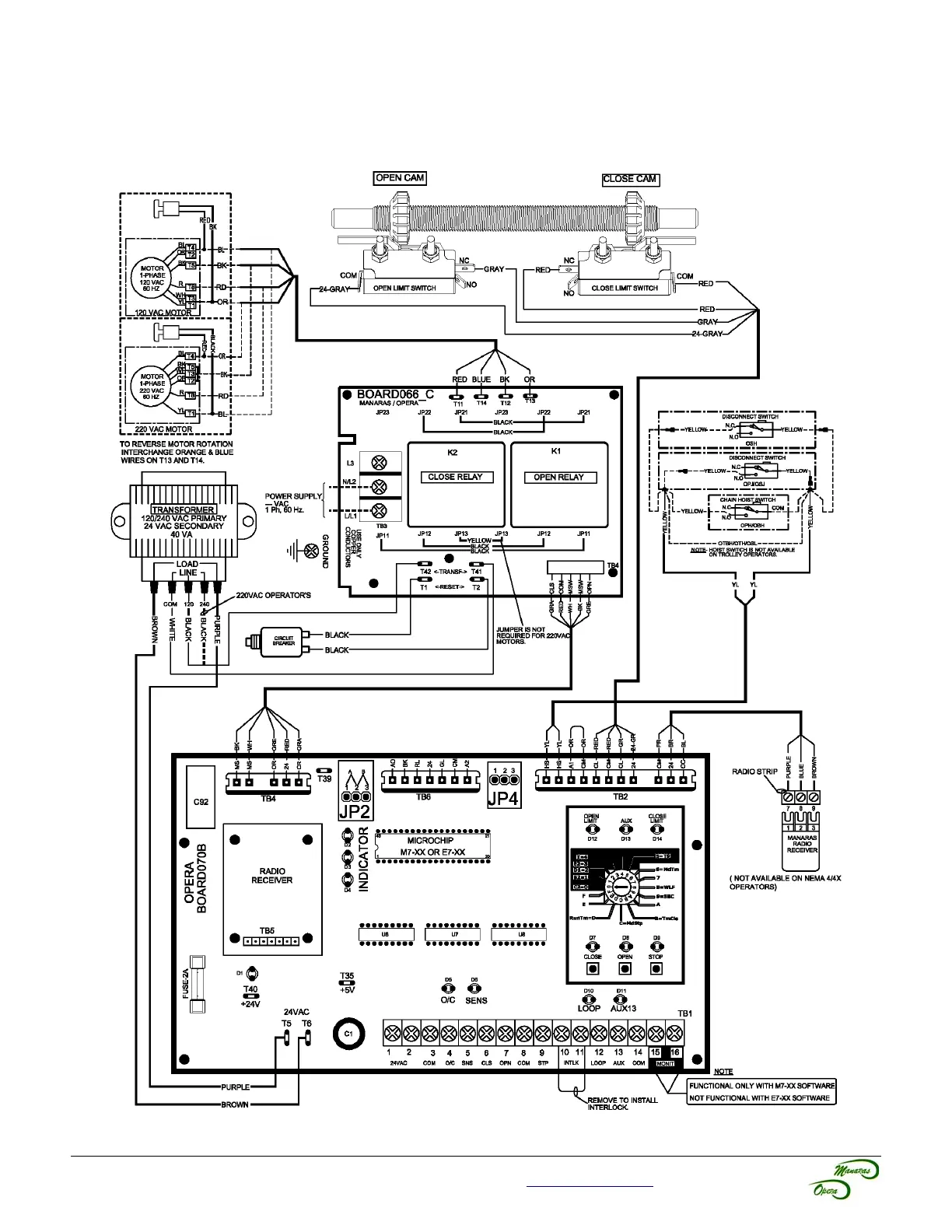

3.1 1 Phase Operator with BOARD 070M
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information
Figure 41 - EDWG1107006601
