4.2 MSJ Frame Assembly View
Table 17 - MSJ Frame Assembly Replacement Components
No Qty Description
Manaras-Opera
Part #
No Qty Description
Manaras-Opera
Part #
1 4 2-BOLT FLANGE BEARING ID 1" BLACK BEARING047 7 1 MANUAL HOIST COUPLING COUPLING019
2 1 2-BOLT FLANGE BEARING ID 5/8" BLACK BEARING051 8 1 OPERA CLUTCHPLATE CLUTCHPLATE006
3 2 5/8-18 HEX JAM NUT ZP NUT013 9 1 OPERA POCKETWHEEL POCKETWHEEL005
4 1 CHAIN GUIDE OPERA GUIDE014 10 1 PULLEY 7" x 5/8" 5L/B PULLEY020
5 1 CL.PAD 5/8x4x0.125" CLUTCHPAD005 11 1
SNAP-ACT. SW.SPDT-LEVER "END
BEND"
LIMIT025B
6 1 COMP. SPRING DISC. OSH SPRING043 1 CLUTCH & HOIST SHAFT KIT MOUNTSHAFT016
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information

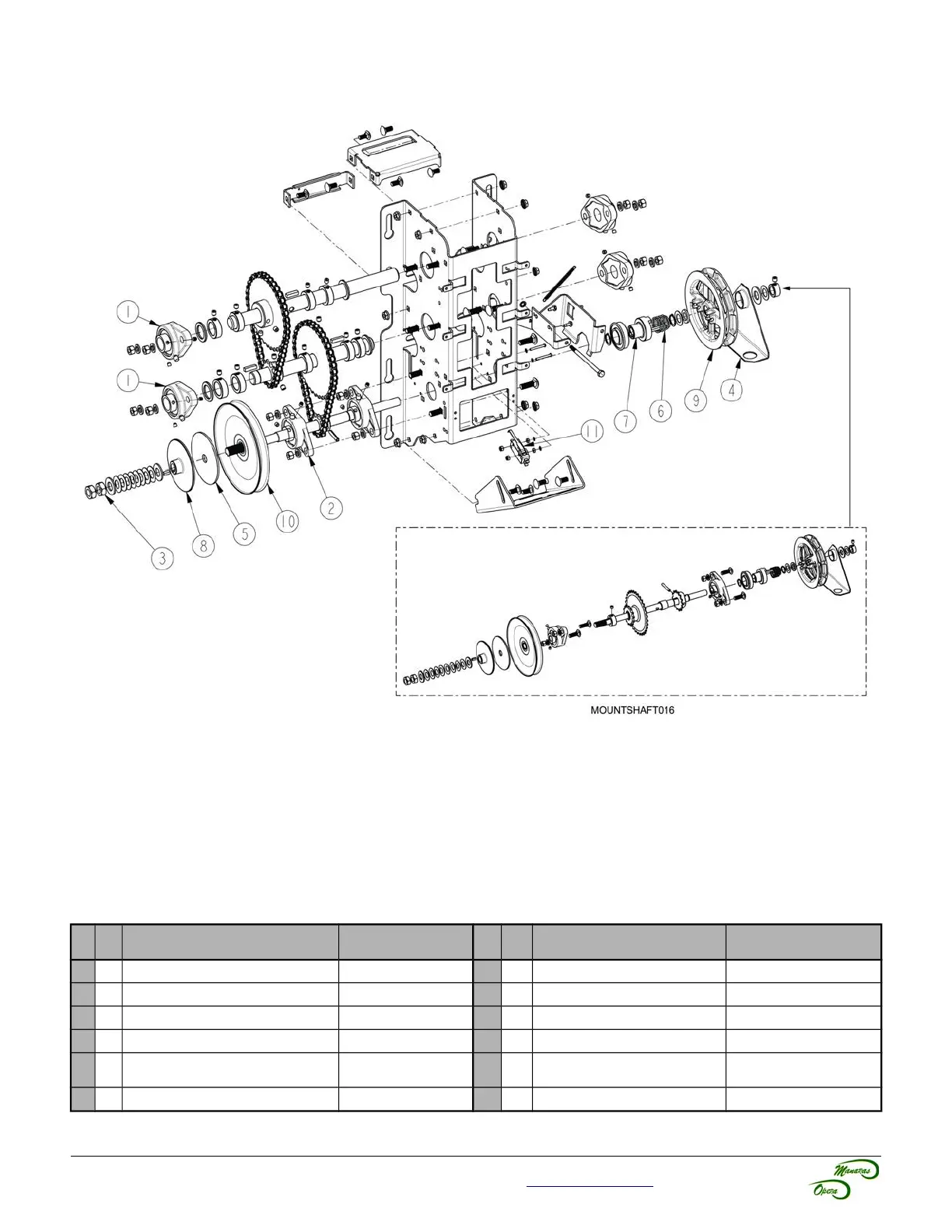

Figure 45 - MSJ Frame Assembly Mechanical Exploded View
