18
7.5 Optional Accessory Connections
NOTICE
• If the door is controlled by any device other than a constant pressure push-button station on close,
including a timer-to-close, an entrapment protection device must be connected.
• Photoelectric cells must be installed facing each other across the door's path within 6” (15 cm) of the
plane of the door and the beam no more than 5-3/4” (14,6 cm) above the floor.

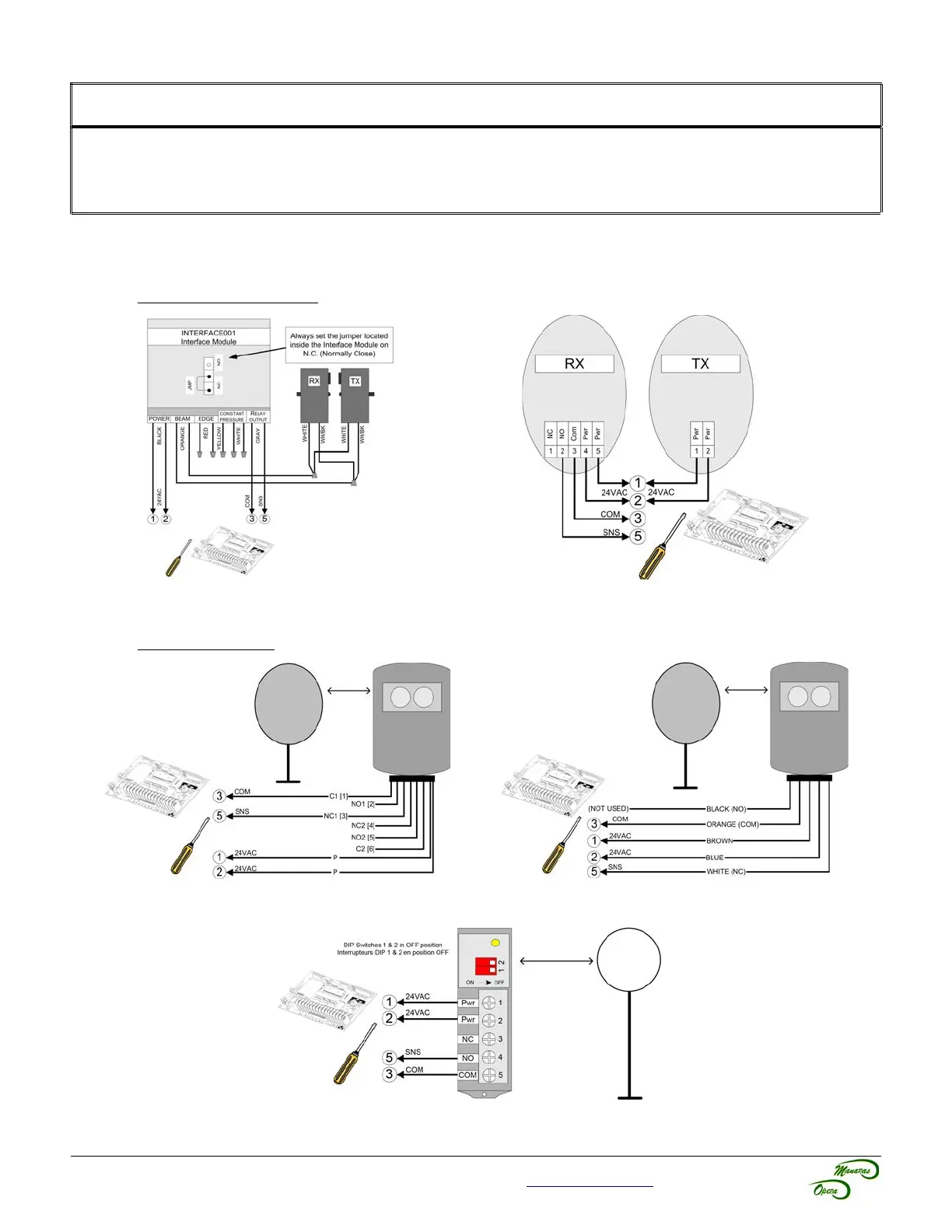

7.5.1 Electric Photo Cells / Photo Eyes (Non-Monitored)
Through Beam Type
Figure 25 - PHOTO 008A/B Figure 26 - PHOTO 015 / 016 / 045 / 050 / 051 / 059
Reflective Type
Figure 27 - PHOTO 018
Figure 29 - PHOTO 038
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information
Figure 28 - PHOTO 060
