4.3 Opera Brake (BRAKE 013)
Table 18 - BRAKE 013 Replacement Components
No Qty Description
Manaras-Opera
Part #
No Qty Description
Manaras-Opera
Part #
1
1 #50 CONNECTING LINK 50-1 LINK011
7
1 PLATED BRAKE PLATE PLATE084
2
1 ADJUSTMENT BRAKE LEVER LEVER064
8
1 PLATED SOLENOID COVER COVER048
3
1 BRAKE BAND ASSEMBLY HEAVY DUTY BRAKEPART019
9 1 SOLENOID SEE Table 20
4
1 BRAKE LEVER LEVER065
10
1 STEEL BRAKE DRUM ID 0.626 DRUM005
5
1 BRAKE LEVER PIVOT BUSHING053
11
1
TROLLEY ARM DISCONNECT
SPRING
SPRING026
6
1 PIN COTTER 1/8 X 1-1/2 PIN001
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information

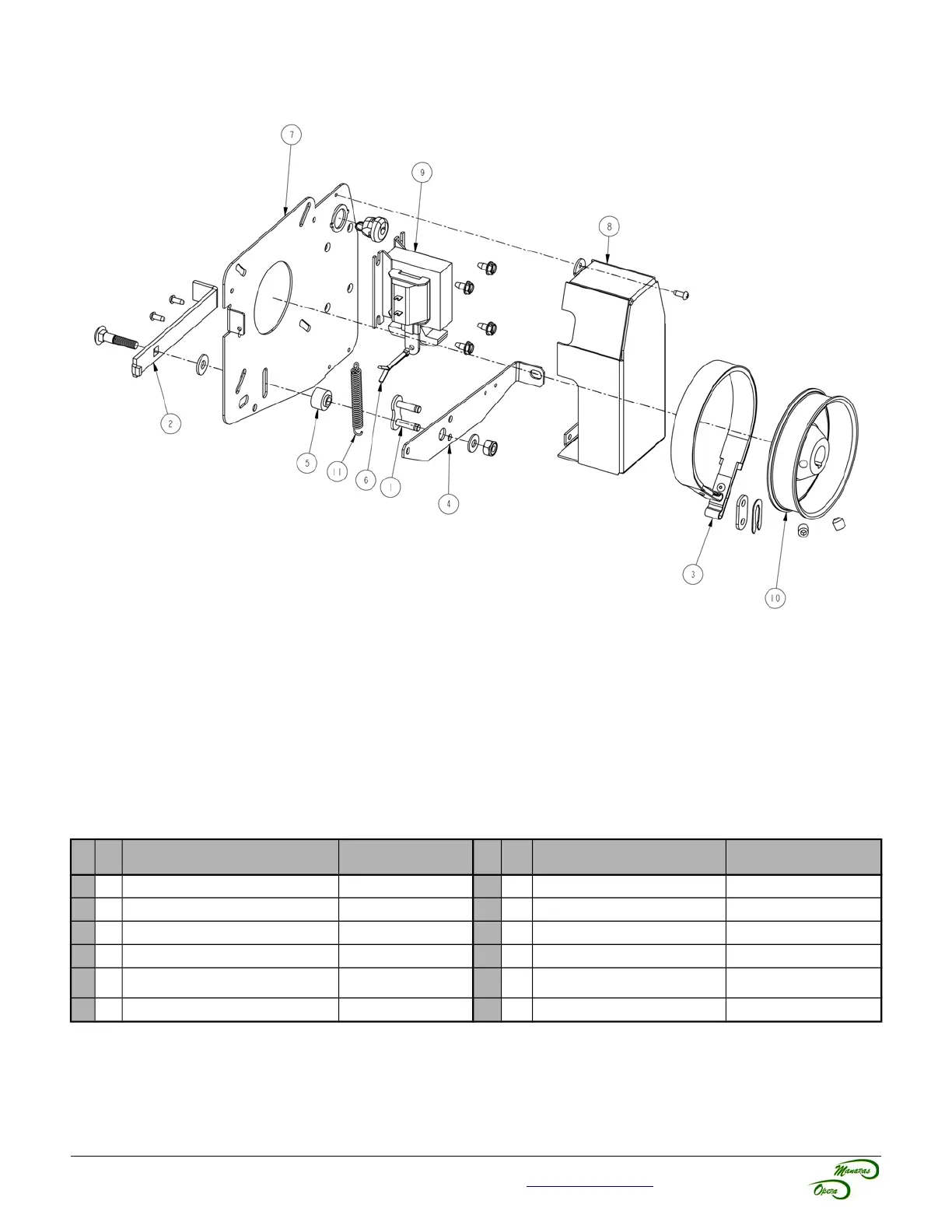

Figure 46 - BRAKE 013 Mechanical Exploded View
