4 Mechanical Exploded Views and Replacement Components

4.1 MSJ General View

Table 16 - MSJ General Replacement Components

No Qty Description

Manaras-Opera

Part #

No Qty Description

Manaras-Opera

Part #

1 1 BX SECTION COGGED V-BELT VBELTBX30 5 1 MSJ FRAME SEE Table 17

2 1 CBOX ABS/PC COVER COVER047 1 OPERA LIMIT SHAFT KIT MOUNTSHAFT018

3 1 MOTOR SEE Table 20 1 BRAKE ASSEMBLY KIT (#101-103)

BRAKE013

SEE Table 18

4 1 MOTOR PULLEY 2.0 x 5/8 5L STL PULLEY014

For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information

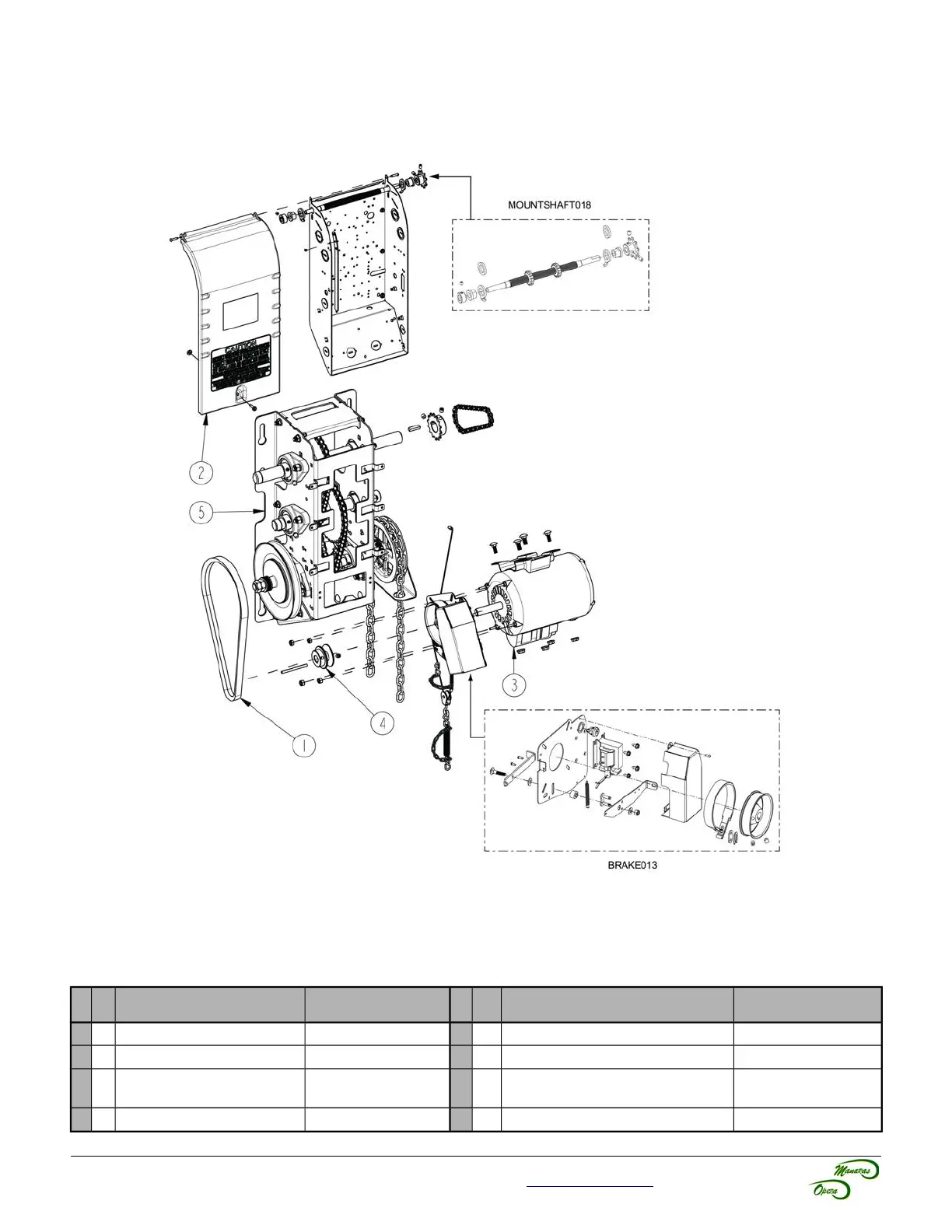

Figure 44 - MSJ General Mechanical Exploded View
