20

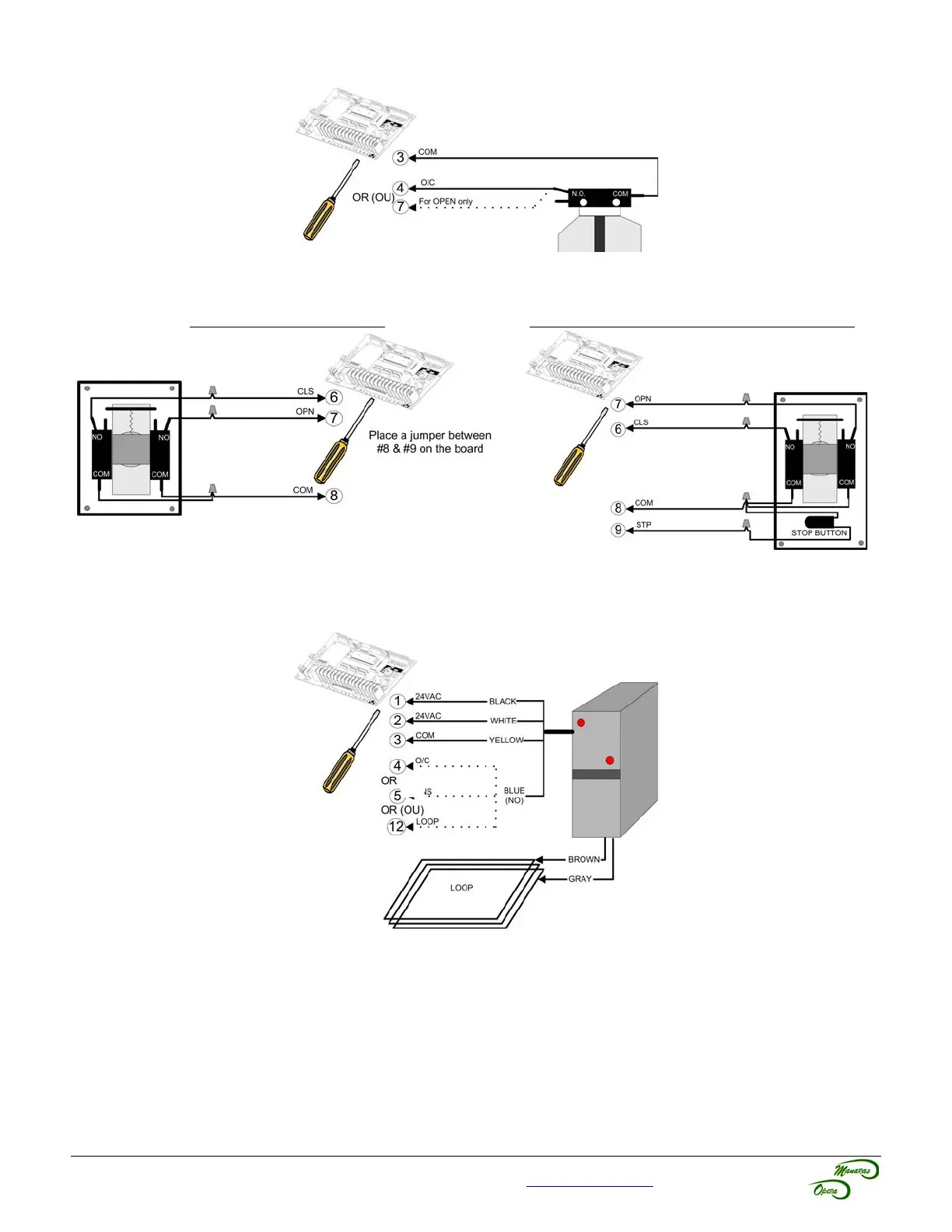

7.5.3 Pull Cord & Key Switch
Figure 34 - PULLCORD 001 / 003 / 004 / 007
Figure 35 - KEYSWITCH 010 / 015
Figure 36 - KEYSWITCH 019
7.5.4 Vehicle Loop Detector
Figure 37 - Vehicle Loop Detector
For additional accessories, please contact your dealer or our inside sales department at 1-800-361-2260 for further
information.
For technical support, please call 1-800-361-2260 or visit www.manaras.com for more information
2-Position Key Switch
2-Position Key Switch & Stop Button
Twist the two (2) leads (wires) a
minimum of 6 twists/foot
Recommendation: Put Control Board on C2
or E2 Mode (constant-pressure-to-close)
To Next Page
