Mandik FDMR - Page 14

FDMR - Fire damperPage 14 Version 2022-12-20
TPM 165/22
300
50 50
130
130
110
400
X
ØD-2
300
50 50
110 136
400
39
X
ØD-2
300
50
X
110
400
180
50
ØD-2

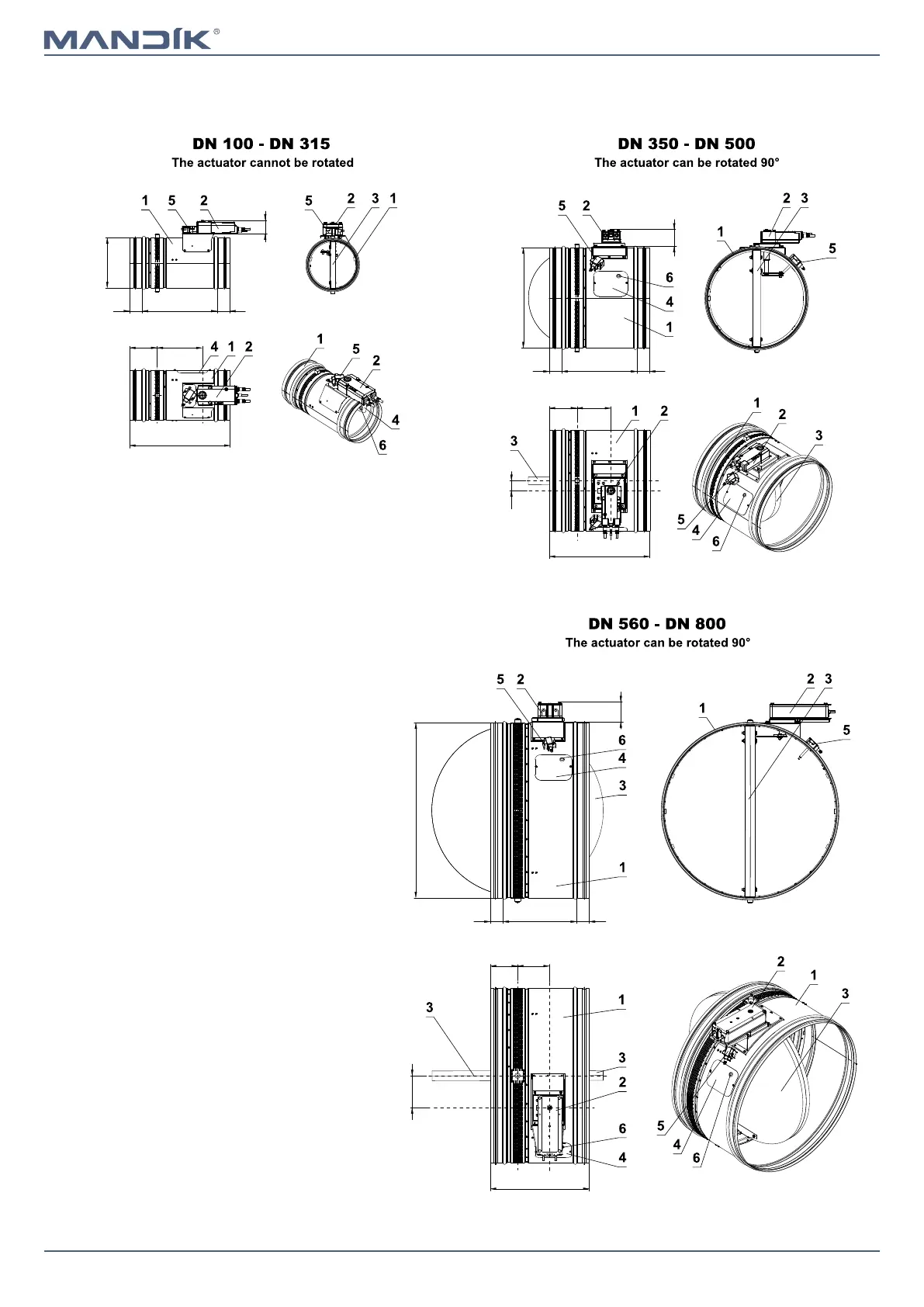

SPIRO design with actuating mechanism
1 Damper casing
2 Actuating mechanism
3 Damper blade
4 Inspection hole covering
5
BAT thermoelectrical starting mechanism
6 Hole for camera
X=53 mm (BFL) *
X=72 mm (BFN) *
X=78 mm (BF) *
* Assignment of actuating mechanisms to individual sizes → see page 17
