Mandik FDMR - Page 15

Page 15Version 2022-12-20 FDMR - Fire damper
TPM 165/22
Ød
[mm]
Ød1
[mm]
Ød2
[mm]
n
number of holes
in the flange
100 130 10 4
125 155 10 8
160 195 10 8
180 215 10 8
200 235 10 8
225 260 10 8
250 285 10 8
280 315 10 8
300 335 10 8
315 350 10 12
355 390 10 12
400 445 12 12
450 495 12 12
500 545 12 16
560 605 12 16
600 650 12 16
630 680 12 16
710 760 12 20
800 860 12 20
Ød
Ød1
Ø
d2/n
400
130
130
110
X
Ø
D
400
Ø
D
110 136
39
X
400
X
110 180
ØD

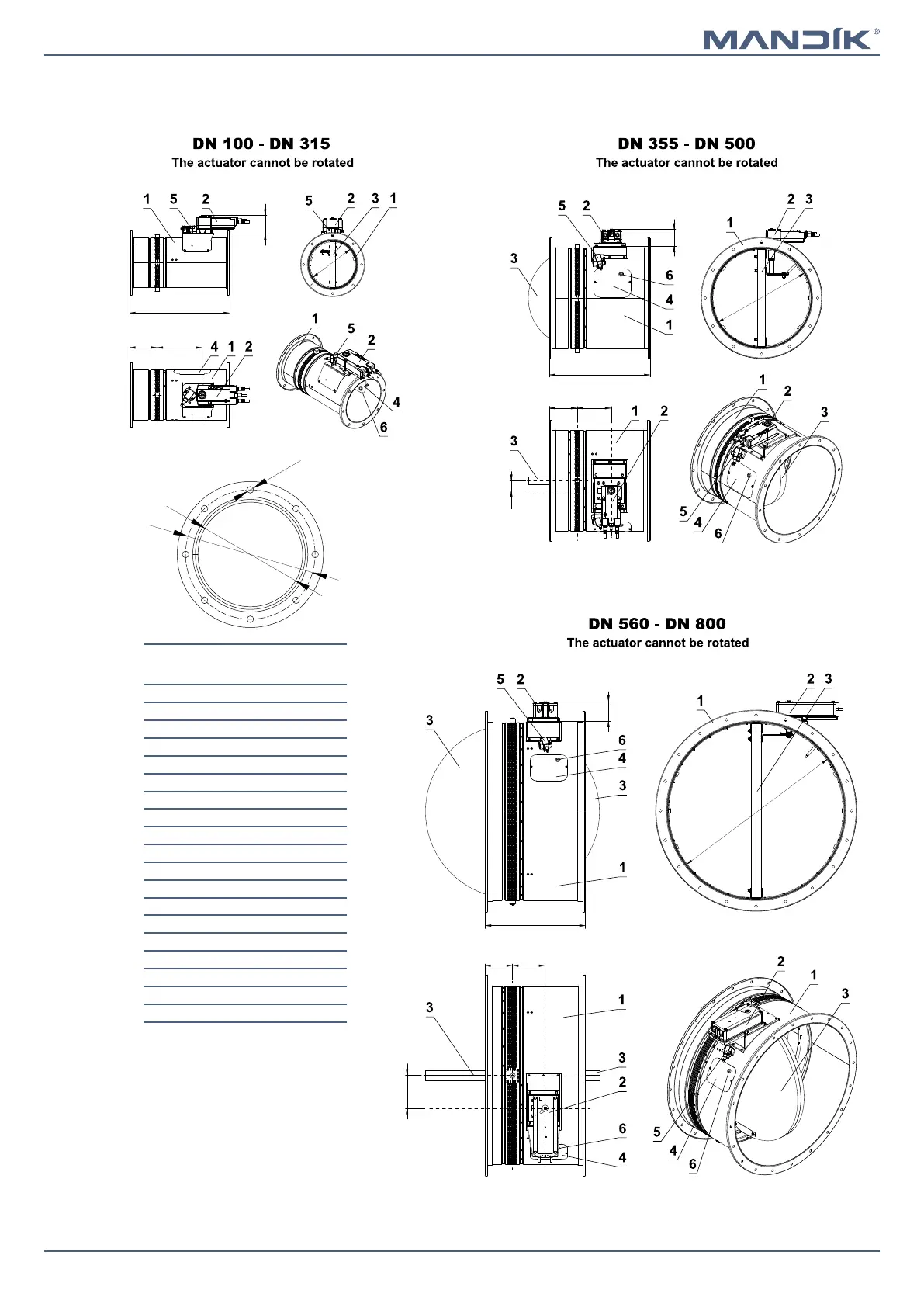

FLANGE design with actuating mechanism
1 Damper casing
2 Actuating mechanism
3 Damper blade
4 Inspection hole covering
5
BAT thermoelectrical starting mechanism
6 Hole for camera
X=70 mm (BFL - DN 100 ÷ DN 315) *
X=53 mm (BFL - DN 355 ÷ DN 400) *
X=72 mm (BFN) *
X=78 mm (BF) *
* Assignment of actuating mechanisms to individual sizes → see page 17
