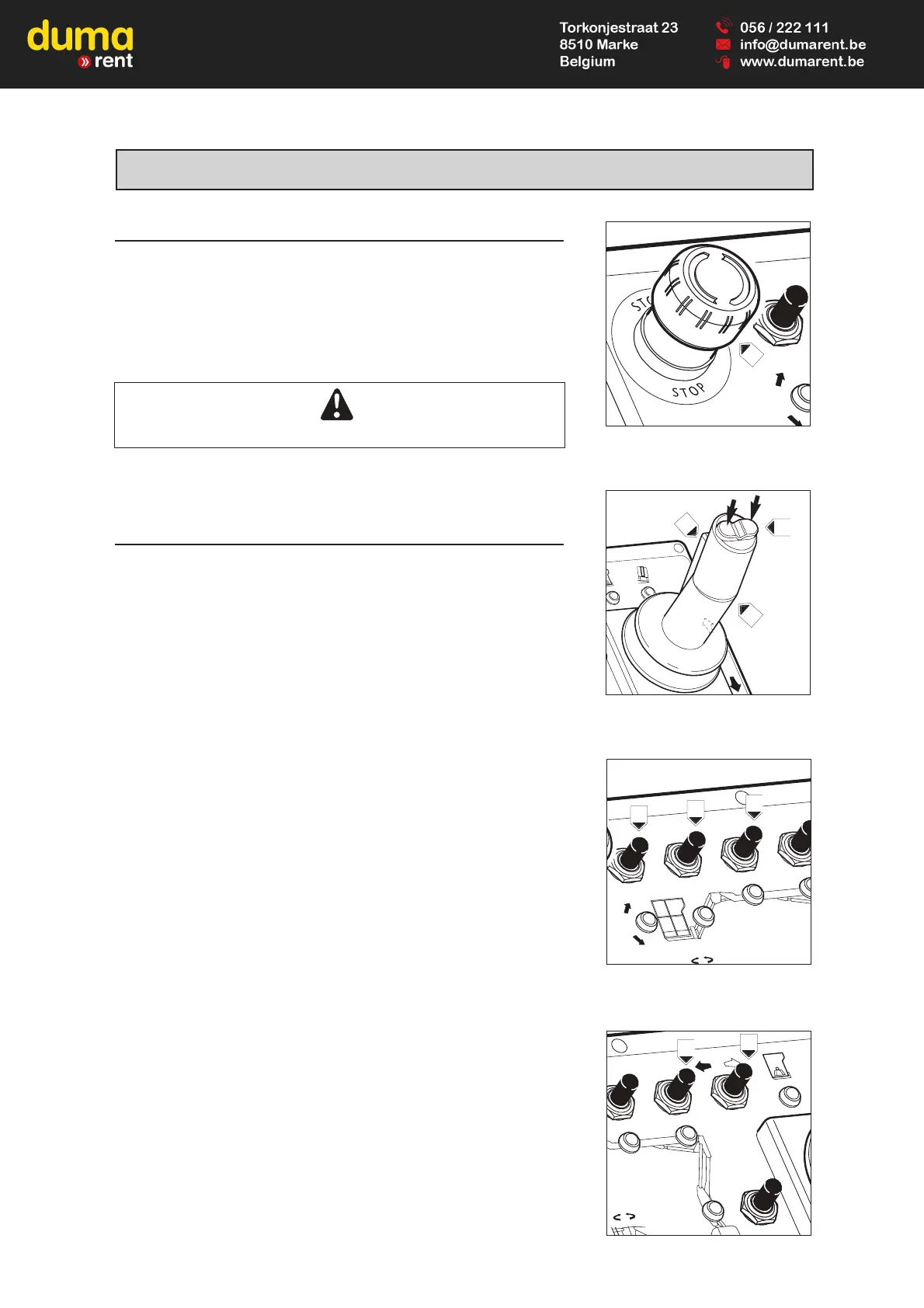

21 - EMERGENCY STOP
This switch is used to stop all the movements of the machine, in the event of
a fault or of a danger.
- Press the button to stop all the movements.
- Turn the button a quater turn to the right to de-activate it. (the switch returns
automatically to its original position).
This command takes priority in all circumstances.
22 - 23 - 24 - 25 - 26 - 27 - 28 - CONTACTOR OF
SELECTION OF MOVEMENTS AND CONTROL SWITCH
NOTE : This control switch is progressive control, and gives a very high
approach accurancy. Its use should be smooth and free of jerkes.
SAFETY TRIGGER
- This trigger (item B) of control control switch 28 must be continually pushed
in to perform movements from the operating of the access platform.
PLATFORM INCLINATION
- Sélect the movement with a brief press on the button 22, the led comes on
for 8 seconds.
- Push (forward) or pull (backward) the switch control 28 to raise or lower.
LIFTING / LOWERING OF THE EXTENSION ARM
- Sélect the movement with a brief press on the button 23, the led comes on
for 8 seconds.
- Push (forward) or pull (backward) the switch control 28 to raise or lower.
OUTPUTS / INPUTS OF THE TELESCOPE
- Sélect the movement with a brief press on the button 24, the led comes on
for 8 seconds.
- Push (forward) or pull (backward) the switch control 28 to go out or go back.
LIFTING / RASING OF THE INFERIOR ARM
- Sélect the movement with a brief press on the button 25, the led comes on
for 8 seconds.
- Push (forward) or pull (backward) the switch control 28 to raise or lower.
FRONT / REAR TRANSLATION
- Sélect the movement with a brief press on the button 26, the led comes on
for 8 seconds.
- Push (forward) or pull (backward) the switch control 28 to advance or
retract.
