Manitou 120 AETJ COMPACT - Page 38

2 - 20

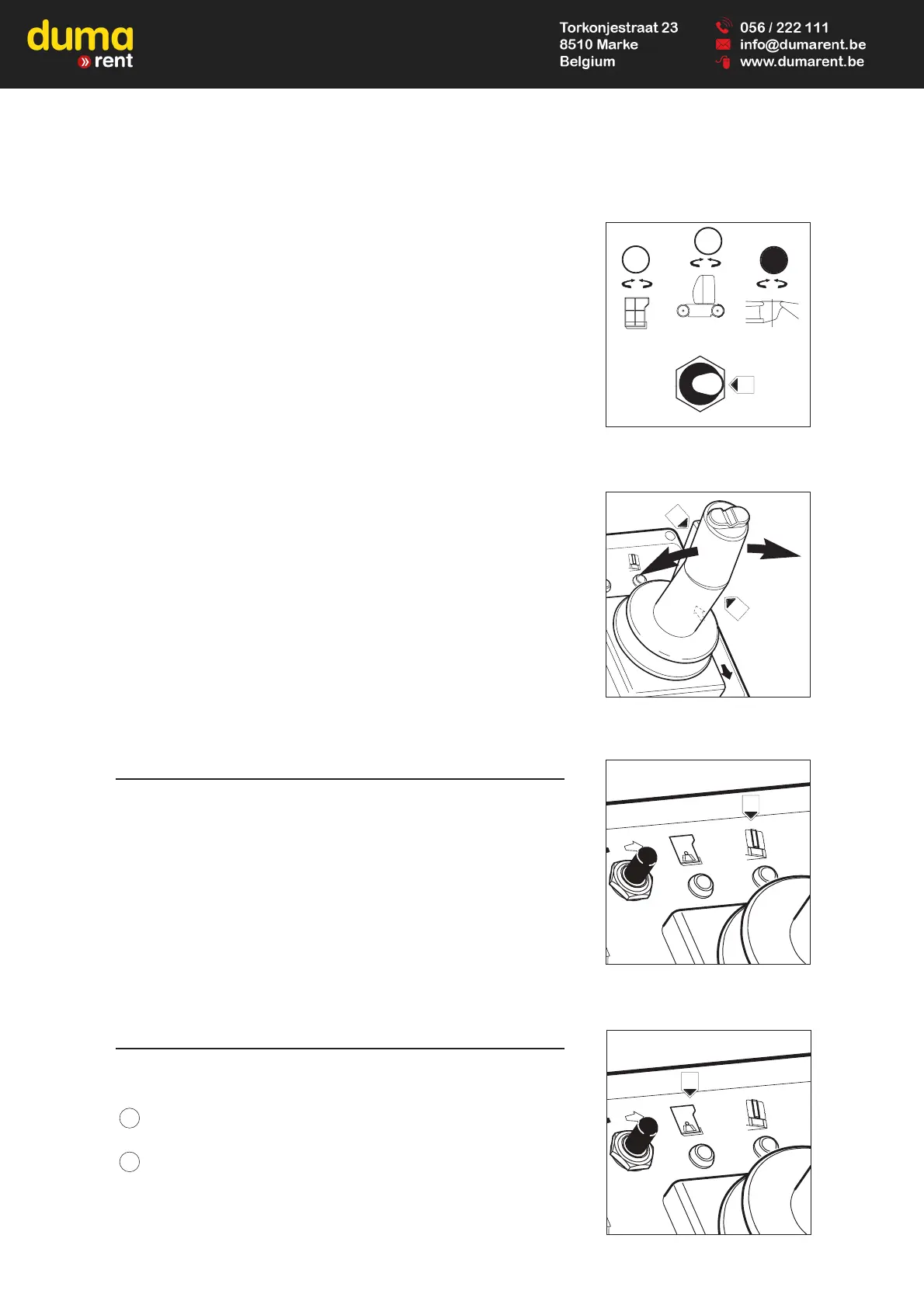

ROTATION OF ROTATED JIB
- Switch the contactor 29 to the right (position C).
- Incline to the right or to the left the contactor 28 in order to rotate on the right
or on the left respectively.
30 - INDICATION LAMP OF THE SLOPE
When the platform reaches the maximum of authorized slope, the led
turns on and the arm lifting movements are blocked.
31 - OVERLOAD LAMP AND VARIATOR DEFECTS
- THIS LAMP HAS TWO FUNCTIONS:
1 In case of overload in the platform, this lamp is on.
2 In case of fault, the number of flashes indicates the type of fault detected
by the variator (See: 4 - Lamp“MAINTENANCE MACHINE” p.2-12).
28
B
A
B
C
30
31
29
