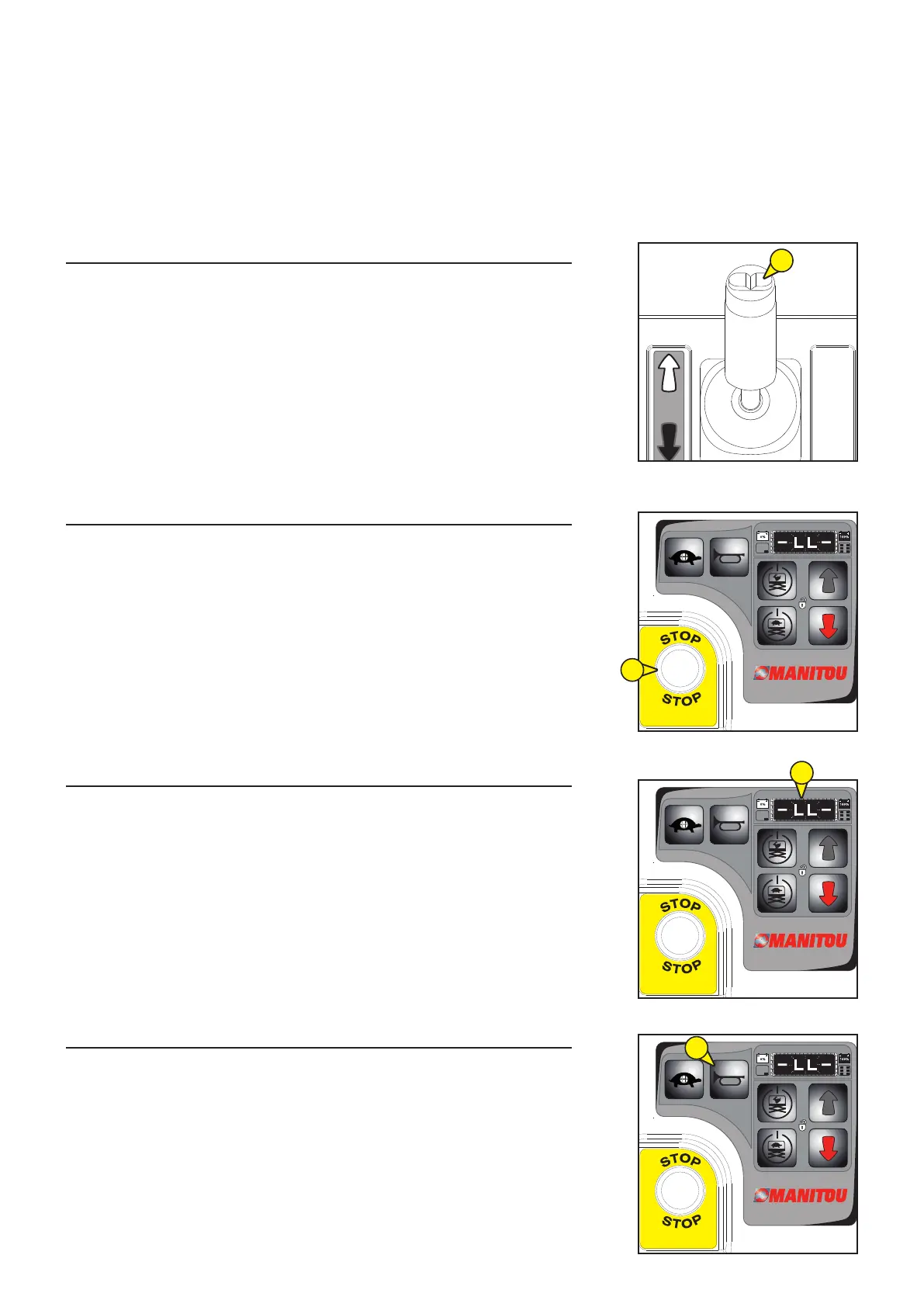

11- STEERING FUNCTION THUMB SWITCH
- Push the thumb switch in a direction to activate the steering function.
12- RED EMERGENCY STOP KNOB
- Push the red Emergency Stop knob to the OFF position to switch off all the machine’s
functions. Pull out the red Emergency Stop knob to the ON position to be able to use
the machine.
13- DIAGNOSTICS DISPLAY
- Diagnostics display, battery charge indicator and lifting platform overload indicator.
14- BUZZER BUTTON
- Push in the buzzer button to activate the buzzer. Release the buzzer button to switch
off the buzzer.
