DORADO COMP 37MM SERVICE GUIDE
SPRING LEG DISASSEMBLY
4

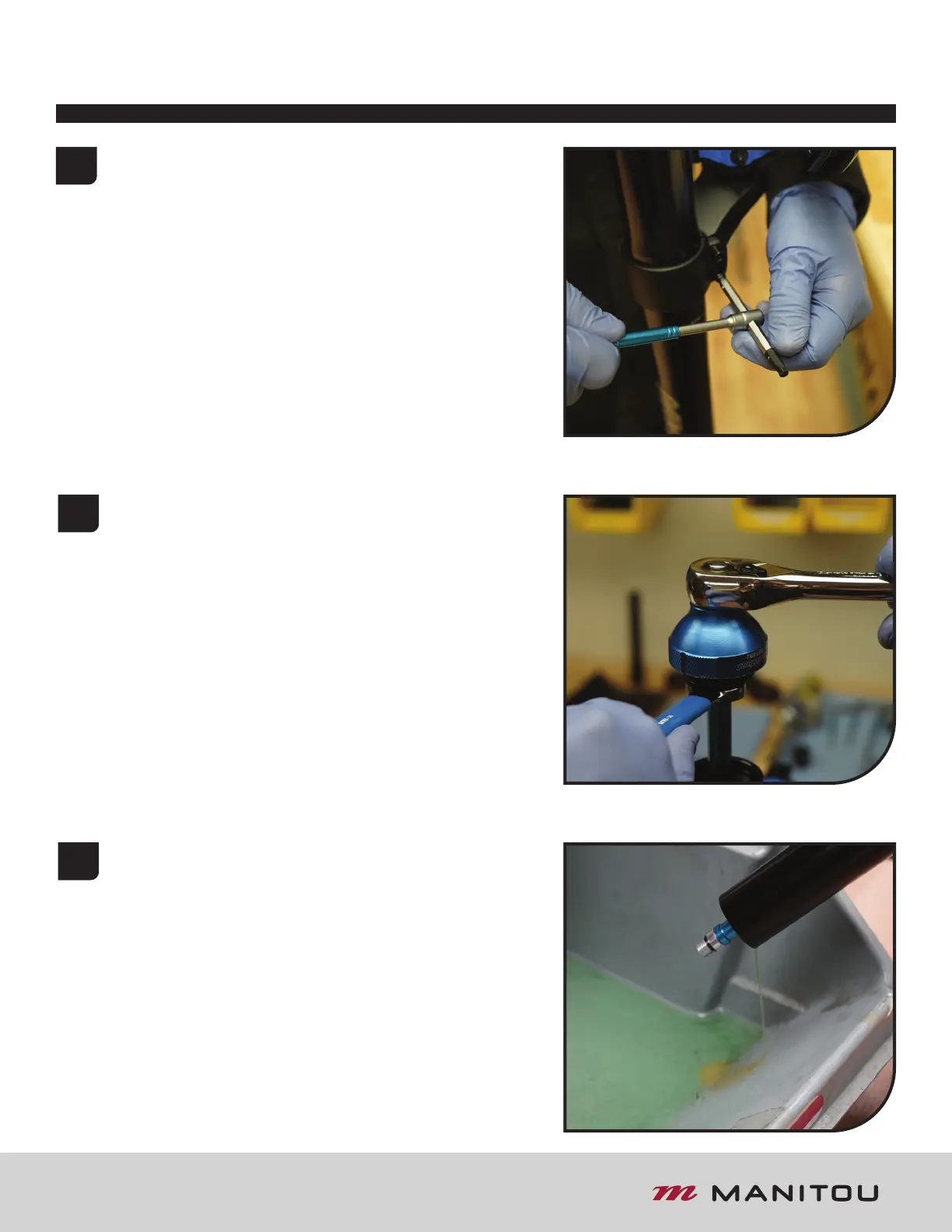

Loosen the pinch bolts on the lower crown, and
remove the leg from the fork. Be sure not to
misplace the frame bumper that will need to
come o the fork leg.
TIP: The ends of the Dorado sag guide can be
used to spread the clamps apart and aid in leg
removal.
5
6
Lightly clamp the fork leg in a bike stand. Remove the
top cap from the leg with a 16 notch Bottom Bracket
Tool. Remove the top cap from the compression rod with
a 14mm wrench on the top of the compression rod and a
16 notch Bottom Bracket Tool.
Pour the fluid out of the leg, and slide the inner leg out
of the outer leg. Remove the outer leg from the stand
and let it sit above a drainage pan.
To Next Page
