3 - CHANGING OIL IN FRONT AND REAR WHEEL FINAL DRIVES
Empty the front wheel final drivers.
Position the truck on level ground, with the engine off and the oil
in the final drives still hot.
Make sure the drain and level plug “1” (Fig. E3) is pointing down-
wards “A” to facilitate oil flow.
Place a container “2” (Fig. E3) under the drain plug and unscrew
it.
Drain out all the oil.
Turn the outlet hole to horizontal position “B”, to check the oil
level subsequently.
Fill with oil (see "LUBRICANTS") through level hole “3” (Fig. E3).
The level is correct when the oil reaches the top of hole “3” (Fig.
E3).
Refit drain plug “3” (Fig. E3) and tighten it.
Repeat the operation for all the final drives.
E
E
4
4
- CHANGE THE OIL IN THE FRONT AXLE REDUCTION GEAR
Set the truck on a horizontal surface with the engine off and the
oil in the reduction gear still hot. Place a receptacle under drain
plug “1” (fig. E4).
Remove plug 1 and allow the oil to drain out.
Remove fill and level plug “2” (fig. E4) to ensure that all oil
has drained out.
Refit and tighten plug “1” (fig. E4).
Fill with oil (see “LUBRICANT” chart) through fill and level plug
“2” (fig. E4).
The level is correct when flush with the top of the hole.
Refit and tighten the fill and level plug “2” (fig. E4).
Check for any leaks from the drain plug.
MHT 10120 L M
Series
3
24

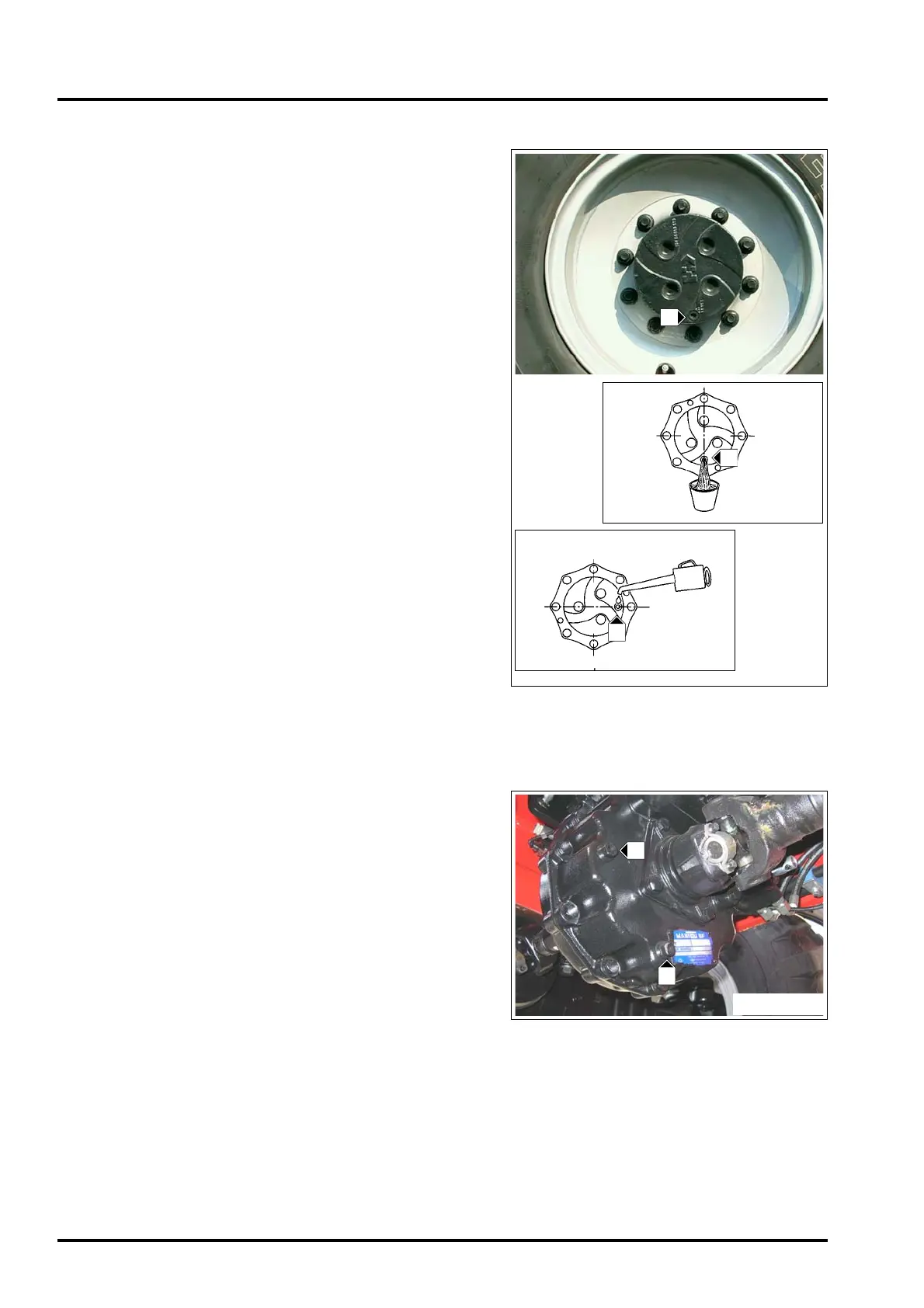

FIG. E3
1
A
2
B
3
FIG. E4
1
2
