Manitou M Turbo Series User Manual

10
2
MHT 10120 L M
Series
3
3
-
-

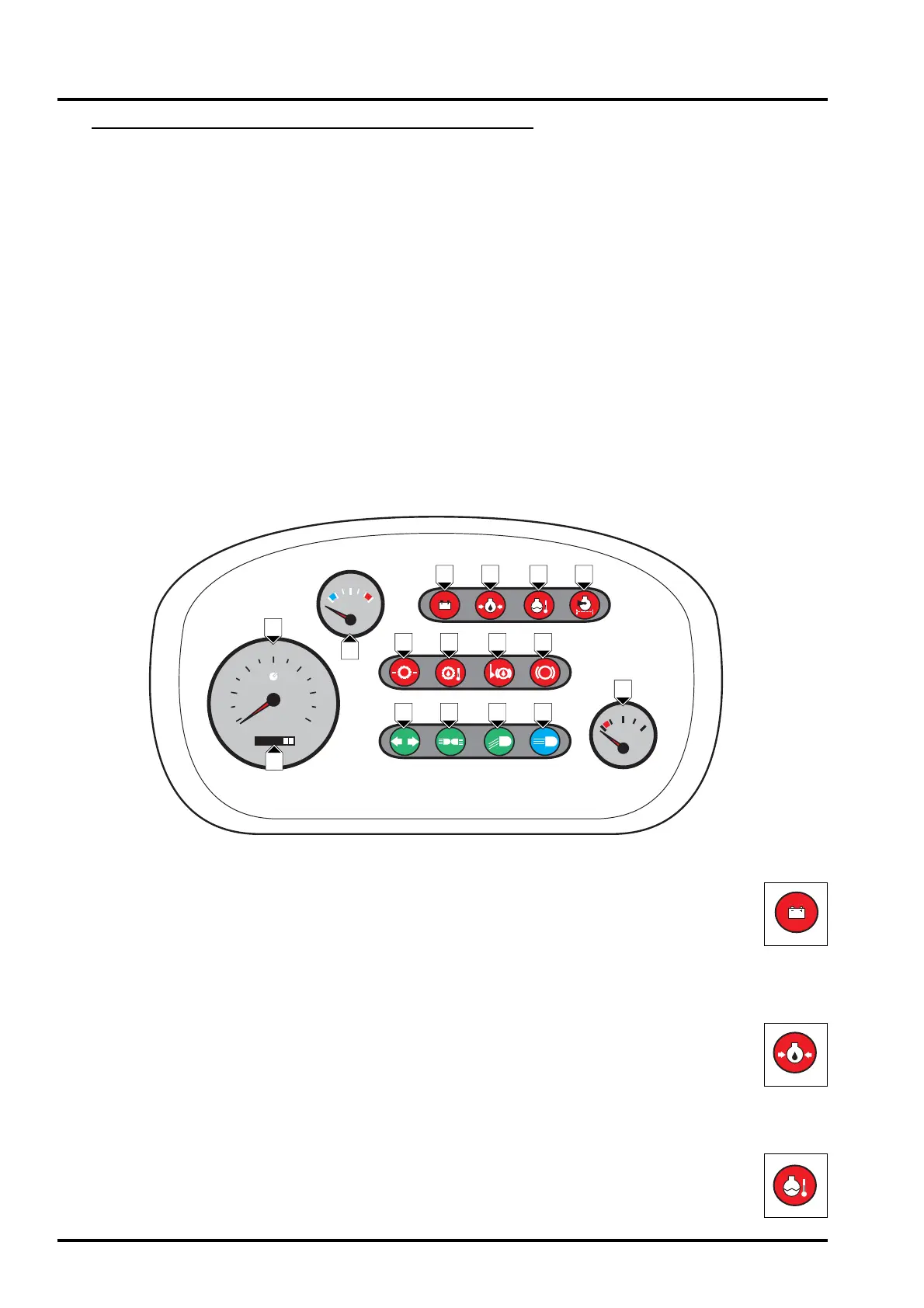

MONITORING INSTRUMENT AND INDICATOR LIGHT PANEL
A - Red alternator excitation light.
B - Red engine oil pressure light.
C - Red engine water temperature light.
D - Red air filter fouling indicator light.
E - Red Mercedes engine alarm light.
F - Red engine oil level light.
G - Red brake fluid level light.
H - Red parking brake light.
I - Green direction indicator light.
L - Green dipped headlight light.
M - Green side-light light.
N - Blue full-beam headlight light.
O - Rpm-counter.
P - Hour-counter.
Q - Fuel level gauge.
R - Engine water temperature.
A – RED ALTERNATOR EXCITATION LIGHT
If lights A-B-C-D-F-G and the buzzer are activated during operation of the fork-lift truck, stop the
engine immediately and check the electrical system and the fan-belt.
B – RED ENGINE OIL PRESSURE LIGHT
If the light and buzzer are activated during operation of the fork-lift truck, stop the engine immediately
and look for the origin of the fault. (See oil level in engine pump).
C – RED WATER TEMPERATURE INDICATOR LIGHT
If the light and buzzer are activated during operation of the fork-lift truck, stop the engine immediately
and look for the origin of the fault in the cooling circuit.
P
0
4/4
1/2
TANK
RPM x 100
electronic
5
10
15
20
25
30
0000
5
0 2
°C
°F
12040
60 100
80
175
105 250
P
R
A B C D
E
O
F G H
Q
I L M N
INTRODUCTION TO SAFETY
